TRANSPORTATION OPERATION
3-106

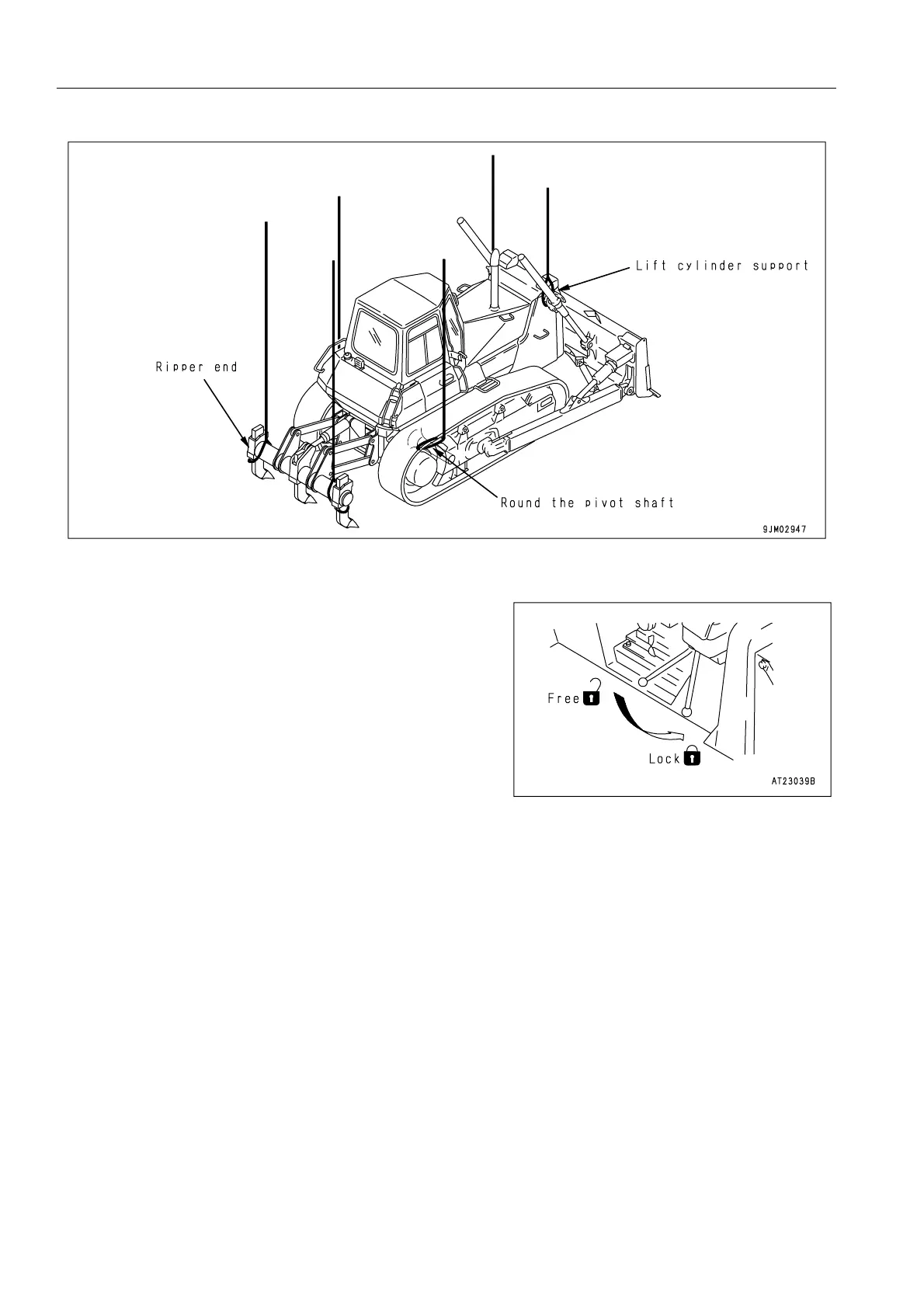

For machine equipped with ripper
When lifting the machine, stop it on a level place, then observe the following procedure.
1. Stop the engine and set the brake lock lever to the LOCK
position.
2. Install wire ropes, slings, etc. matched to the weight of
the machine to the lifting points as shown in the above
figure.
NOTICE
● Use protectors, etc. so that the wire ropes will not be
broken at sharp edges or narrow places.
● Use sleds and bars having sufficient width so that they
will not touch the machine.
3. After setting the wire ropes, lift up the machine and stop at 100 to 200mm (3.9 to 7.9in) above the ground,
and check that the wire ropes are not slack and the machine is horizontal, then lift up slowly.
To Next Page
