OPERATION EXPLANATION OF COMPONENTS
3-15

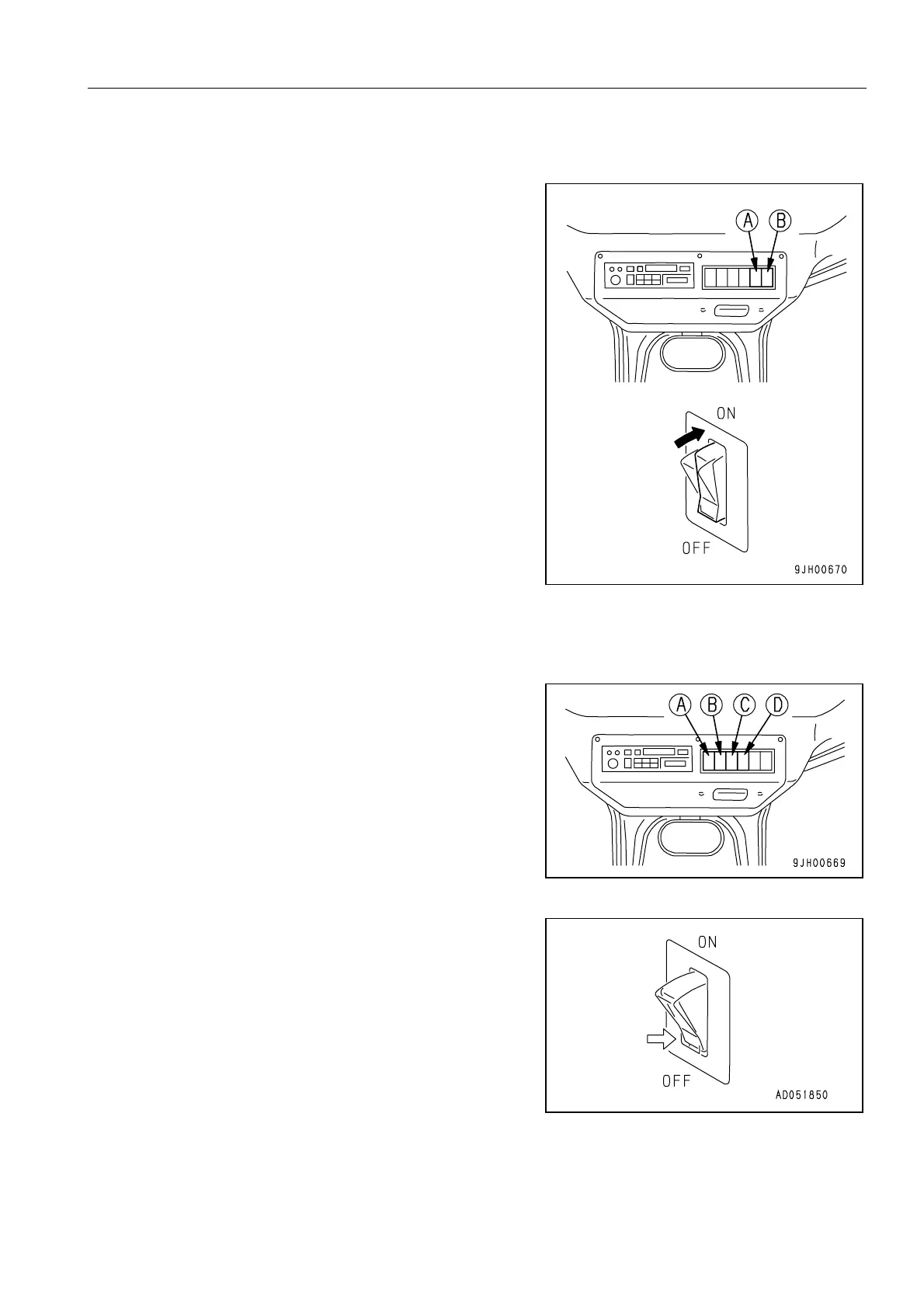

ADDITIONAL WORK LAMP SWITCH
(Machine equipped with cab) (If equipped)
This switch (6) is used to turn on the additional working lamp.
(A)Head lamp switch
(B)Rear lamp switch
Push in the direction of the arrow to turn on the lamps.
WIPER SWITCH
(Machine equipped with cab)
This switch (7) activates the wipers.
The wiper switches are as follows.
(A)Left door
(B)Front window
(C)Right door
(D)Rear window
This is also used as the window washer switch.
The switch is operated as follows.
● Window washer only
Keep the switch pressed to the OFF position to spray out
water.
To Next Page
