TORQFLOW TRANSMISSION DISASSEMBLY AND ASSEMBLY
40-30 EX20 Series
2) Assemble the F/R clutch shaft sub assembly.
Assemble the 1st/2nd and 3rd clutch shaft
sub assemblies first, then assemble the F/R
clutch shaft sub assembly.

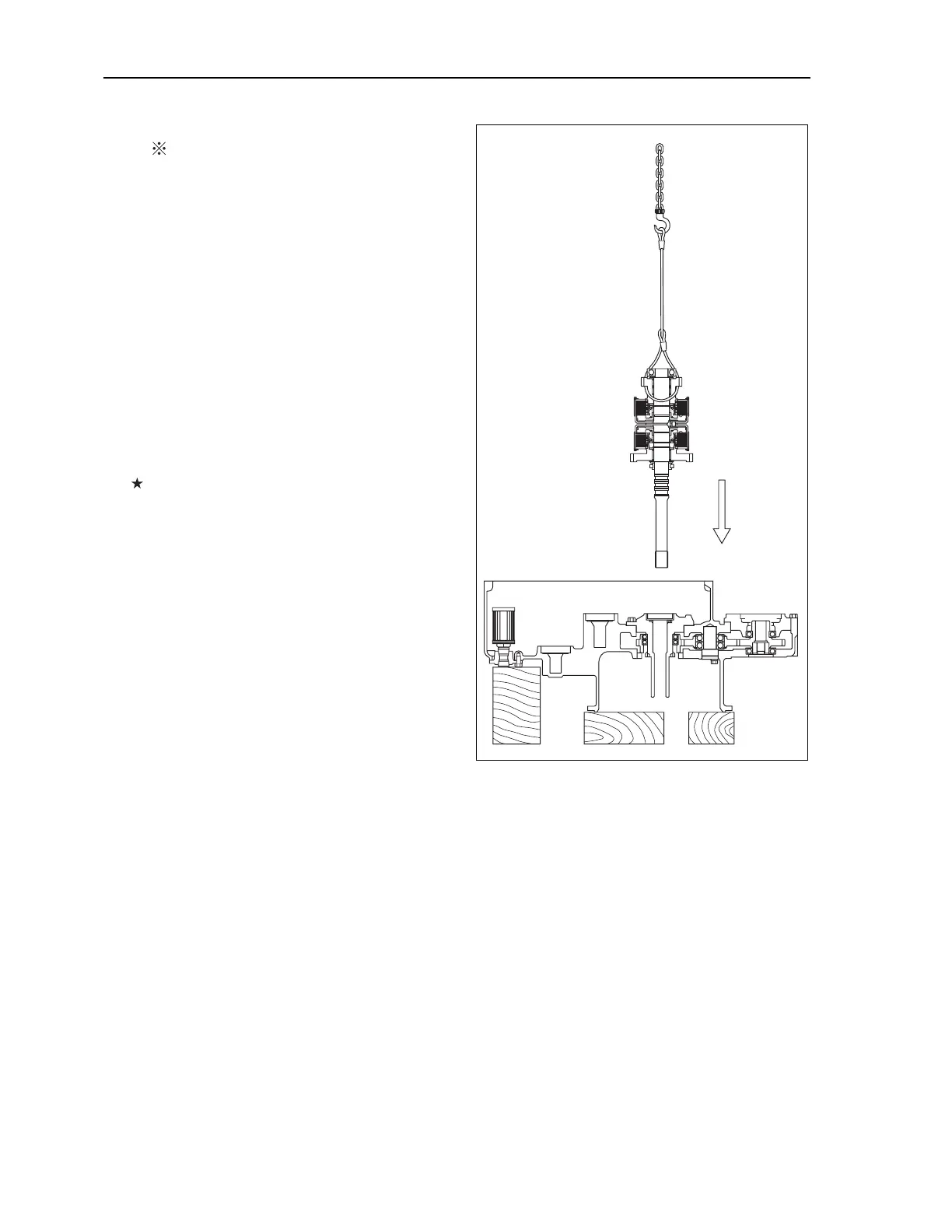

• Wind a wire around the reverse clutch shaft.
• Fit the lifting equipment to the eyebolt.
• Raise slowly and set in position above the torque
converter case.
• Lower the assembly slowly and check that the tip
of the shaft sub assembly is facing the center of
the shaft hole in the torque converter case.
• Be careful of the position of the seal ring, and
insert (lower) the sub assembly shaft into the
stator shaft.
• Be careful to mesh with the gears of the 1st/2nd
shaft sub assembly, and insert the sub assembly
fully at the point where the gears mesh.
For safety reasons, always use a hoist.
Lifting equipment
(Hoist)
F/R
Torque converter
To Next Page
