DISASSEMBLY AND ASSEMBLY TILT CYLINDER
EX20 Series 40-65
(lifting height: 3 m)

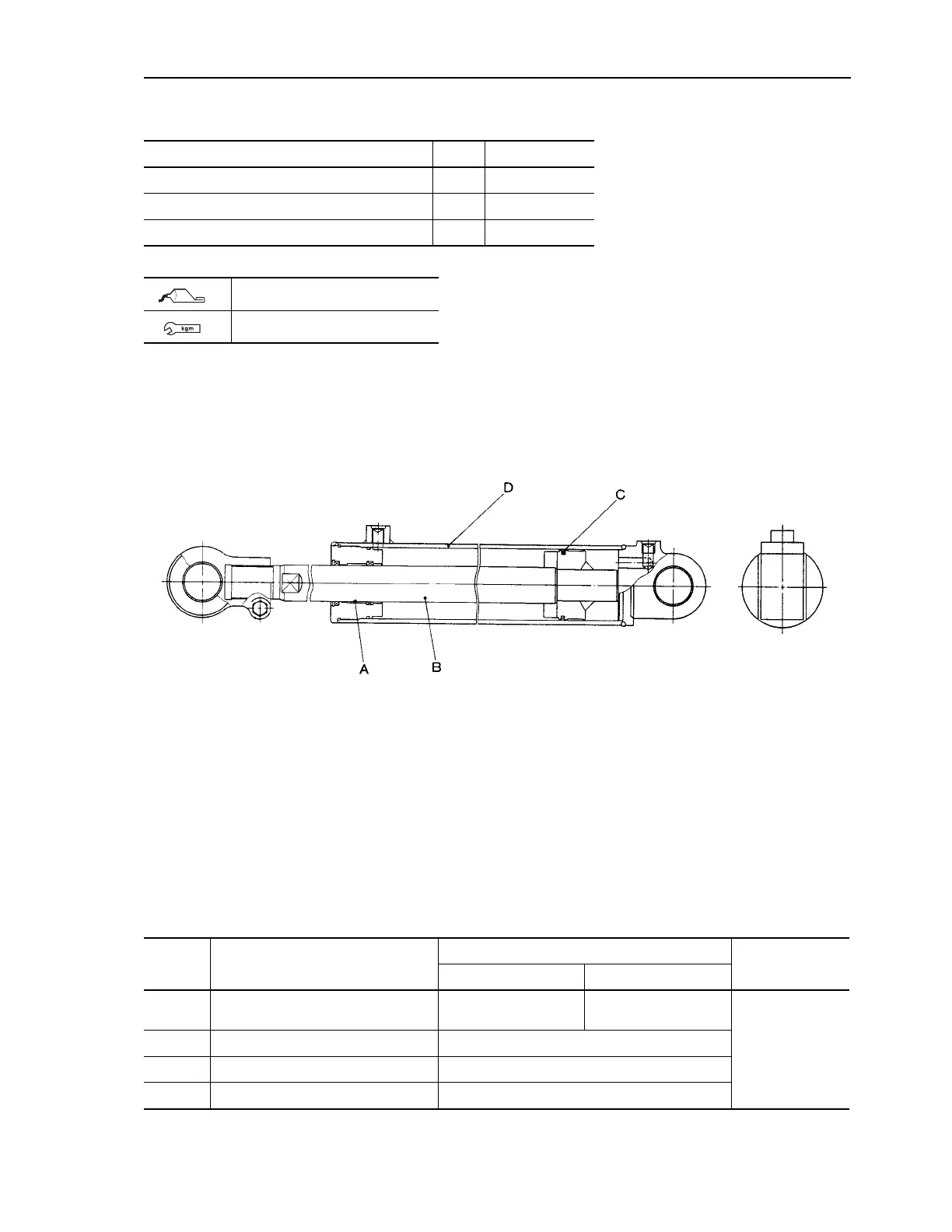

INSPECTION
Item Unit FD100–160E
Cylinder (inside diameter × outside diameter) mm 125 × 142
Stroke mm 240
Outside diameter of rod mm 60
Three Bond # 1901
910–1110 Nm {93–113.3 kgm}
Symbol Inspection item
Judgement standard
Remedy
Standard size (mm) Repair limit (mm)
A
Clearance between piston rod and
bushing
0.036–0.267 0.567
Replace
B
Piston rod Scratches that catch finger nail, dents, hollows
C Piston ring Scratches that catch finger nail
D Cylinder Scratches that catch finger nail, hollows
