FOREWORD HANDLING ELECTRIC AND HYDRAULIC EQUIPMENT
00-24 b WA320-6
★ Injection pressure control valve of fuel supply pump: PCV
(SUMITOMO-2)
★ Speed sensor of fuel supply pump: G (SUMITOMO-3)
★ Pull the connector straight up.
Turn-housing Type (Round Green Connector) 00
★ 140 engine
★ Intake air pressure sensor in intake manifold (CANNON-04):
PIM etc.

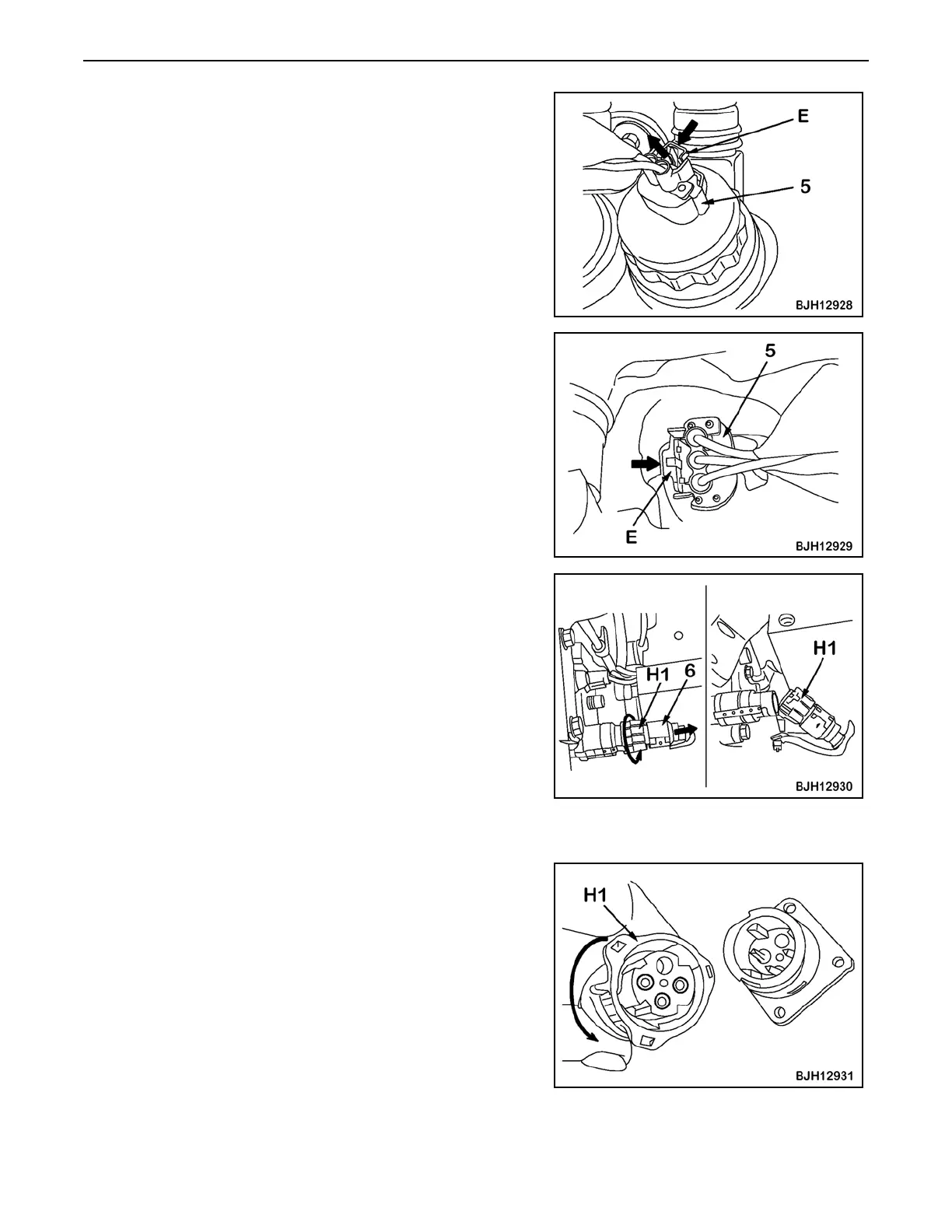

1. Unplug connector (6) according to the following procedure.
A. Turn housing (H1) in the direction of the arrow.
★ When the connector is unlocked, housing (H1) becomes
heavy to turn.
B. Pull out housing (H1) in the direction of the arrow.
★ Housing (H1) is left on the wiring harness side.
2. Plug the connector according to the following procedure.
A. Insert the connector to the end, while setting its groove.
B. Turn housing (H1) in the direction of the arrow until it clicks.
