FOREWORD PUSH-PULL COUPLER
00-30 WA320-6
12
Type 3 00
Disconnection 00

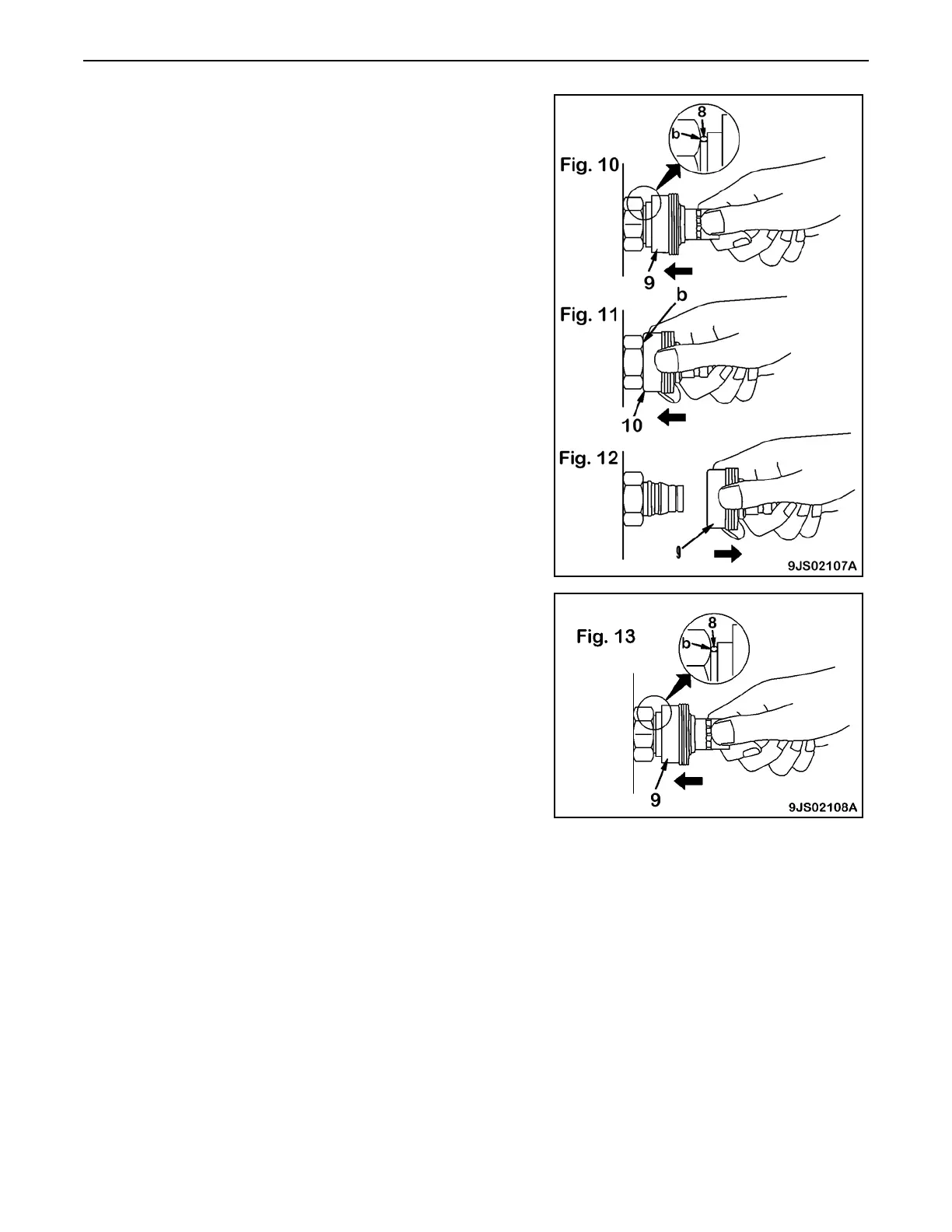

1. Hold the tightening portion and push body (9) in straight until
sliding prevention ring (8) contacts contact surface (b) of the
hexagonal portion at the male end. (Fig. 10)
2. Hold in the condition in Step 1 and push cover (10) straight until it
contacts contact surface (b) of the hexagonal portion at the male
end. (Fig. 11)
3. Hold in the condition in Steps 1 and 2, and pull out whole body (9)
to disconnect it. (Fig. 12)
Connection 00
1. Hold the tightening portion and push body (9) in straight until the
sliding prevention ring contacts contact surface (b) of the hexagonal
portion at the male end. (Fig. 13)
