Connecting the TP-581T, TP-582T and TP-582R
15
5.6 Wiring the RJ-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with
RJ-45 connectors.
Note, that the cable Ground shielding must be connected / soldered to
the connector shield.
EIA /TIA 568B

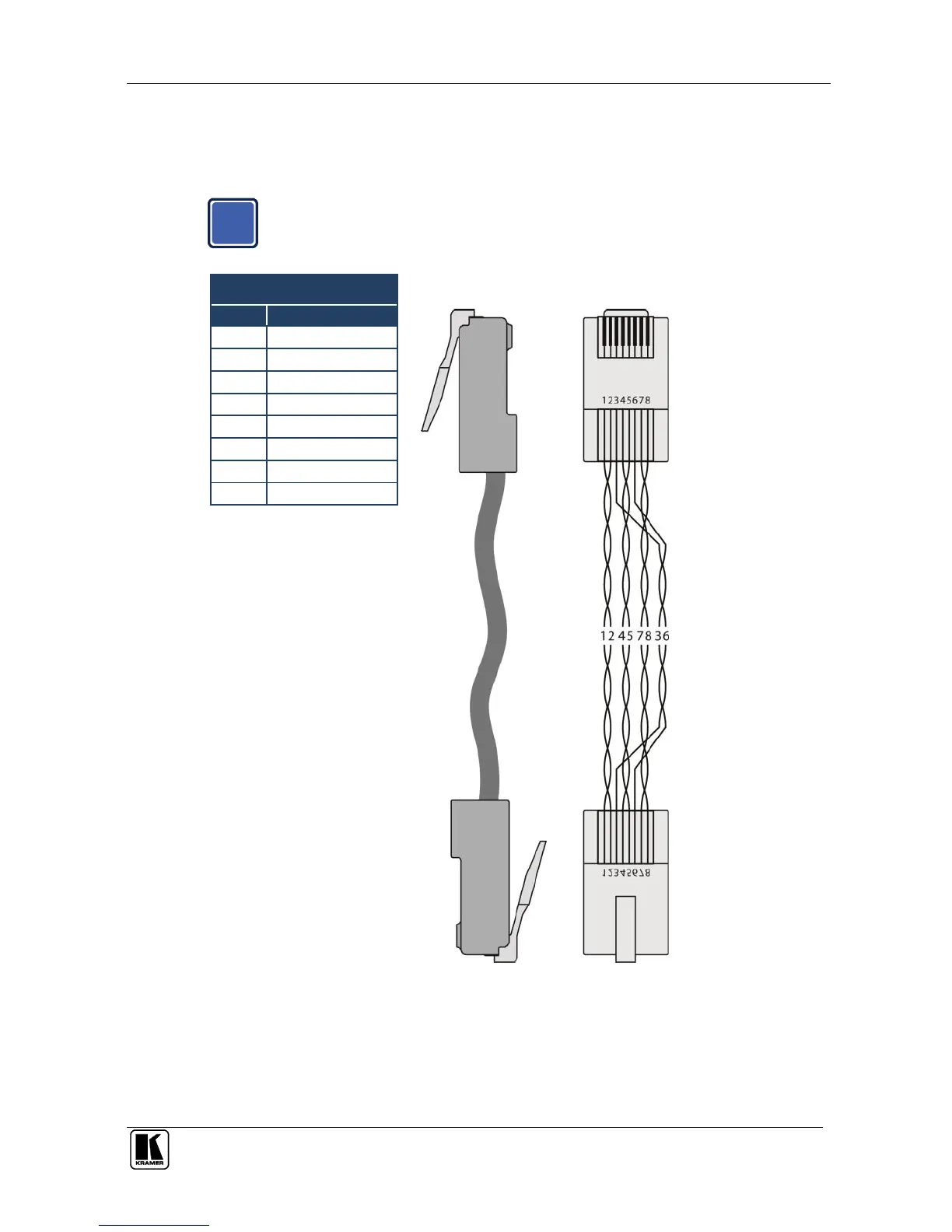

Figure 8: TP PINOUT
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
