Start-up
32
Pos: 48.18 /Üb erschriften/Üb erschriften 3/A-E/ Anschluss der H ydraulikleitu ngen @ 0\mod_ 11997770377 94_78.doc @ 3 4244
6.4.2 Connecting the hydraulic lines
Pos: 48.19 /BA/I nbetriebnahm e/Schwader/Hydr aulikanschluss /Hydraulika nschluss Schw adro 46T @ 7\m od_121567305 0598_78.doc @ 104769
SW46T004
1

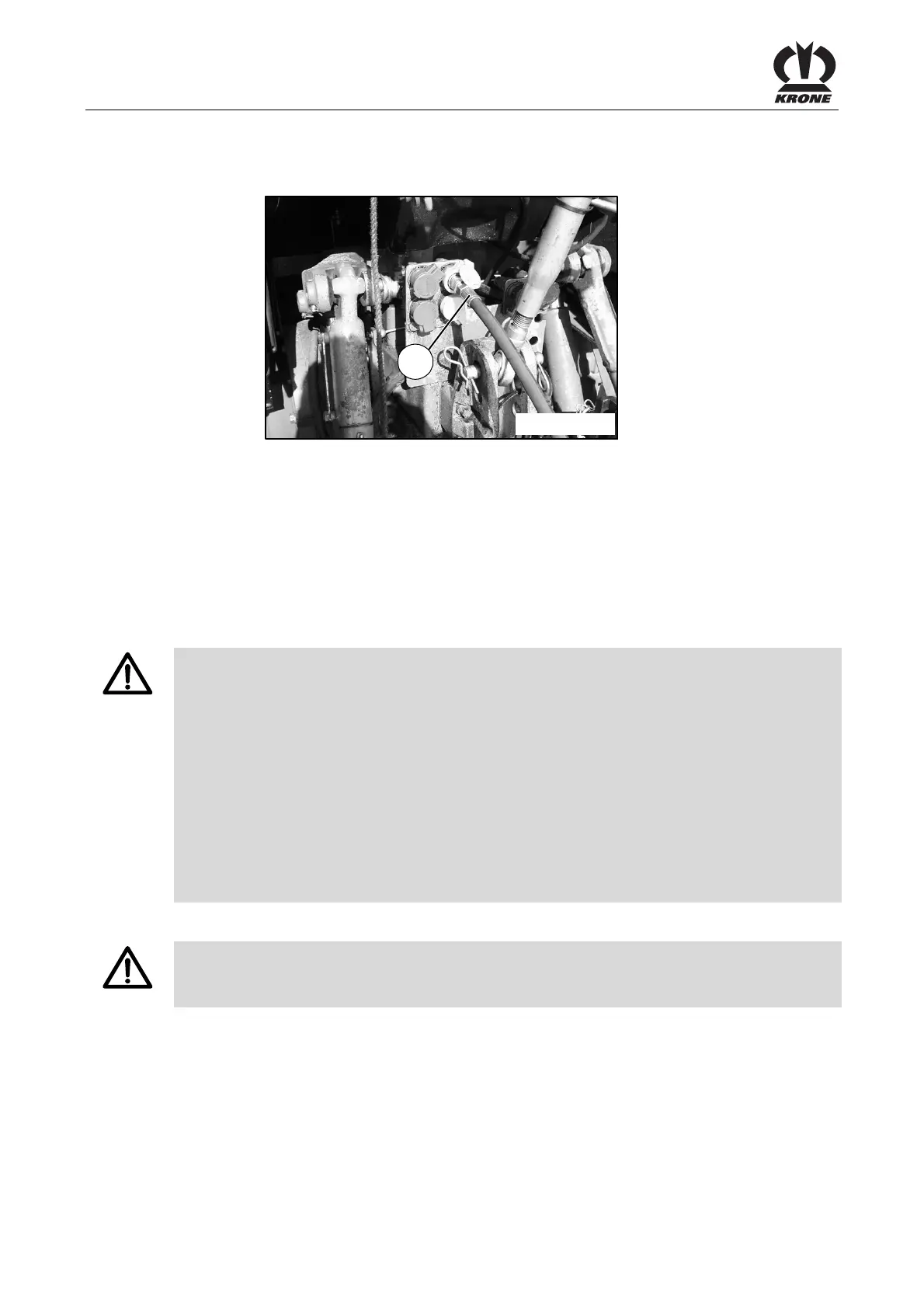

Figure 10:
The following control units are required on the tractor to operate the machine:
The machine requires a single-action control unit on the tractor.
to the single-action control unit:
• red (1)= - lift/lower rotors
Pos: 48.21 /Üb erschriften/Üb erschriften 2/F-J/G elenkwelle m ontieren @ 2\m od_120239 8342788_78.doc @ 59253
6.5 Install the PTO shaft
Pos: 48.22 /BA/Sic herheit/Gelen kwelle/Sich dr ehende Gel enkwelle_2 @ 0\ mod_1199781 692950_78.doc @ 34523
Danger! - Rotating PTO shaft
Effect: Danger to life or serious injuries
• Install or detach the PTO shaft only with the engine switched off and the ignition key
removed.
• Secure the tractor against rolling.
• Make sure that the PTO shaft is coupled properly (the lock of the PTO shaft must have
snapped in).
• Make sure that the protective devices are attached properly.
• Never use a PTO shaft, the protective devices of which have not been attached.
• Replace damaged protective devices immediately
• Attach the safety chain of the PTO shaft so that the guard tube does not rotate
simultaneously with the PTO shaft.
Pos: 48.23 /BA/Sic herheit/Gelen kwelle/Antri ebsdrehzahl 54 0 beachten @ 3\ mod_120531 6518245_78.doc @ 73595
Danger! - Observe drive speed
Effect: Danger to life or serious injuries
• This machine is driven at a maximum PTO speed of 540 rpm.
Pos: 48.24 /BA/-- ---Seitenum bruch------ @ 0\m od_119617531 1226_0.doc @ 4165
