9.2 Adjustable throttles
Pos: 106 /BA/ Einstellungen/Dr ossel/Drossel ( 1) Bild SW 46T @ 7\mod_121 5761020047_ 78.doc @ 105 486
SW46T030
1
a/b

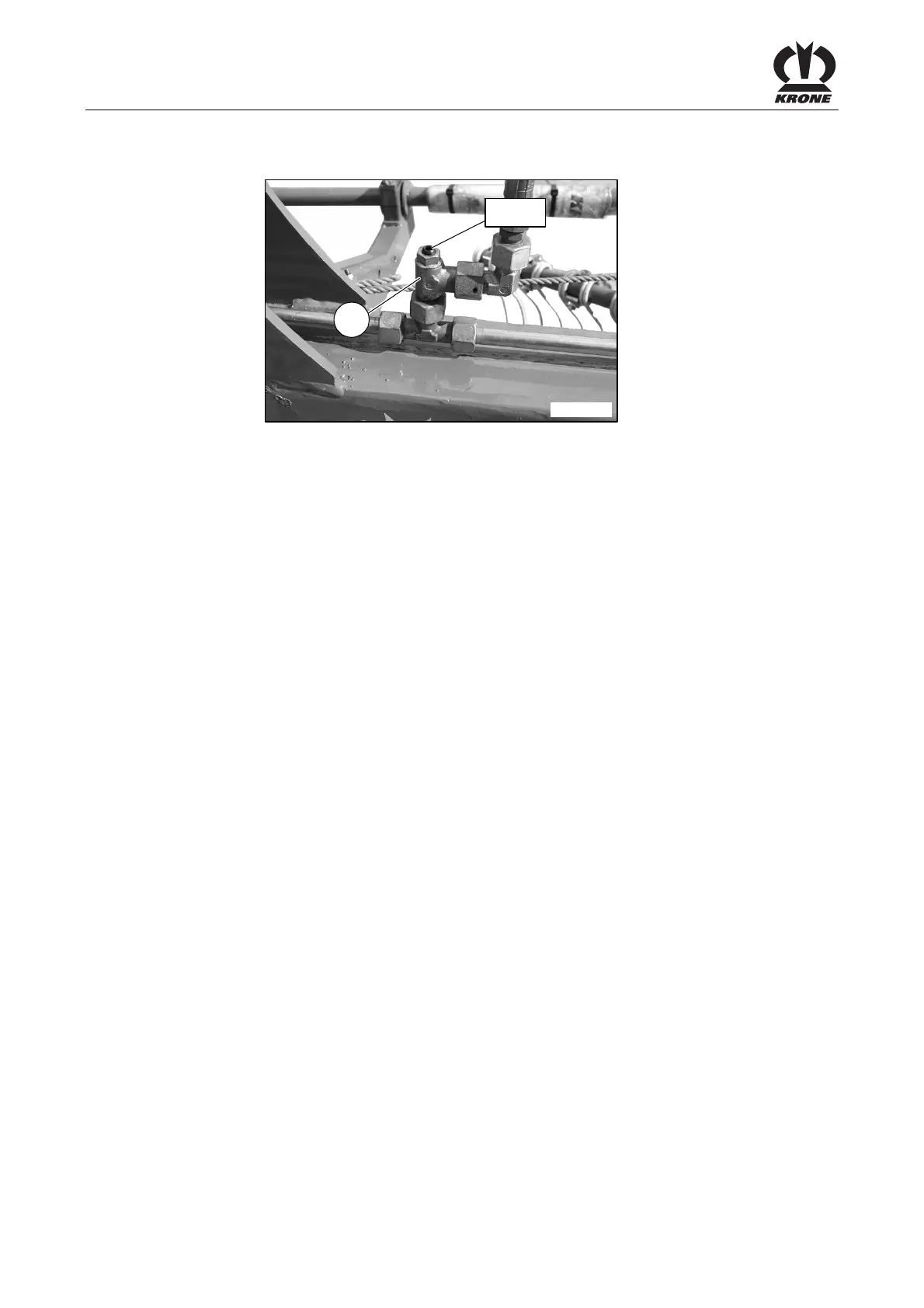

Figure 23:
Pos: 107 /BA/ Einstellungen/Dr ossel/Drossel ei nstellen allg emein SW 46T @ 7\mod_12157 61130703_78. doc @ 10550 6
The adjustable throttle (1) can be used to set the speed at which the offset drawbar is lowered
and lifted.
Pos: 108 /BA/ Einstellungen/Dr ossel/Drossel ( 1) @ 7\mod_1 21552343852 6_78.doc @ 103 337
Throttle (1)
Lifting or lowering speed of the offset drawbar.
• Unscrew the hexagonal nut (a).
• Screw stud screw (b) in or out (screwing it in reduces the flow of oil and thus slows down
the speed at which the offset drawbar is lifted or lowered).
