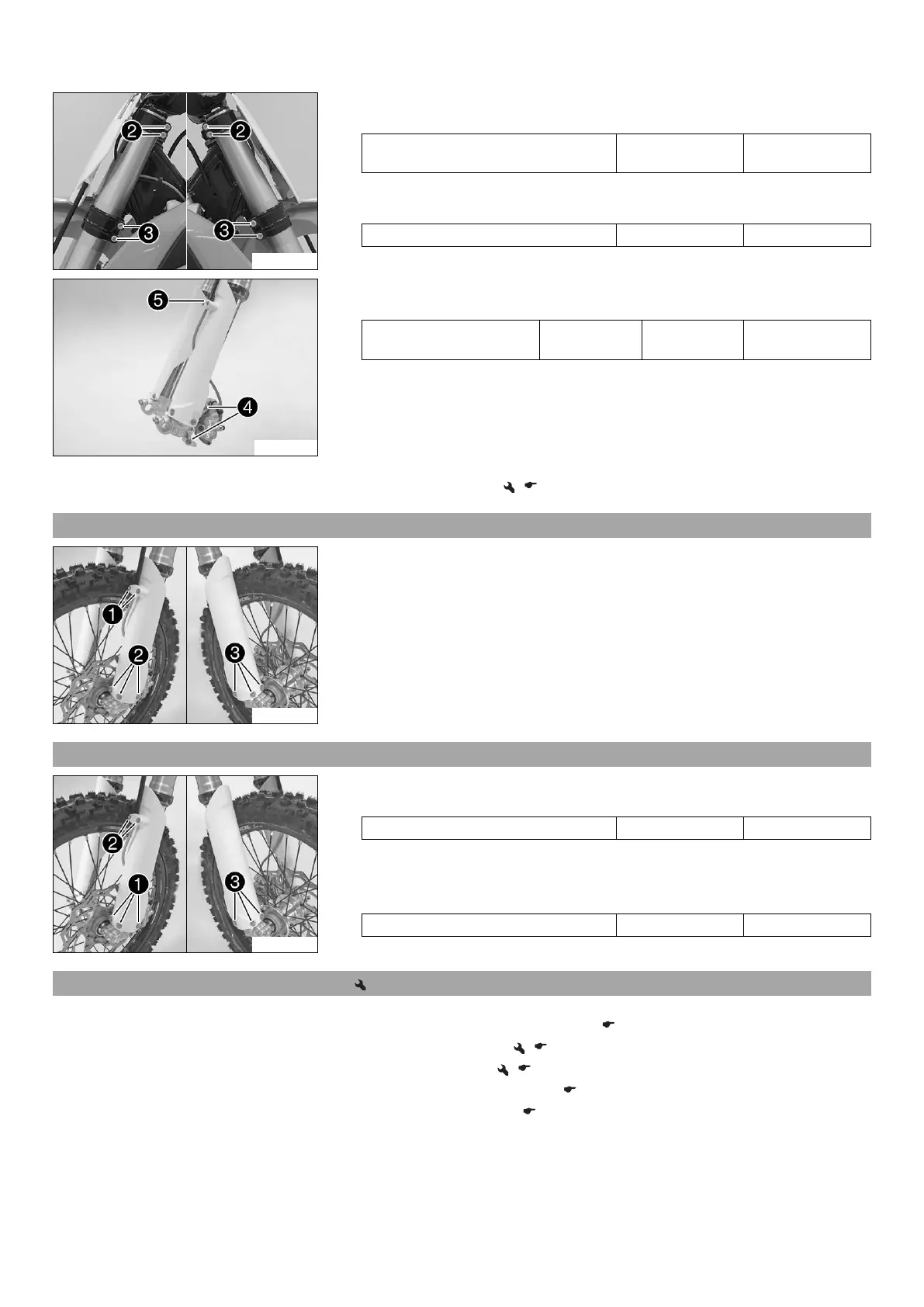

11 SERVICE WORK ON THE CHASSIS 47
M01135-11
–
Tighten screws
.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
–
Tighten screws
.
Guideline
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft)
102149-11
–
Position the brake caliper. Mount and tighten screws
.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
–
Position the brake line and clamp. Mount and tighten screws
.
Finishing work
– Install the front wheel. ( p. 84)
11.7 Removing the fork protector
M01116-10
–
Remove screws
. Remove the clamp.
–
Remove screws
. Take off the left fork protector.
–
Remove screws
. Take off the right fork protector.
11.8 Installing the fork protector
M01116-11
–
Position the fork protection on the left fork leg. Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
–
Position the brake line and clamp. Mount and tighten screws
.
–
Position the fork protector on the right fork leg. Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
11.9 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 44)
– Remove the front wheel. ( p. 84)
– Remove the fork legs. ( p. 46)
– Remove the start number plate. ( p. 51)
– Remove the front fender. ( p. 52)
– Remove the handlebar cushion.
