8 ERGONOMICS
146
Info
Turn the adjusting screw clockwise to increase the
distance between the hand brake lever and the han-
dlebar.
Turn the adjusting screw counterclockwise to decrease
the distance between the hand brake lever and the han-
dlebar.
The range of adjustment is limited.
Only turn the adjusting screw by hand, and do not use
force.
Do not make any adjustments while riding.

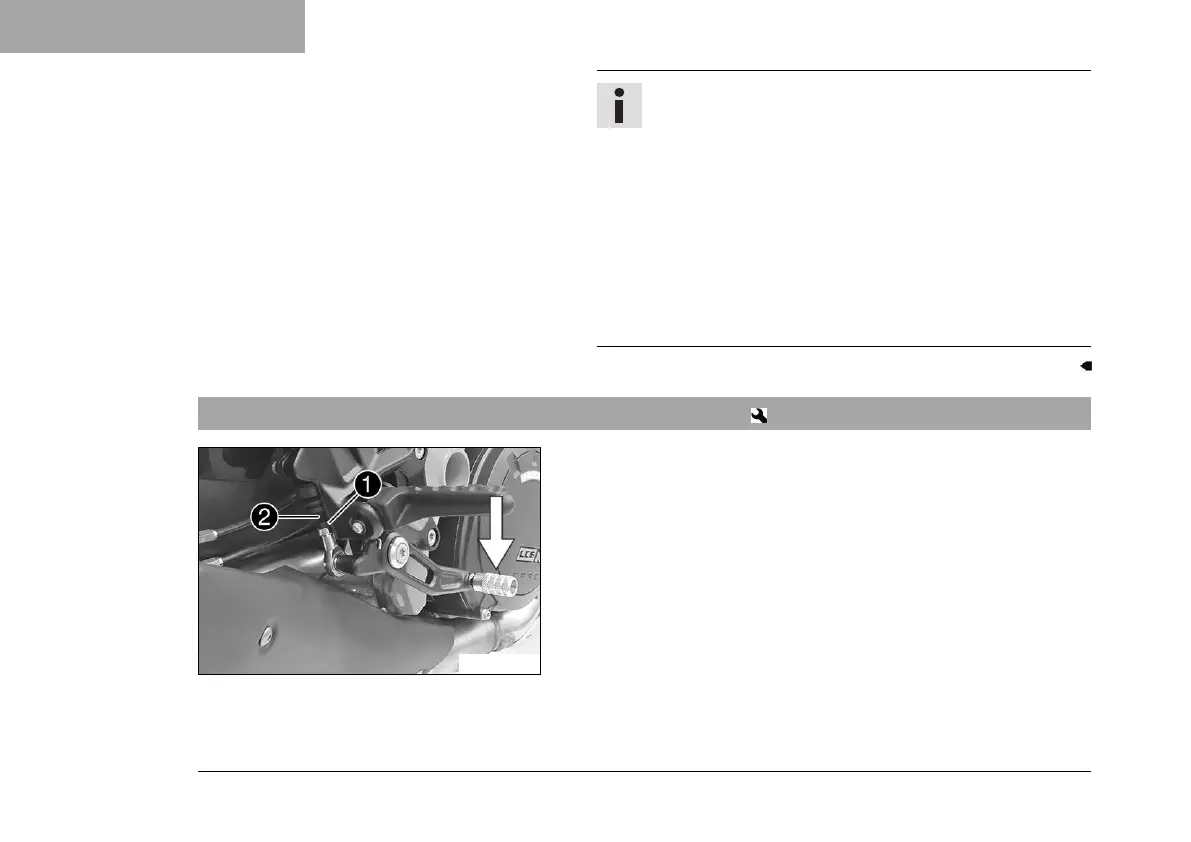

8.8 Adjusting the basic position of the foot brake lever
F01224-10
–
Loosen nut
1
.
–
Press the foot brake lever down to be able to turn push rod
2
more easily.
– Turn the push rod until the foot brake lever is in the desired
position.
