Fuses for individual power consumers
A fuse box is mounted under the seat containing additional fuses that protect the individ-
ual electric power consumers.

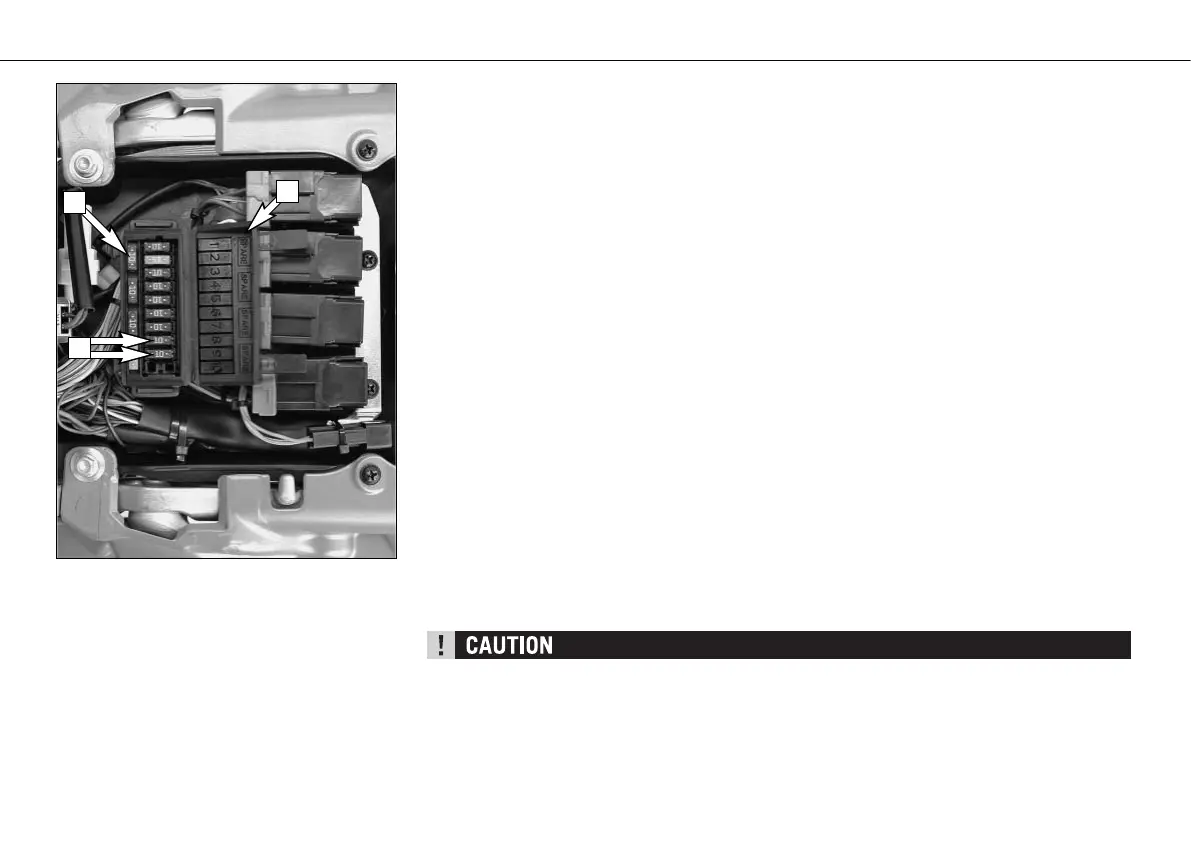

The power consumers are listed numerically on the cover of the fuse box [1] and allocated
as described below. Spare fuses [2] with 10 and 15 amperes are also found in the fuse box.
NO CONSUMER AMPERES
1 . . . . . . . . . Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 . . . . . . . . Light (high beam, low beam, parking light) . . . . . . . . . . . . . . . . . . . . .15
3 . . . . . . . . . Horn, brake light, combined instrument . . . . . . . . . . . . . . . . . . . . . . .10
4 . . . . . . . . . Fuel pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5 . . . . . . . . . Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
6 . . . . . . . . . Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
7 . . . . . . . . . Main relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
8 . . . . . . . . . ACC1 for attachments (switched with the ignition) . . . . . . . . . . . . . . . .10
9 . . . . . . . . . ACC2 for attachments (positive supply) . . . . . . . . . . . . . . . . . . . . . . . .10
10 . . . . . . . . –
SPARE . . . . . Spare fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 15
Replace a blown fuse only with an equivalent one. If a new fuse that has just been set in
gets blown again, you are strongly advised to have it inspected by a KTM dealer.
Under no circumstances is a stronger fuse allowed to be set in or a fuse allowed to be “repaired”.
An inexpert treatment could damage the whole electrical installation!
The ACC1 and ACC2 fuses [3] are designed for attachments with a maximum power con-
sumption of 10 amperes. The respective connector for this equipment is located in the head-
light mask. Ask your authorized KTM workshop for details.
