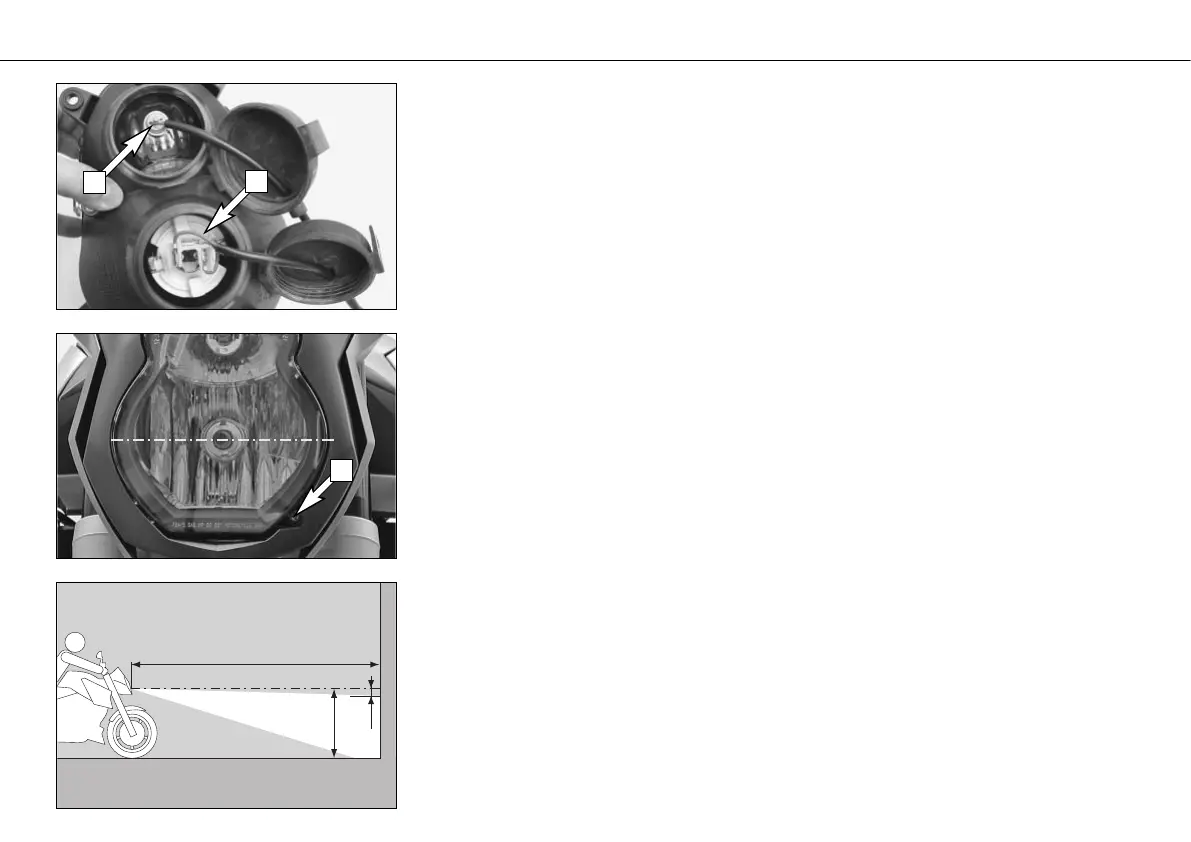

Adjusting the headlight range
The payload can make it necessary to correct the headlight range.
The headlight range can be adjusted with the adjusting screw [1]. Turning in a clockwise
direction will increase the headlight range, turning in a counterclockwise direction will
reduce the headlight range.
CONTROL:
Make a mark on a light colored wall behind a horizontal surface, at the height correspon-
ding to the center of the headlight. Position your motorcycle 5 meters (16.4 ft) from the
wall in a fully loaded condition (baggage, driver, passenger) and switch on the low beam.
The light/dark cut-off should be 5 cm (2 in) under the mark (see drawing).
MAINTENANCE WORK ON CHASSIS AND ENGINE »
58
5 m
x
5 cm
1
E
F
USA design:
The parking light [E] is located in the upper part of the headlight in the USA design. Bulb
[F] (see Technical specifications – Chassis / Lighting) with high and low beams is mounted
in the lower part of the headlight.
Connect the connectors to the connector support to check all of the bulbs for proper func-
tioning before you remount the headlight.
