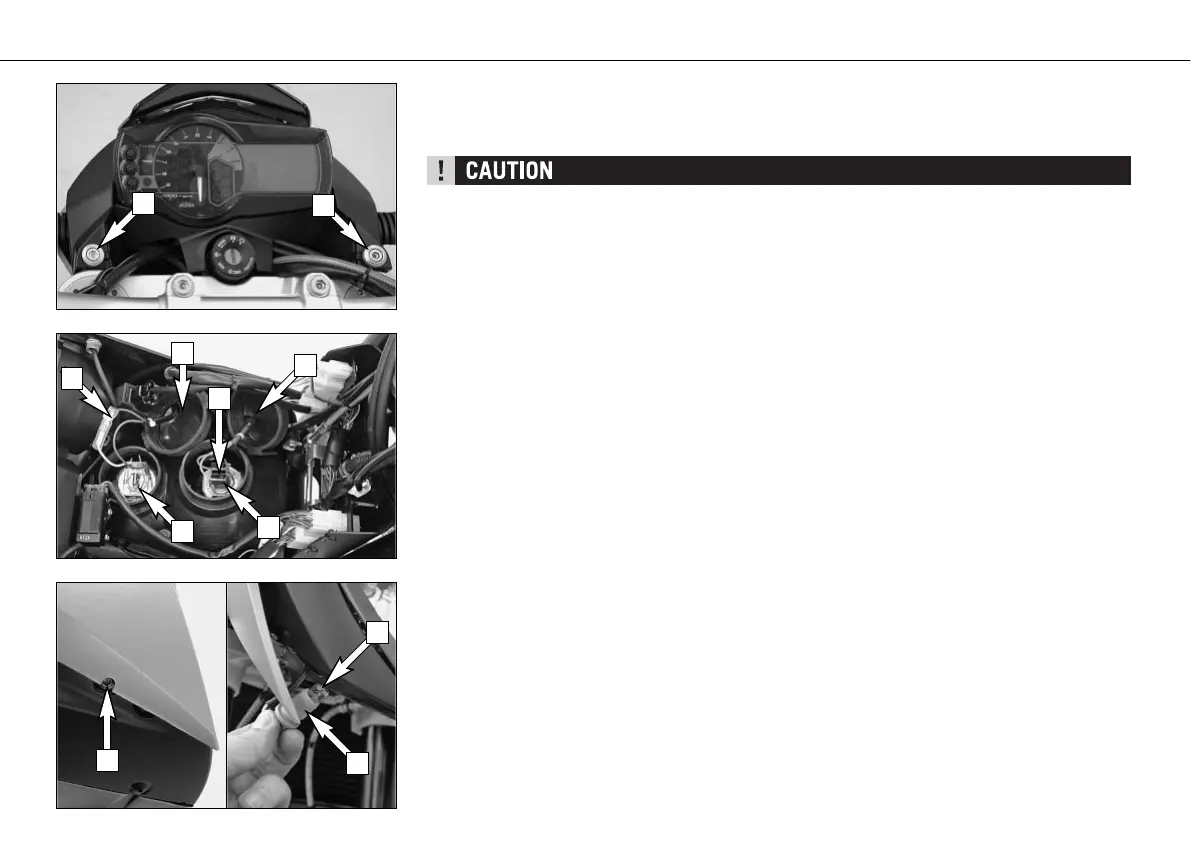

Replacing the headlight lamp
Remove the screws [1] on the left and right and tilt the headlight mask down towards the
front.
Never touch the glass of the bulb with your fingers. The glass of the bulb must remain absolutely
free from grease. Heat will otherwise cause the grease to evaporate and settle down on the
reflector.
BULB FOR HIGH BEAM [A]:
Remove the rubber cap [2] and pull off the connector [3]. Detach the retaining clip and
remove the bulb.
Insert a new bulb, attach the retaining clip, connect the connector and mount the rubber
cap.
BULB FOR LOW BEAM [B]:
Remove the rubber cap [4] and pull off the connector [5]. Detach the retaining clip and
remove the bulb.
When you insert the new bulb, make sure the tab fits in the corresponding recess in the
socket.
Attach the retaining clip, connect the connector to the bulb and mount the rubber cap.
PARKING LIGHT BULB [C]:
Loosen the AH screw SW4 [6] and push the right mask spoiler aside. Pull out the bulb socket
[7] and pull the light bulb out of the socket.
Mount the light bulb in the reverse order.
