KTM 250 EXC 2023 User Manual

SERVICE WORK ON THE CHASSIS 12
77

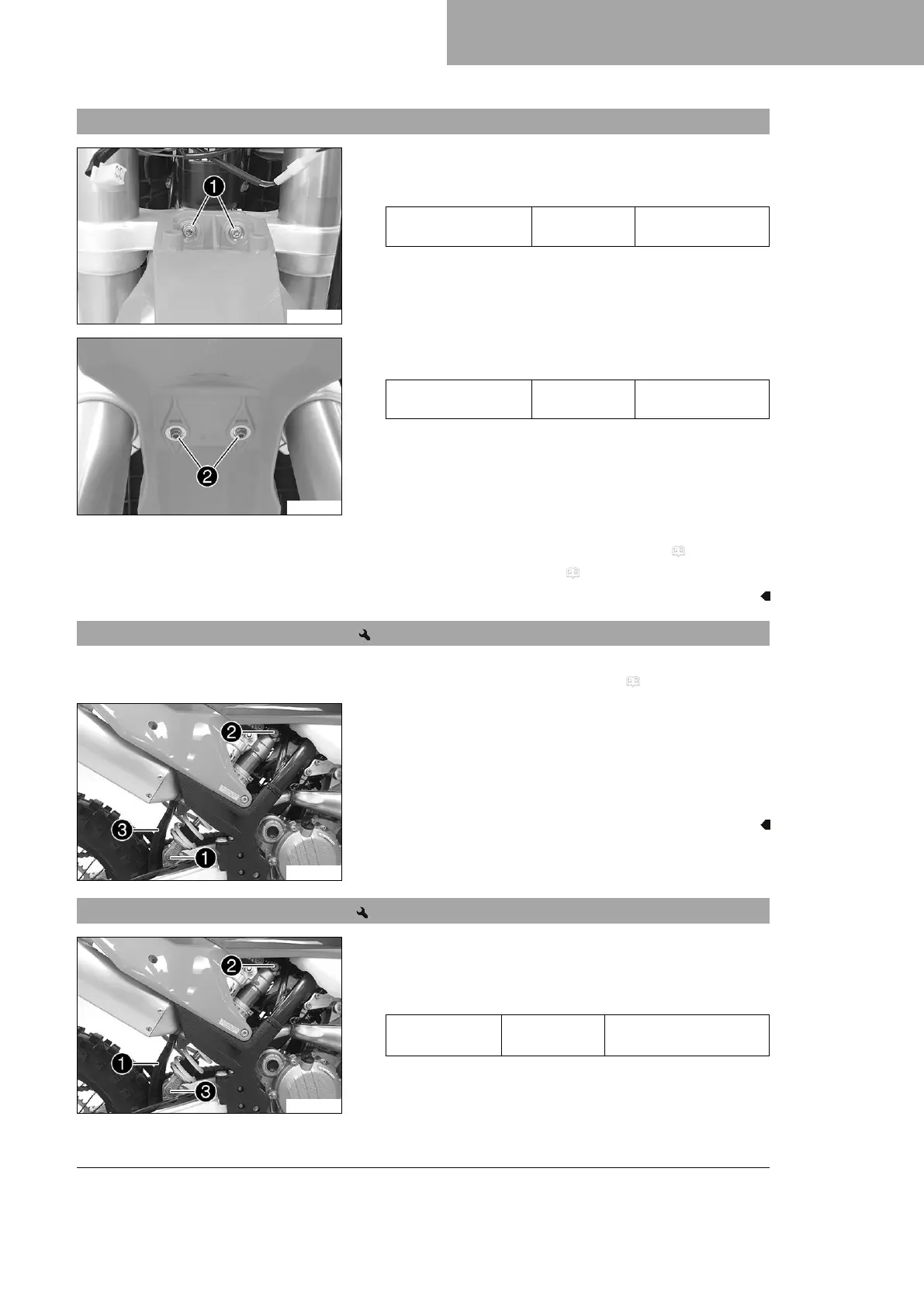

12.17 Installing front fender
V00341-11
Main work
–
Position front fender. Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V00340-11
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the headlight mask with the headlight. ( p. 124)
– Check the headlight setting. ( p. 126)
12.18 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 64)
S03479-10
Main work
–
Remove screw
1
and lower the rear wheel with the link fork
as far as possible without blocking the rear wheel. Secure the
rear wheel in this position.
–
Remove screw
2
, push splash protector
3
to the side, and
remove the shock absorber.
12.19 Installing the shock absorber
S03479-11
Main work
–
Push splash protector
1
to the side and position the shock
absorber. Mount and tighten screw
2
.
Guideline
Screw, top
shock absorber
M12 80 Nm (59 lbf ft)
Loctite
®
2701™
–
Mount and tighten screw
3
.
