12 SERVICE WORK ON THE CHASSIS
86
E00883-11

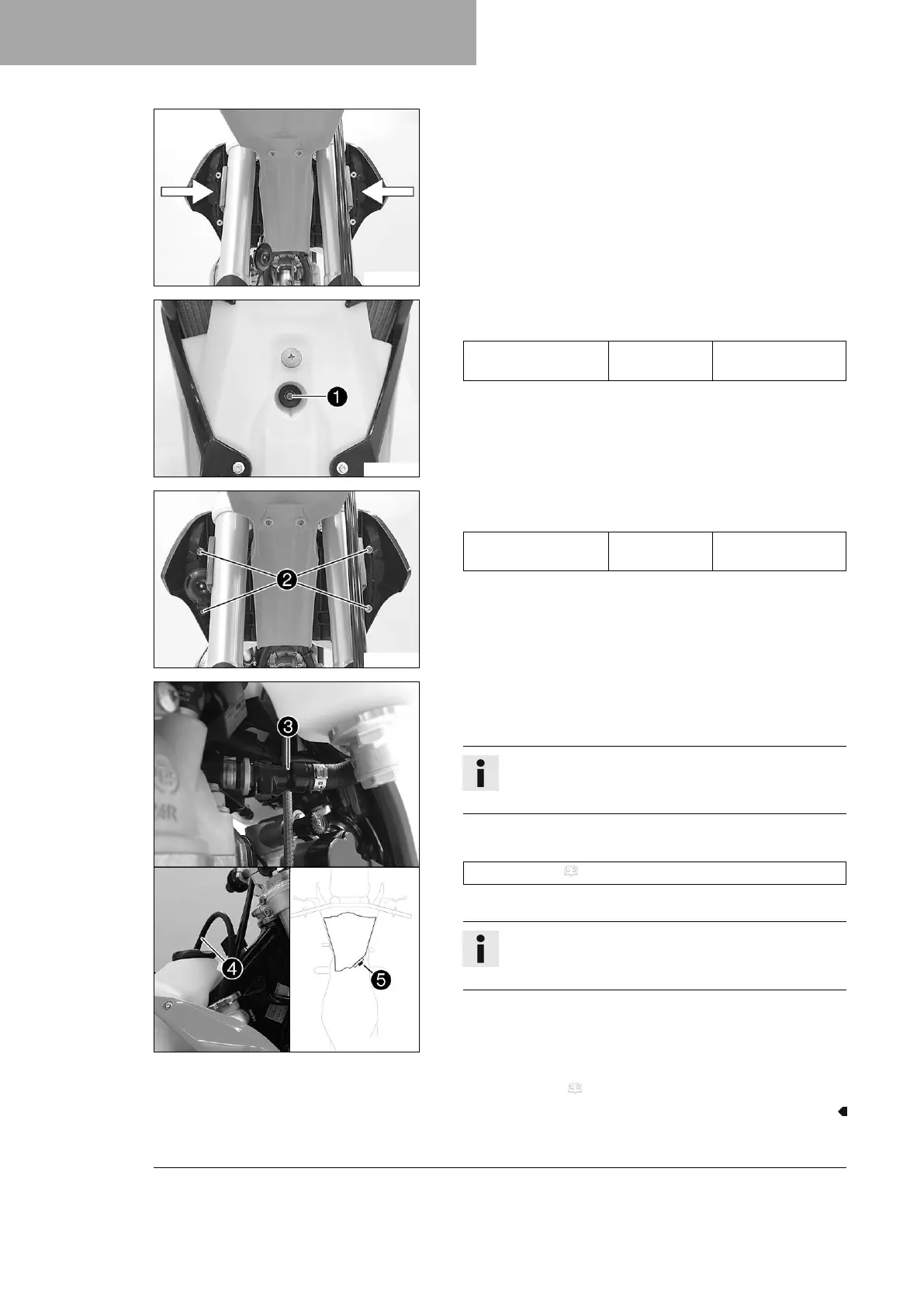

– Position the fuel tank and fit the two spoilers to the sides in
front of the radiator bracket.
– Make sure that no cables or throttle cables are trapped or dam-
aged.
E00882-11
–
Mount and tighten screw
1
with the rubber bushing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
(All EXC models)
– Position the horn with the horn bracket.
E00881-11
–
Mount and tighten screws
2
with the collar bushings.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
S04896-10
– Remove the wash cap set.
– Clean the quick release coupling thoroughly with compressed
air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
– Spray silicone spray onto a lint-free cleaning cloth and lightly
lubricate the O-ring of the quick-release coupling.
Silicone spray ( p. 171)
–
Join quick release coupling
3
.
Info
Route the cable and fuel line at a safe distance from
the exhaust system.
–
Attach fuel tank breather hose
4
.
–
Plug in connector
5
for the fuel pump.
Finishing work
– Mount the seat. ( p. 78)

KTM 250 EXC 2023 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	9 L
Ground Clearance	370 mm
Seat Height	960 mm
Rear Suspension	WP XPLOR shock absorber with linkage
Frame	Central double-cradle type, Chromium-Molybdenum
