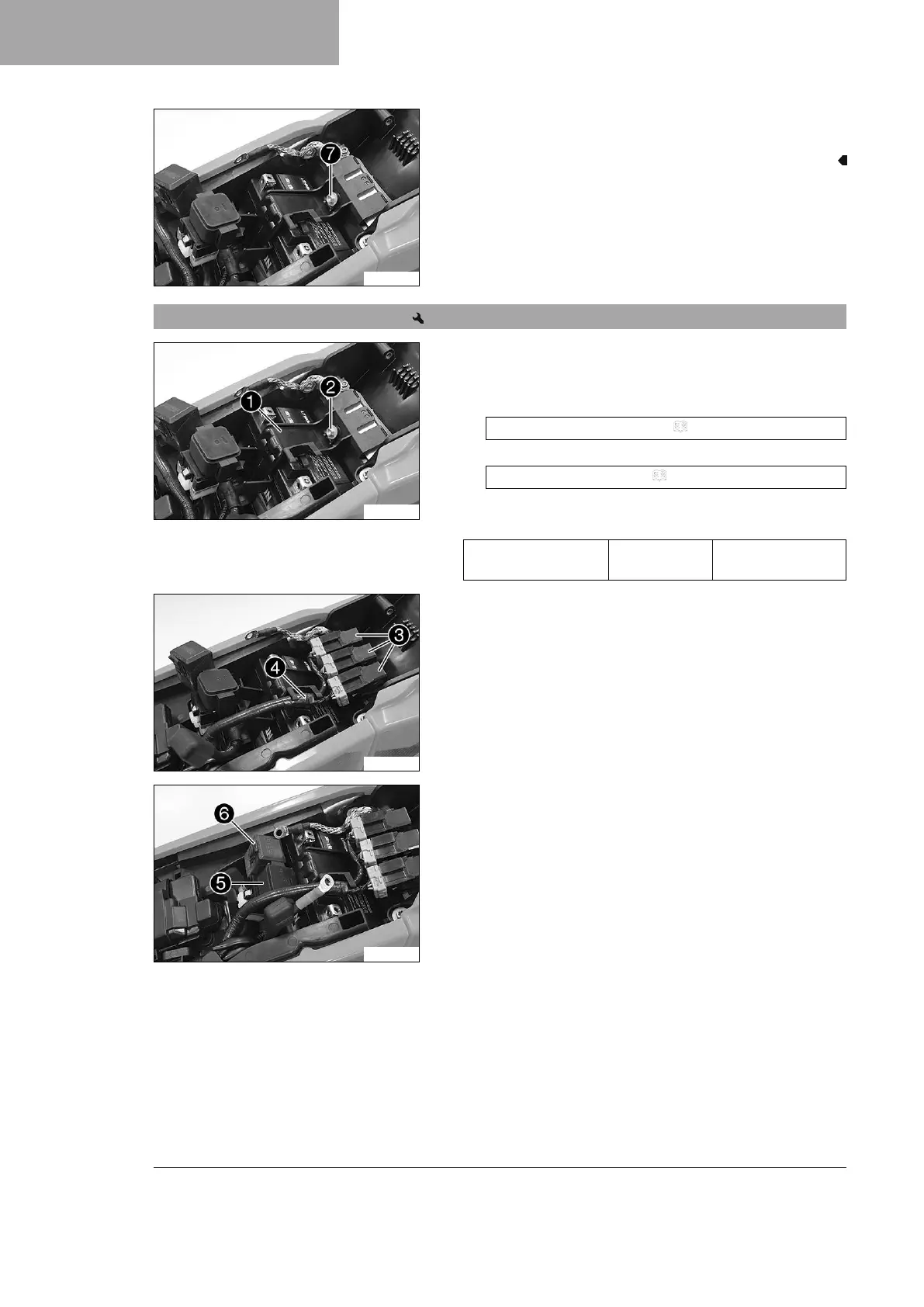

15 ELECTRICAL SYSTEM
114
V01779-10
–
Remove screw
7
and detach the battery compartment.
– Lift out the 12-V battery.
15.2 Installing the 12-V battery
V01779-11
Main work
– Insert the 12-V battery into the battery compartment with the
terminals facing forward and secure with holding bracket
1
.
(All EU models)
12 V battery (HJTZ5S-FP-C) ( p. 152)
(EXC‑F BR)
12 V battery (YTX5L-BS) ( p. 152)
–
Mount and tighten screw
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V01778-11
–
Mount relays
3
and attach wiring harness
4
.
V01777-11
–
Mount starter relay
5
and fuse box
6
.
