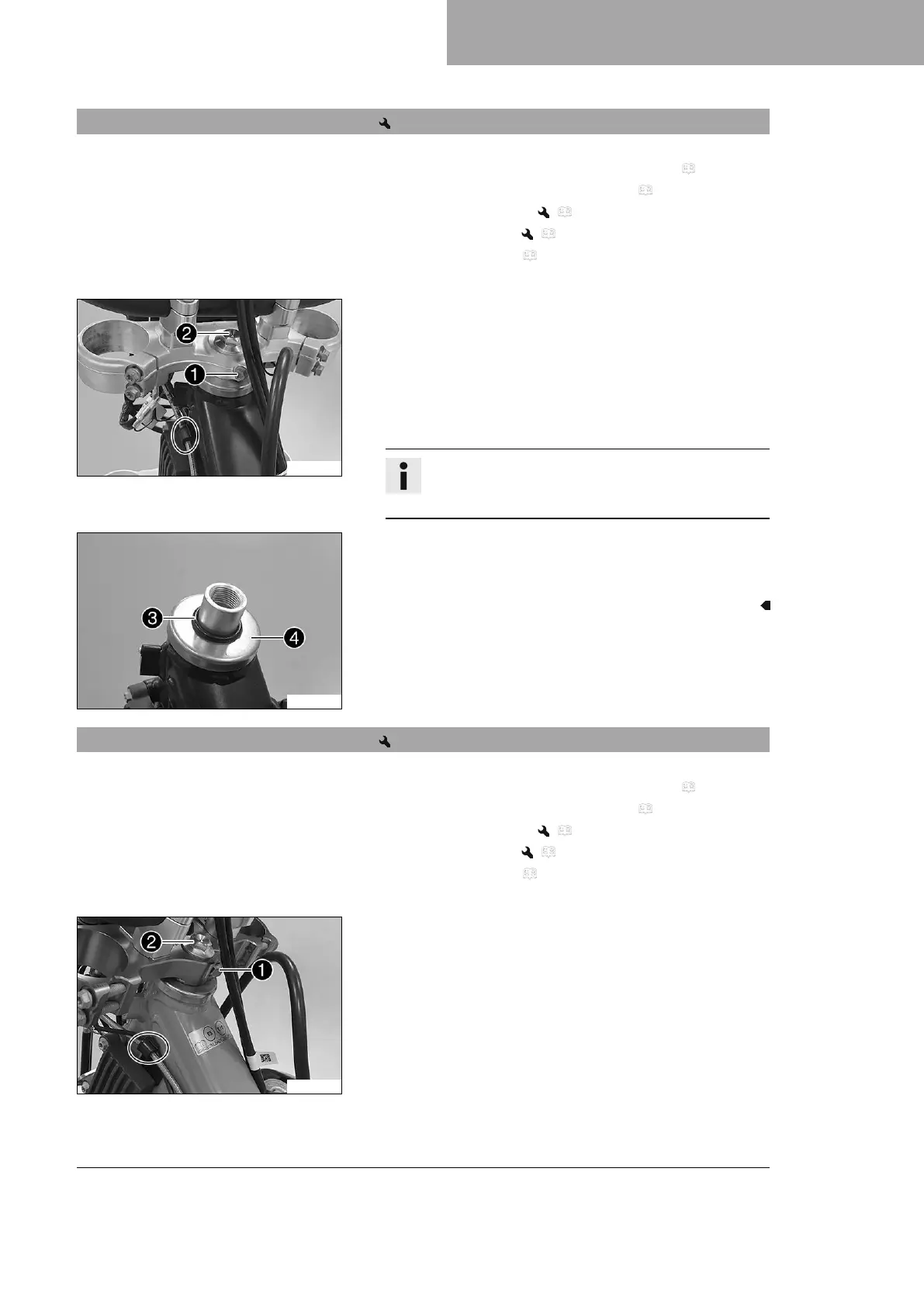

12.9 Removing the lower triple clamp (EXC‑F EU/BR)
Preparatory work
– Remove the headlight mask with the headlight. ( p. 120)
– Raise the motorcycle with the lift stand. ( p. 61)
– Remove the front wheel. ( p. 106)
– Remove the fork legs. ( p. 63)
– Remove front fender. ( p. 72)
– Remove the handlebar cushion.
V01785-10
Main work
–
Open the cable holder in front of the left radiator and detach
the wiring harness.
–
Loosen screw
1
.
–
Remove screw
2
.
– Take off the upper triple clamp with the handlebar and set it
aside.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
V01757-10
–
Remove O-ring
3
and protective ring
4
.
– Take off the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
12.10 Removing the lower triple clamp (EXC‑F Six Days)
Preparatory work
– Remove the headlight mask with the headlight. ( p. 120)
– Raise the motorcycle with the lift stand. ( p. 61)
– Remove the front wheel. ( p. 106)
– Remove the fork legs. ( p. 63)
– Remove front fender. ( p. 72)
– Remove the handlebar cushion.
V01787-10
Main work
– Open the cable holder in front of the left radiator and detach
the wiring harness.
–
Remove screw
1
.
–
Remove screw
2
.
– Take off the upper triple clamp with the handlebar and set it
aside.
