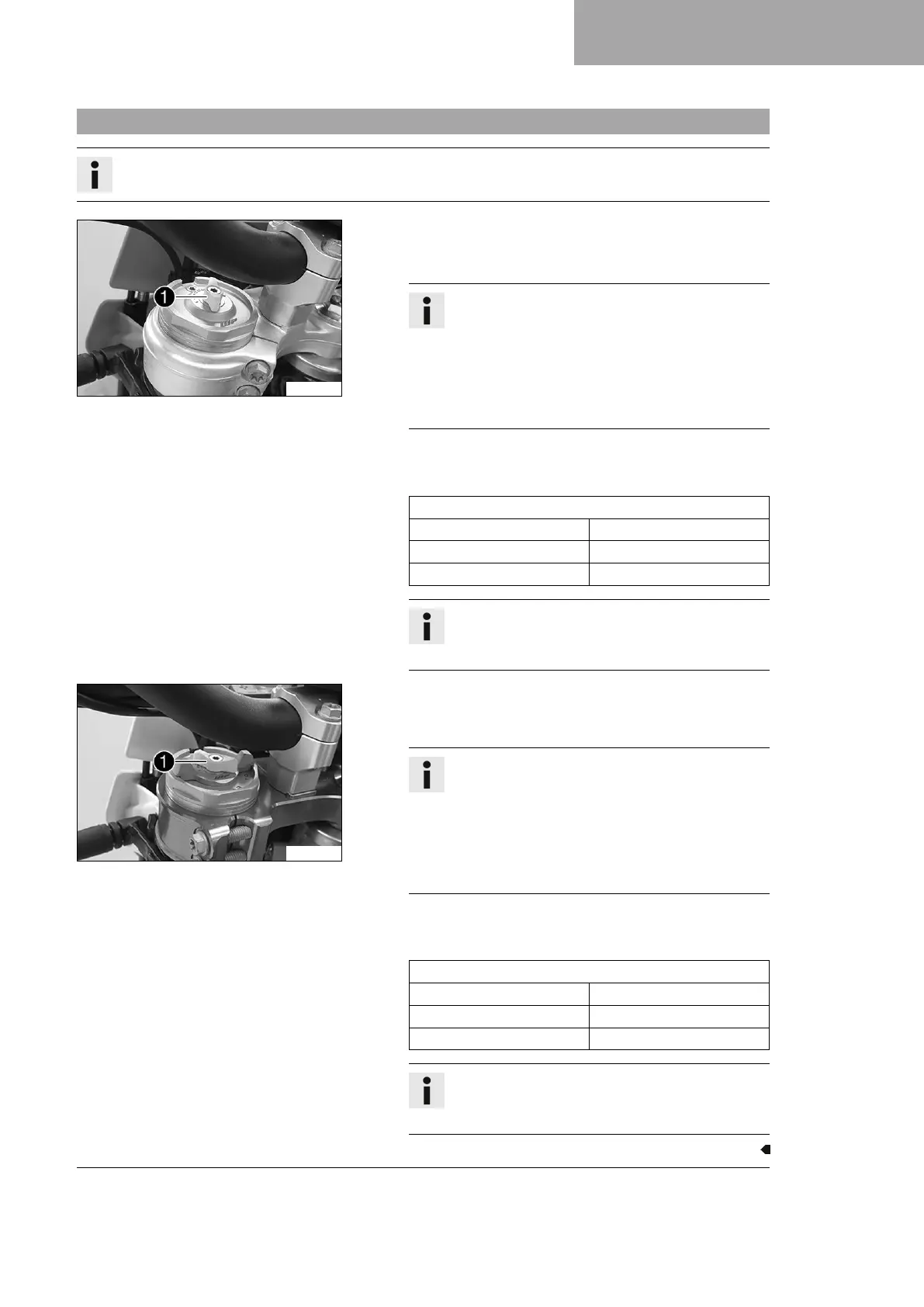

TUNING THE CHASSIS 11
55
11.12 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
S03470-10
(EXC‑F BR)
–
Turn white adjusting screw
1
clockwise as far as it will
go.
Info
Adjusting screw
1
is located at the upper end of
the left fork leg.
The compression damping is located in left fork
leg COMP (white adjusting screw). The rebound
damping is located in right fork leg REB (red adjust-
ing screw).
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Compression damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping during compression.
S03471-10
(All EU models)
–
Turn white adjusting screw
1
clockwise as far as it will
go.
Info
Adjusting screw
1
is located at the upper end of
the left fork leg.
The compression damping is located in left fork
leg COM (white adjusting screw). The rebound
damping is located in right fork leg REB (red
adjusting screw).
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Compression damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping during compression.
