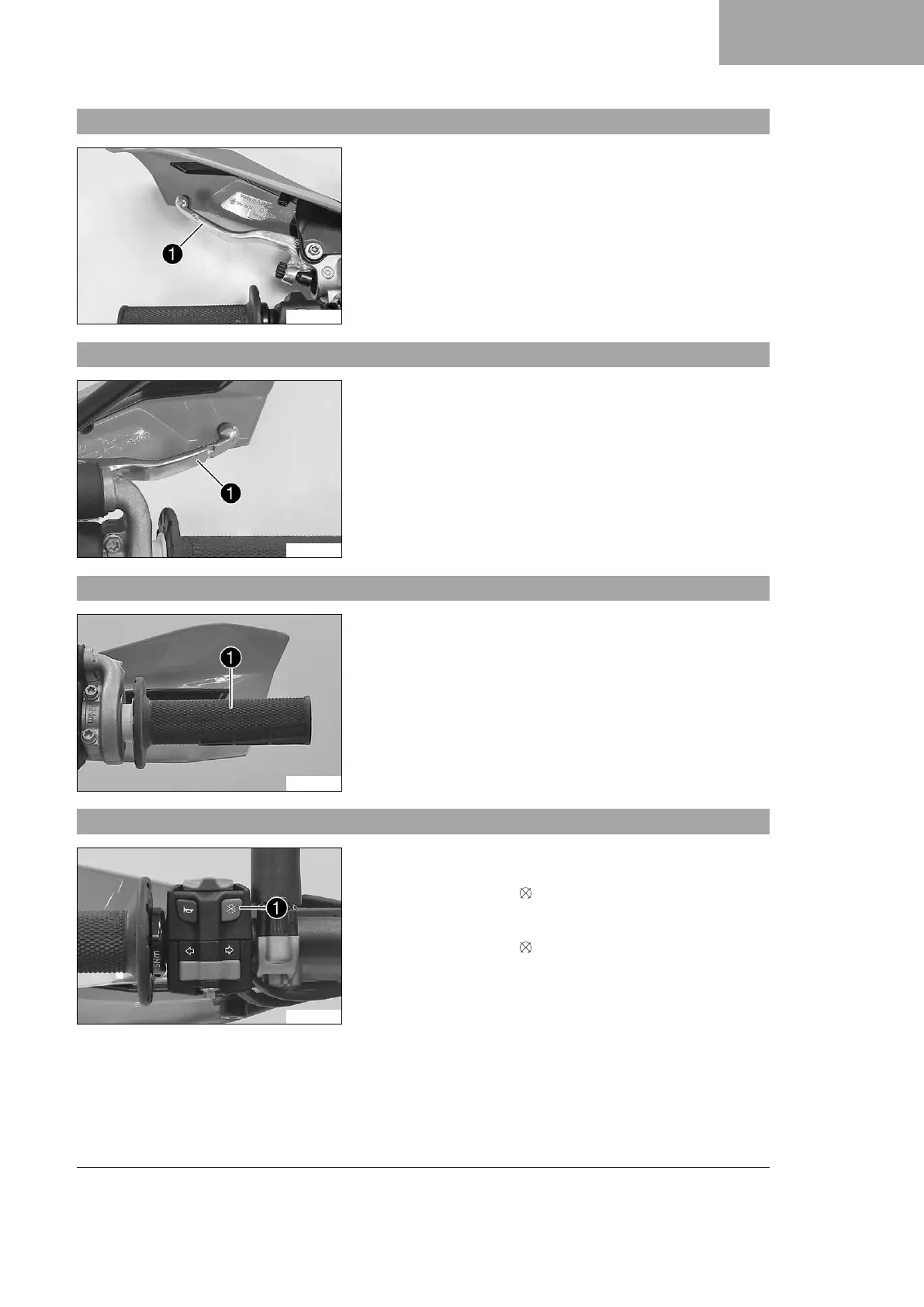

6.1 Clutch lever
A00345-10
Clutch lever
1
is fitted on the handlebar on the left.
The clutch is activated hydraulically and adjusts itself automati-
cally.
6.2 Hand brake lever
E01205-10
The hand brake lever
1
is fitted on the right side of the handle-
bar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
E01206-10
The throttle grip
1
is fitted on the right side of the handlebar.
6.4 Switch-off button
S01302-10
Switch-off button
1
is fitted on the left side of the handlebar.
Possible states
• The switch-off button is in the basic position – In this
position, the ignition circuit is closed and the engine can be
started.
• The switch-off button is pressed – In this position, the igni-
tion circuit is interrupted, a running engine stops, and a non-
running engine will not start.
