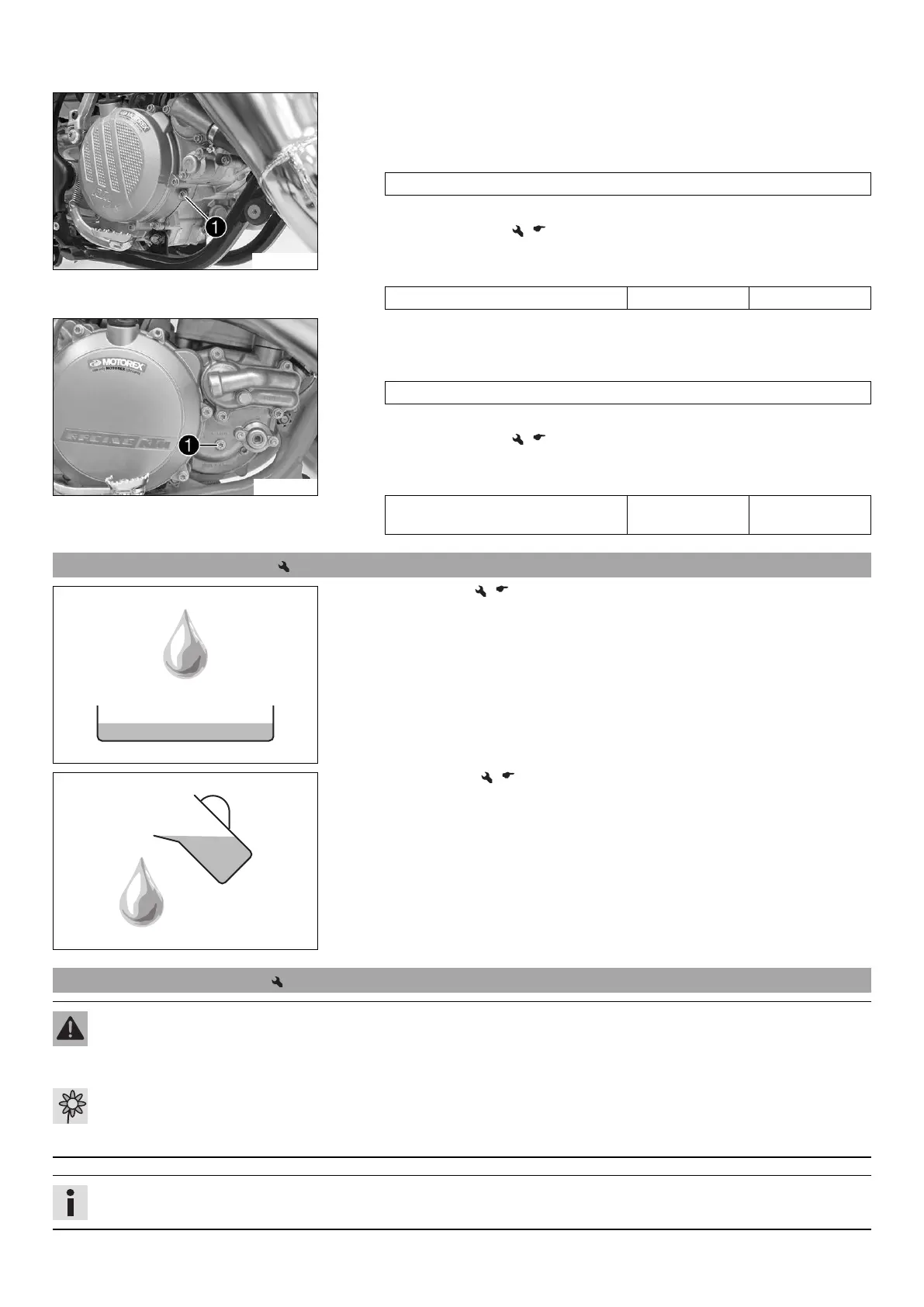

17 SERVICE WORK ON THE ENGINE 104
M01176-10
Main work
(All 125/150 models)
–
Remove the gear oil monitoring screw
.
– Check the gear oil level.
A small quantity of gear oil must run out of the drilled hole.
» If no gear oil runs out:
– Add gear oil. ( p. 106)
–
Mount and tighten the gear oil monitoring screw.
Guideline
Screw, gear oil level check M6 8 Nm (5.9 lbf ft)
B02132-10
(All 250/300 models)
–
Remove the gear oil monitoring screw
.
– Check the gear oil level.
A small quantity of gear oil must run out of the drilled hole.
» If no gear oil runs out:
– Add gear oil. ( p. 106)
– Mount and tighten the gear oil monitoring screw.
Guideline
Screw, gear oil level check M6 10 Nm
(7.4 lbf ft)
17.3 Changing the gear oil
400721-01
– Drain the gear oil. ( p. 104)
400722-01
– Refill with gear oil. ( p. 105)
17.4 Draining the gear oil
Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Drain the gear oil while the engine is warm.
