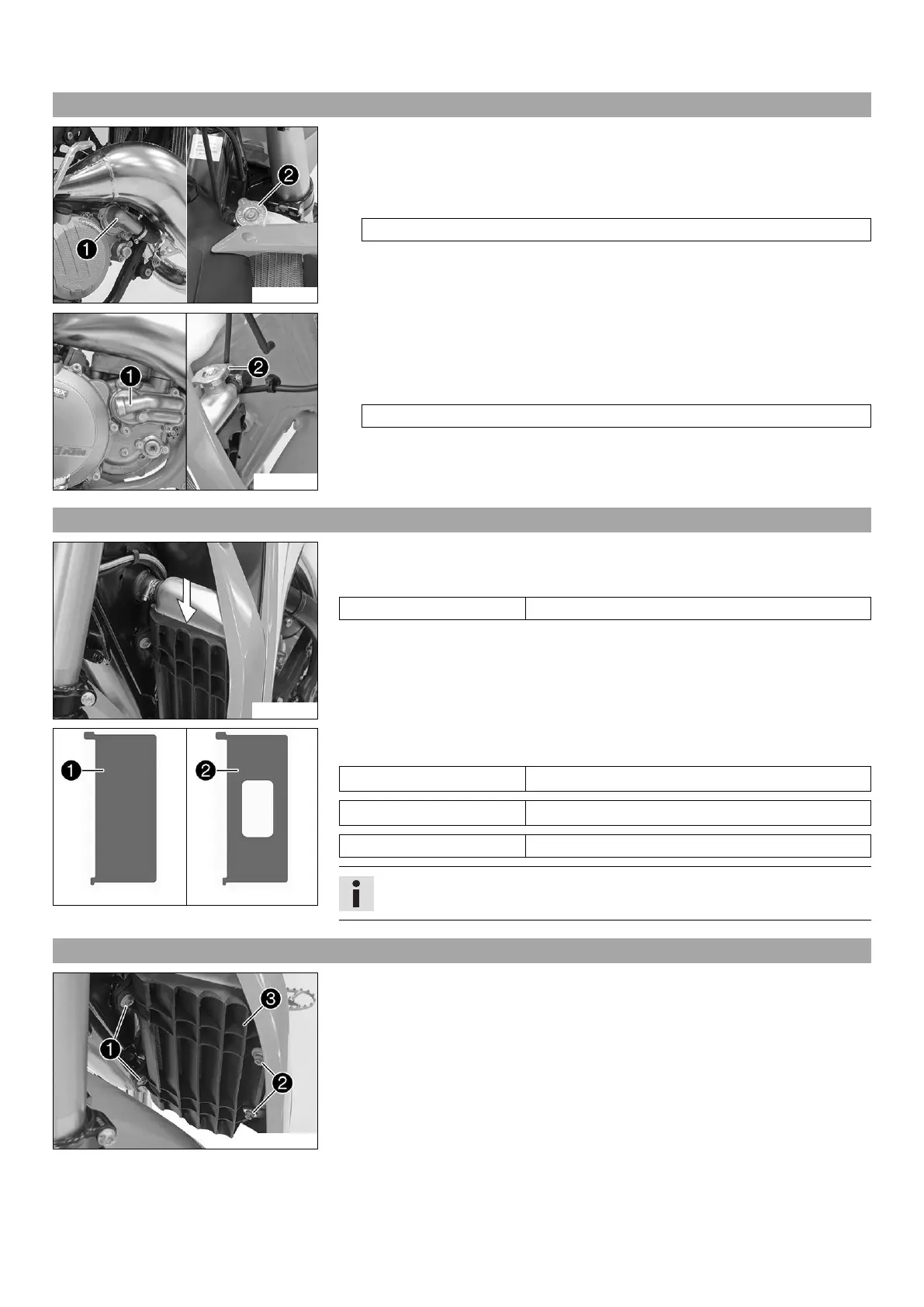

15 COOLING SYSTEM 92
15.1 Cooling system
M01170-11
(All 125/150 models)
Water pump
in the engine ensures forced circulation of the coolant.
The pressure resulting from the warming of the cooling system is regulated by a
valve in radiator cap
. This ensures that operating the vehicle at the specified
coolant temperature will not result in a risk of malfunctions.
120 °C (248 °F)
Cooling is effected by the air stream.
The lower the speed, the less the cooling effect. Dirty cooling fins also reduce the
cooling effect.
B02124-10
(All 250/300 models)
The water pump
in the engine ensures forced circulation of the coolant.
The pressure resulting from the warming of the cooling system is regulated by a
valve in radiator cap
. This ensures that operating the vehicle at the specified
coolant temperature will not result in a risk of malfunctions.
120 °C (248 °F)
Cooling is effected by the air stream.
The lower the speed, the less the cooling effect. Dirty cooling fins also reduce the
cooling effect.
15.2 Radiator cover (All 125/150 models)
M01126-01
The radiator cover is mounted in front of the left radiator between the radiator shield
and radiator.
The radiator cover keeps the coolant temperature in the correct range.
Coolant temperature 65… 70 °C (149… 158 °F)
M01121-10
The radiator cover is installed in front of the left radiator, depending on the ambient
temperature.
Full radiator cover
< 7 °C (< 45 °F)
Half radiator cover
7… 16 °C (45… 61 °F)
No radiator cover > 16 °C (> 61 °F)
Info
Do not use both radiator covers at the same time.
15.3 Installing the radiator cover (All 125/150 models)
M01124-10
–
Remove screws
.
–
Remove screws
.
–
Take off radiator shield
.
To Next Page
