10 TUNING THE CHASSIS 43
102145-10
Main work
–

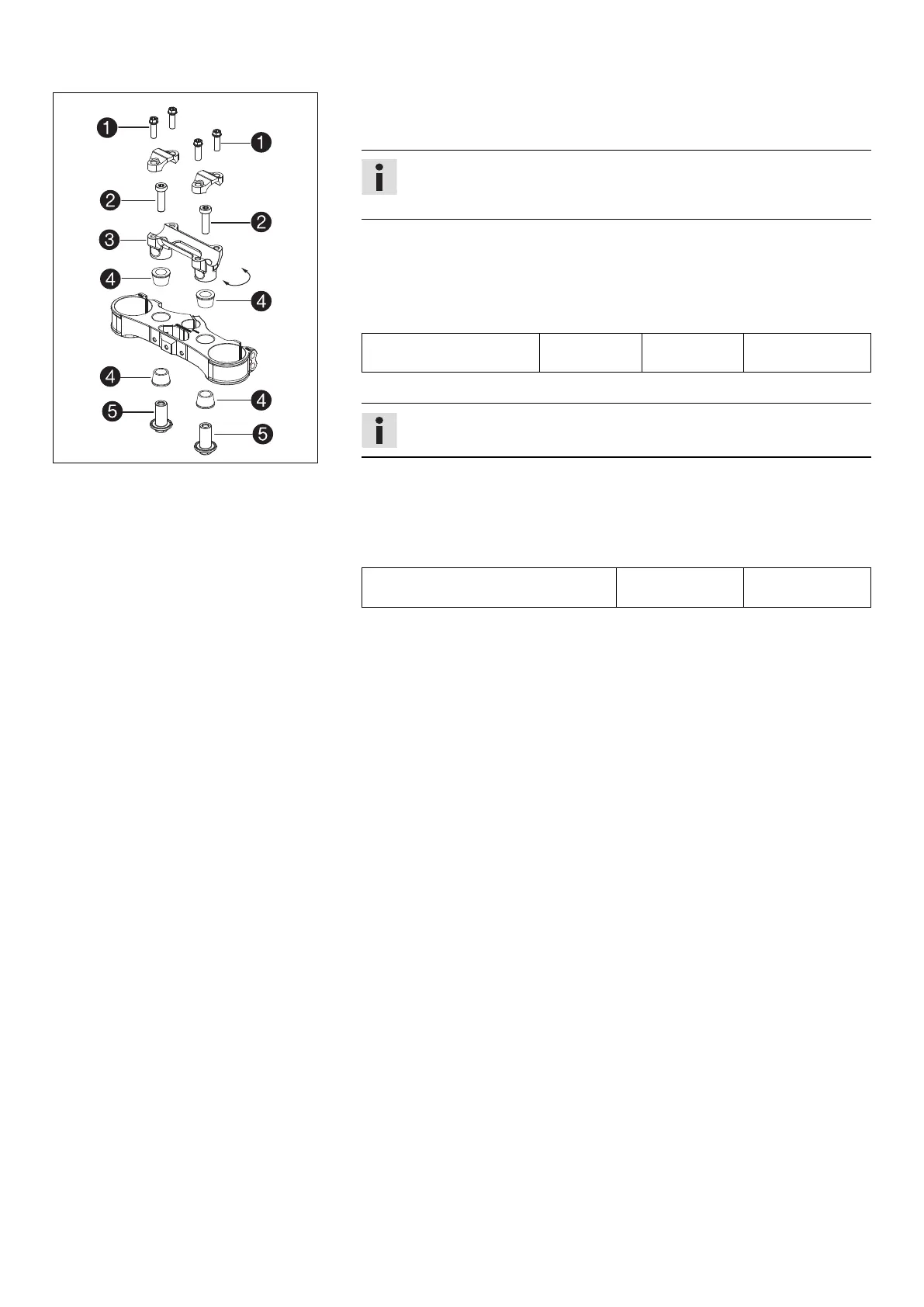

Remove screws
. Take off the handlebar clamps. Remove the handlebar and lay
it to one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws
. Remove handlebar support
.
–
Position rubber bushings
and push through nuts
from below.
– Place the handlebar support in the required position. Mount and tighten
screws
.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
– Position the handlebar clamps.
–
Mount screws
, but do not tighten yet.
– Screw the handlebar clamps so that both parts touch at the front and tighten all of
the screws.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Finishing work
– Mount the handlebar cushion.
