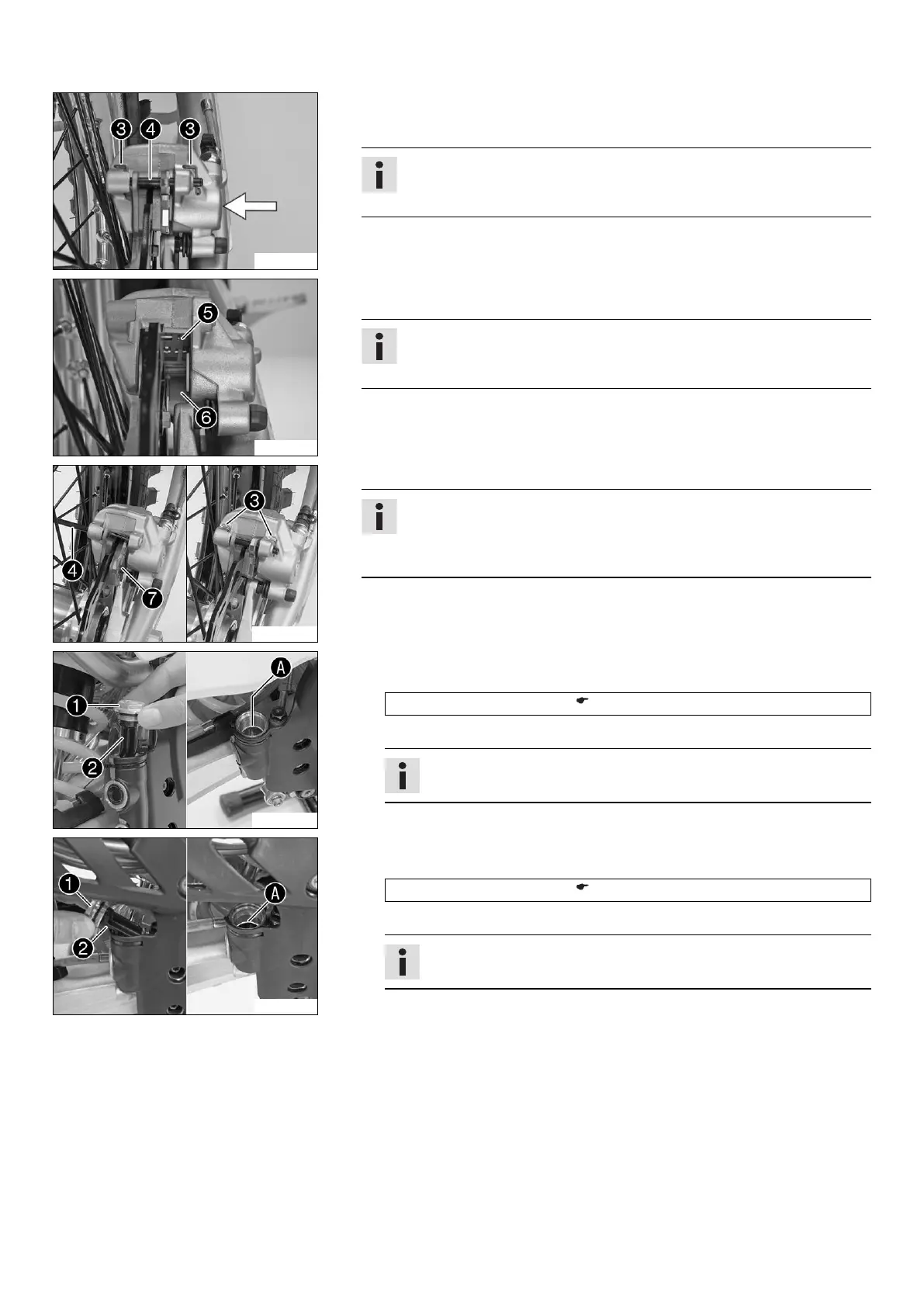

12 BRAKE SYSTEM 83
101740-10
– Manually press the brake caliper to the brake disc to push back the brake piston.
Ensure that brake fluid does not flow out of the brake fluid reservoir, extracting it
by suction if it does.
Info
Make sure when pushing back the brake piston that you do not press the
brake caliper against the spokes.
–
Remove cotter pins
, pull out pin
, and remove the brake linings.
– Clean the brake caliper and brake caliper support.
101741-10
–
Check that leaf spring
in the brake caliper and sliding plate
in the brake
caliper support are seated correctly.
Info
The arrow on the leaf spring points in the rotation direction of the brake
disc.
M01181-10
–
Insert the new brake linings, insert pin
, and mount cotter pins
.
Info
Always change the brake linings in pairs.
Make sure that decoupling plate
is mounted on the piston side brake
lining.
– Operate the foot brake lever repeatedly until the brake linings are in contact with
the brake disc and there is a pressure point.
M01179-10
(All 125/150 models)
–
Add brake fluid to level
.
Brake fluid DOT 4 / DOT 5.1 ( p. 134)
–
Mount and tighten screw cap
with membrane
and the O-ring.
Info
Clean up overflowed or spilled brake fluid immediately with water.
101704-10
(All 250/300 models)
–
Add brake fluid to level
.
Brake fluid DOT 4 / DOT 5.1 ( p. 134)
–
Mount and tighten screw cap
with membrane
and the O-ring.
Info
Clean up overflowed or spilled brake fluid immediately with water.
