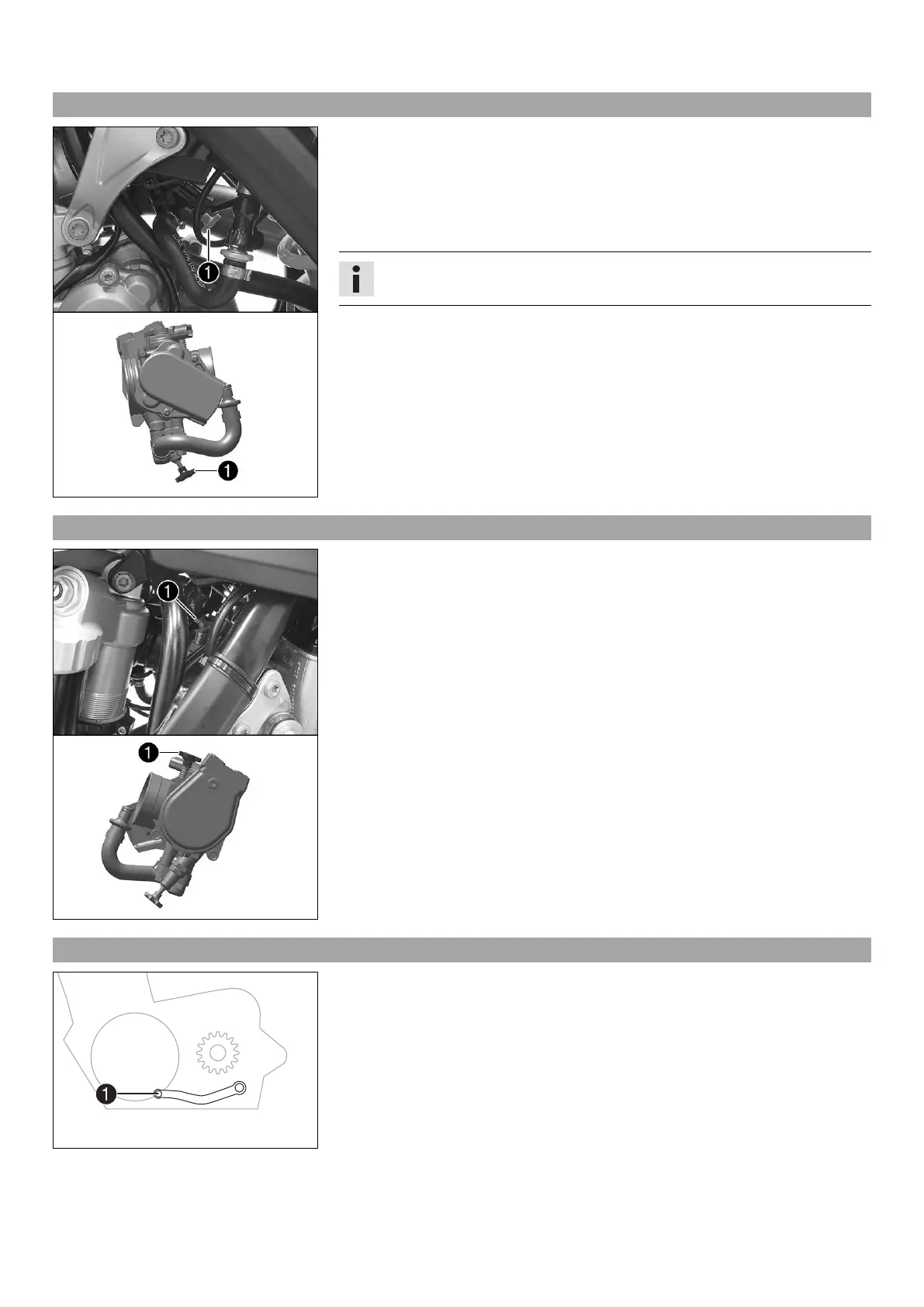

6 CONTROLS 15
6.11 Cold start button
S01200-10
Cold start button
1
is fitted on the bottom of the throttle valve body.
The injection system extends the injection time if the engine is cold and the outside
temperature is low. To help the engine burn the increased amount of fuel, it must be
supplied with additional oxygen by pushing the cold start button.
After briefly opening up the throttle and then releasing the throttle grip again, or turn-
ing the throttle grip towards the front, the cold start button returns to its original posi-
tion.
Info
Check whether the cold start button has returned to its basic position.
Possible states
• The cold start button is activated – The cold start button is pushed in all the way.
• The cold start button is deactivated – The cold start button is in its basic position.
6.12 Idle speed adjusting screw
S01199-10
The idle setting of the throttle valve body has a big influence on the vehicle's starting
behavior, on stable idling, and on vehicle response when the throttle is opened.
An engine with a correctly set idle speed is easier to start than an engine with the idle
speed set incorrectly.
The idle speed is adjusted with idle speed adjusting screw
1
.
Increase the idle speed by turning the idle speed adjusting screw clockwise.
Decrease the idle speed by turning the idle speed adjusting screw counterclockwise.
6.13 Shift lever
401950-10
Shift lever
1
is mounted on the left side of the engine.
