14 ELECTRICAL SYSTEM 84
F00136-10
Main work
(All SX‑F standard models)
–

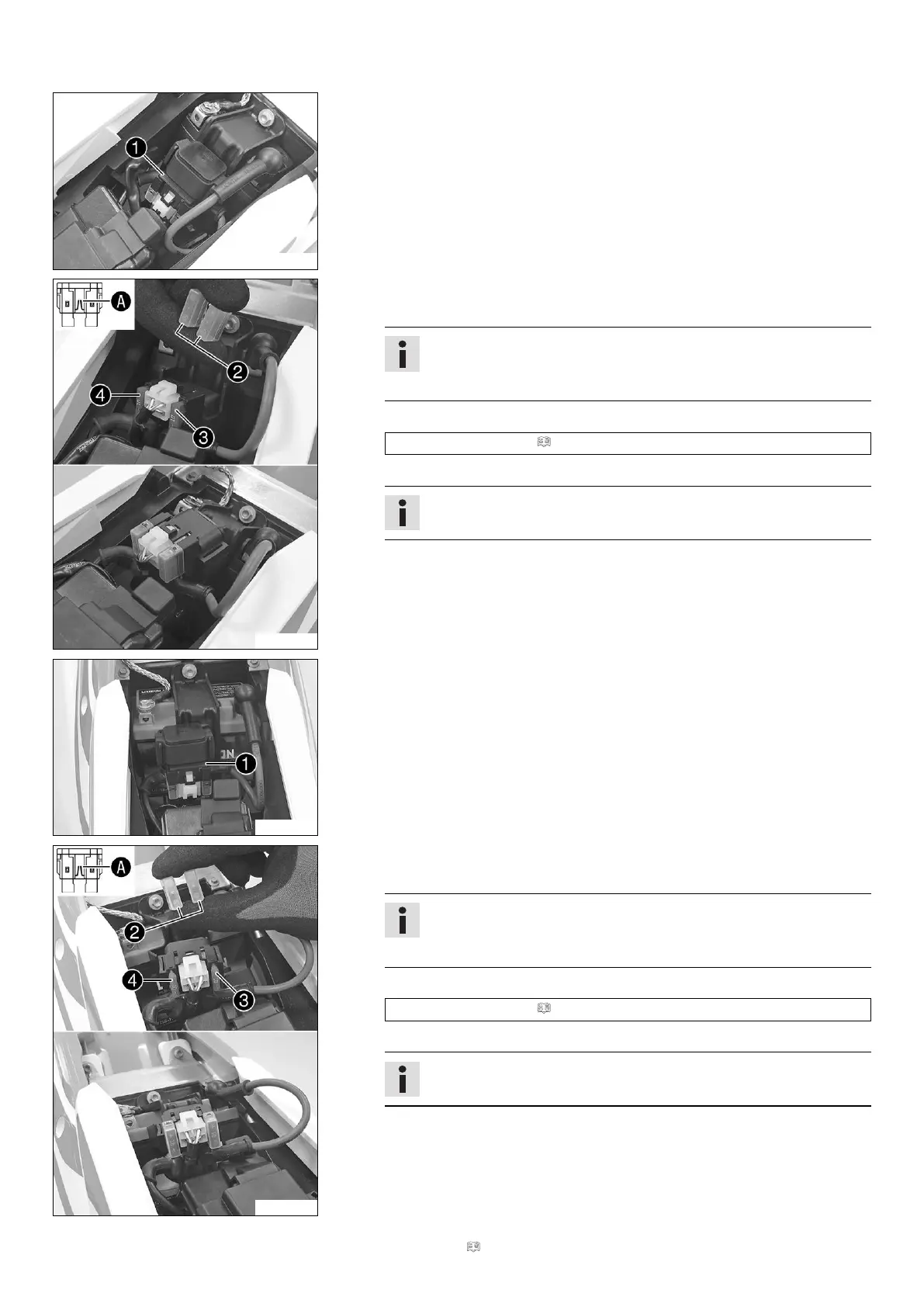

Pull starter relay
1
from the holder.
F00135-10
–
Take off protection caps
2
.
–
Remove faulty main fuse
3
.
Info
You can recognize a defective fuse by a burned-out fuse wire
A
.
A spare fuse
4
is located in the starter relay.
– Install a new main fuse.
Fuse (58011109110) ( p. 106)
– Check that the electrical equipment is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and route the cable.
F00161-10
(XC‑F US, SX‑F Factory Edition)
–
Pull starter relay
1
from the holder.
F00162-10
–
Take off protection caps
2
.
–
Remove faulty main fuse
3
.
Info
You can recognize a defective fuse by a burned-out fuse wire
A
.
A spare fuse
4
is located in the starter relay.
– Install a new main fuse.
Fuse (58011109110) ( p. 106)
– Check that the electrical equipment is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and route the cable.
Finishing work
– Mount the seat. ( p. 50)
