15 ELECTRICAL SYSTEM
114
(EXC BR)
Warning
Risk of injury Battery acid and battery gases cause
serious chemical burns.
– Keep batteries out of the reach of children.
– Wear suitable protective clothing and safety
glasses.
– Avoid contact with battery acid and battery
gases.
– Keep sparks or open flames away from the bat-
tery.
– Only charge batteries in well-ventilated rooms.
– Rinse the affected area immediately with
plenty of water in the event of contact with the
skin.
– Rinse eyes with water for at least 15 minutes
and consult a doctor immediately if battery
acid and battery gases get into the eyes.
–
Disconnect negative cable
1
from the battery.
–
Pull back positive terminal cover
2
and disconnect the
positive cable from the battery.
–
Remove screw
3
.
–
Pull holding bracket
4
forward and remove battery toward
the top.

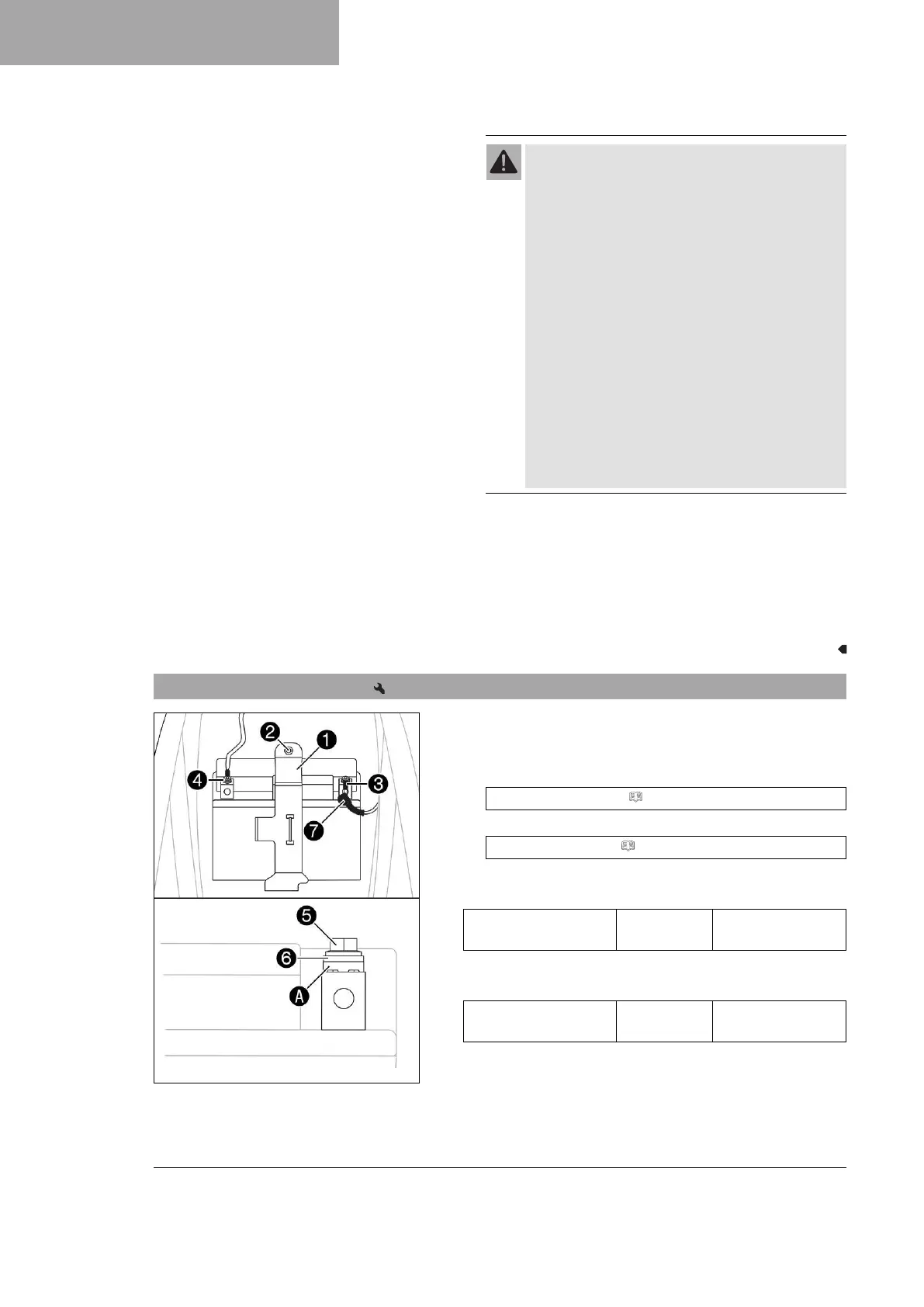

15.2 Installing the battery
H00386-10
Main work
– Insert the battery into the battery compartment with the termi-
nals facing forward and secure with holding bracket
1
.
(All AU/US models)
Battery (HJTZ5S-FP) ( p. 159)
(EXC BR)
Battery (YTX5L-BS) ( p. 159)
–
Mount and tighten screw
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Connect positive cable
3
to the battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
–
Slide positive terminal cover
7
over the positive terminal.
–
Connect negative cable
4
to the battery.
