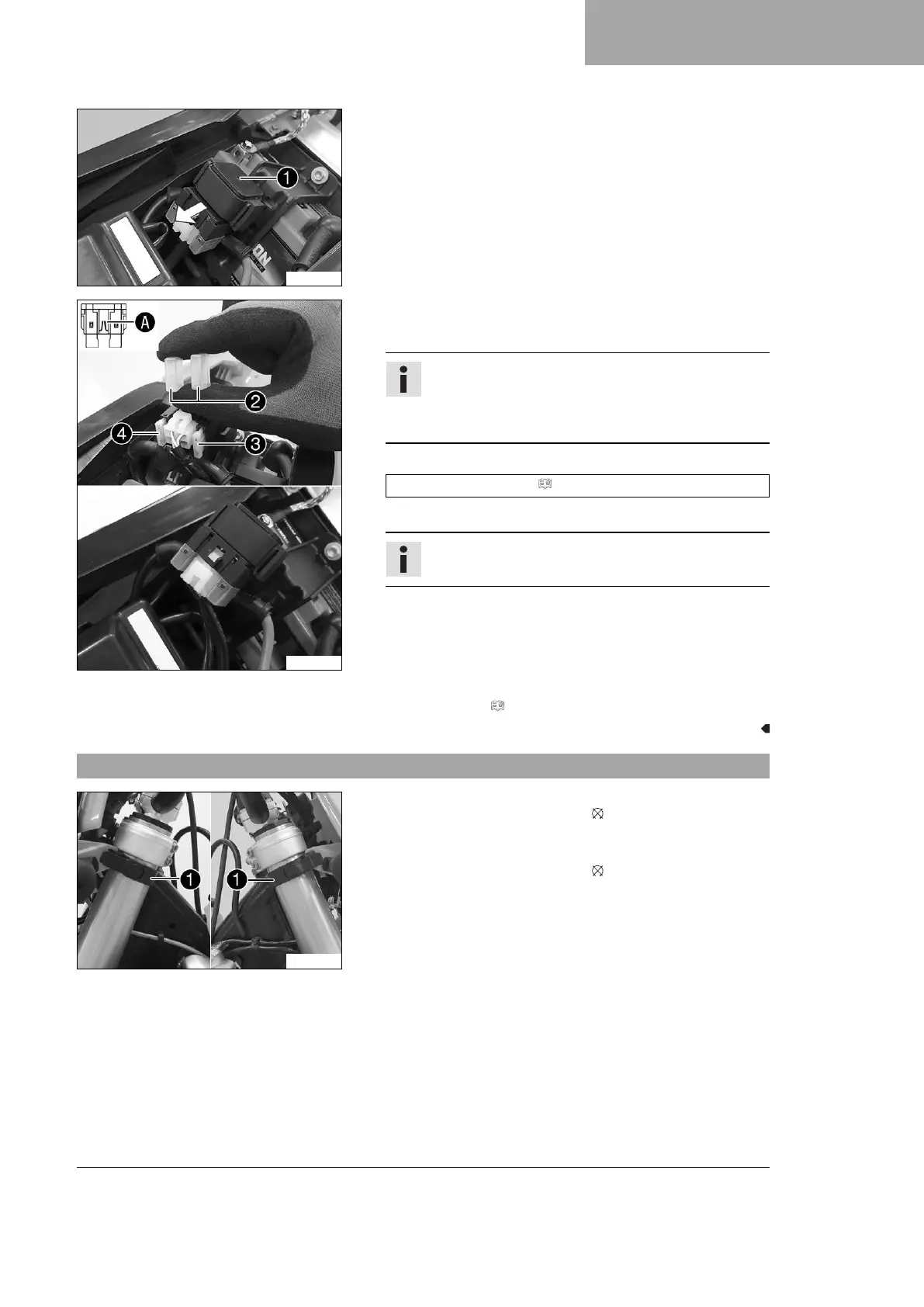

15 ELECTRICAL SYSTEM
119
E00813-10
Main work
–
Pull starter relay
1
from the holder.
E00814-10
–
Take off protection caps
2
.
–
Remove faulty main fuse
3
.
Info
You can recognize a faulty fuse by a burned-out fuse
wire
A
.
A spare fuse
4
is located in the starter relay.
– Install a new main fuse.
Fuse (58011109110) ( p. 159)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and route the cable.
Finishing work
– Mount the seat. ( p. 76)
15.5 Removing the headlight mask with the headlight
E00355-10
(All EXC models)
– Press and hold the kill switch while the engine is idling
until the engine stops.
(All XC‑W models)
– Press and hold the kill switch while the engine is idling
until the engine stops.
– Detach the brake line and wiring harness from the headlight
mask.
–
Release rubber bands
1
. Slide the headlight mask up and
swing it forward.
