6 CONTROLS
21
V00325-10
–

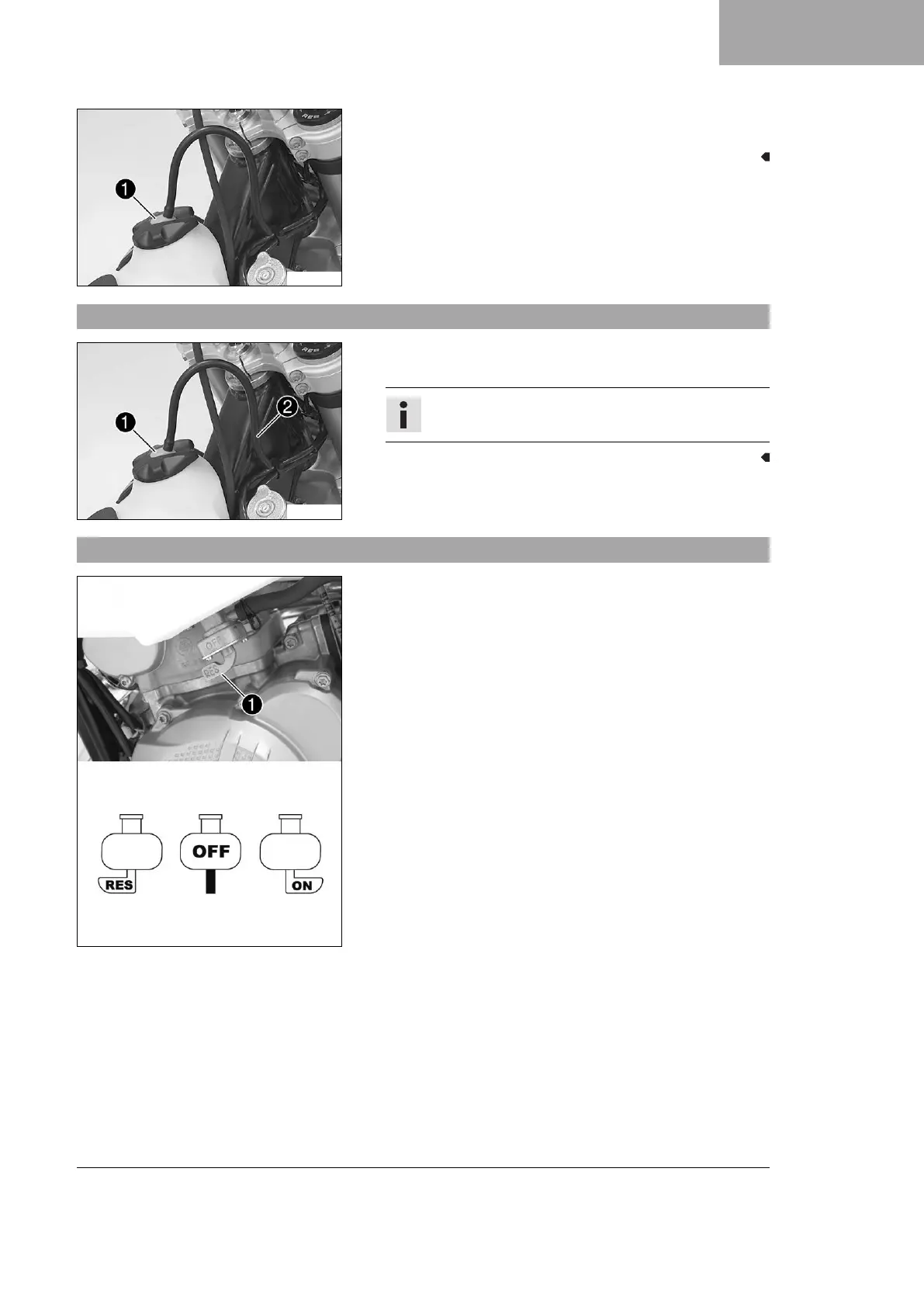

Press release button
1
, turn the filler cap counterclockwise
and lift it free.
6.16 Closing the filler cap
V00325-11
– Replace the filler cap and turn clockwise until the release but-
ton
1
locks in place.
Info
Run the fuel tank breather hose
2
without kinks.
6.17 Fuel tap
E00826-10
The fuel tap is on the left side of the fuel tank.
Open or close the supply of fuel to the carburetor using tap han-
dle
1
on the fuel tap.
Possible states
• Fuel supply closed OFF – Fuel cannot flow from the fuel tank
to the carburetor.
• Fuel supply open ON – Fuel can flow from the fuel tank to the
carburetor. The fuel tank empties down to the reserve level.
• Fuel reserve supply open RES – Fuel can flow from the fuel
tank to the carburetor. The fuel tank empties completely.
