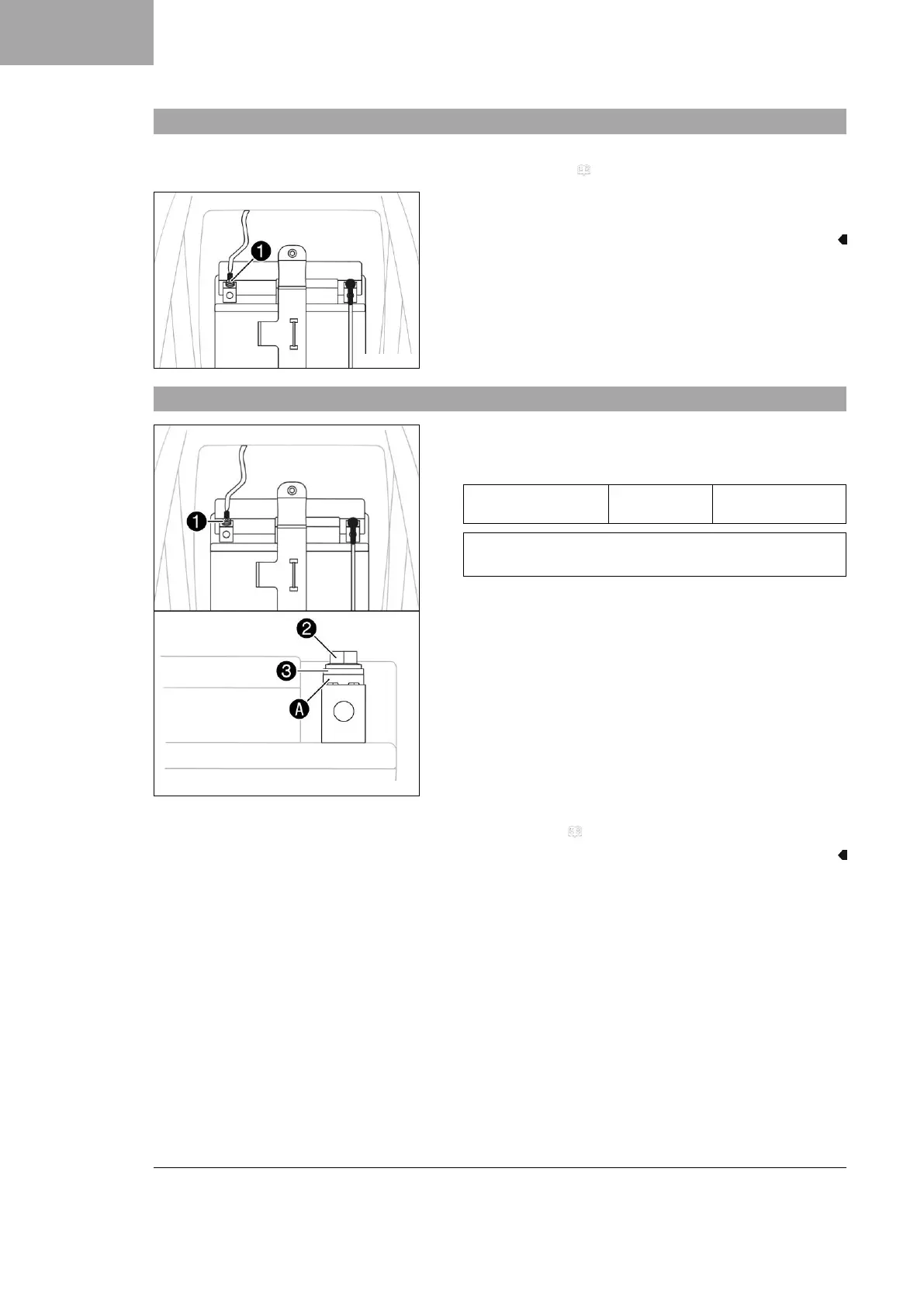

3.11 Disconnecting the negative cable of the 12-V battery
Preparatory work
– Remove the seat. ( p. 12)
R01414-10
Main work
–
Disconnect negative cable
1
from the 12-V battery.
3.12 Connecting the negative cable of the 12 V battery
T02638-10
Main work
–
Connect negative cable
1
of the 12 V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Contact disk
A
must be mounted under screw
2
and
cable lug
3
with the claws toward the battery terminal.
Finishing work
– Mount the seat. ( p. 13)
