Fuse (MXC/EXC)

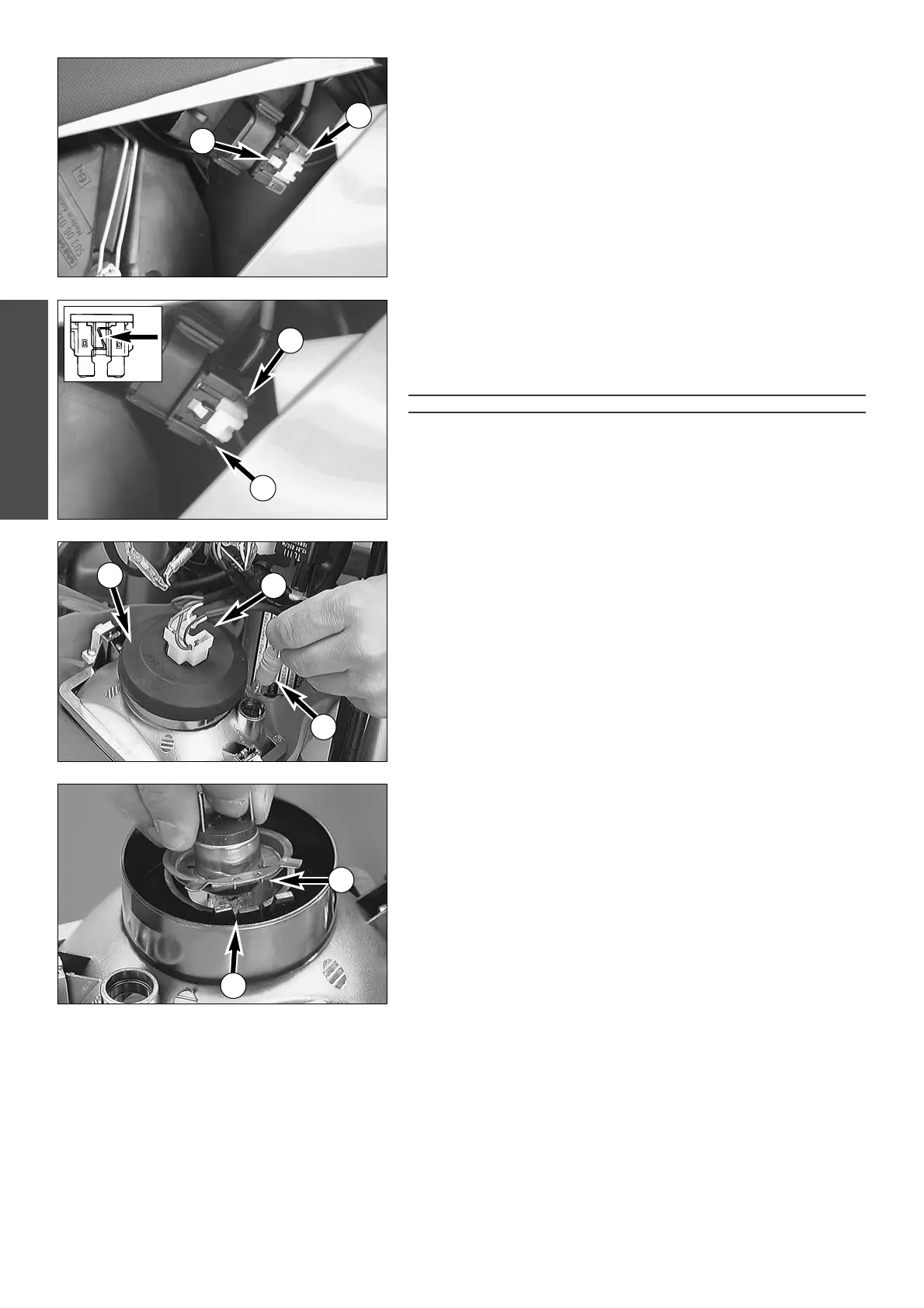

The fuse 1 is located in the starter relay of the E-starter 2 underneath the
left side paneling.
Having removed the left side paneling, the air box cover and the protection
cover
A, you will be able to see the fuse.
The following loads are connected to it:
– E-starter system
– horn
– flasher lights
The starter relay also contains a (10 amp) spare fuse
3.
Replace a blown fuse only with an equivalent one. If a new fuse that has
just been installed gets blown again, you are strongly advised to have it
inspected by a KTM dealer.
The fuse capacity is 10 Ampere.
!
CAUTION
!
UNDER NO CIRCUMSTANCES IS A STRONGER FUSE ALLOWED TO BE INSTALLED OR A FUSE
ALLOWED TO BE
“REPAIRED”. AN IMPROPER TREATMENT COULD DAMAGE THE WHOLE
ELECTRICAL INSTALLATION
.
Replacing headlight lamp/parking light lamp
Loosen both rubber bands and tilt headlight mask to the front. Pull the
parking light lamp with holder 4 carefully out of the reflector. Pull connector
5 off the headlamp and remove rubber cap 6. Disengage retaining clip
and take bulb out of reflector. When changing the parking-light lamp,
simply pull it out of the holder.
Insert the new lamp such that the noses
7 engage in the recesses 8 .When
doing so, do not touch the glass body of the lamp so that it remains free
from fat. Engage retaining clip, mount rubber cap and connector. If the
parking-light lamp is to be replaced, simply insert it in the holder. Reinsert
the parking-light lamp together with the holder.
Engage the bottom end of the headlamp mask at the retaining pins and fix
the mask by means of the rubber bands.
1
2
3
A
7
5
6
4
8
