ENGLISH
5

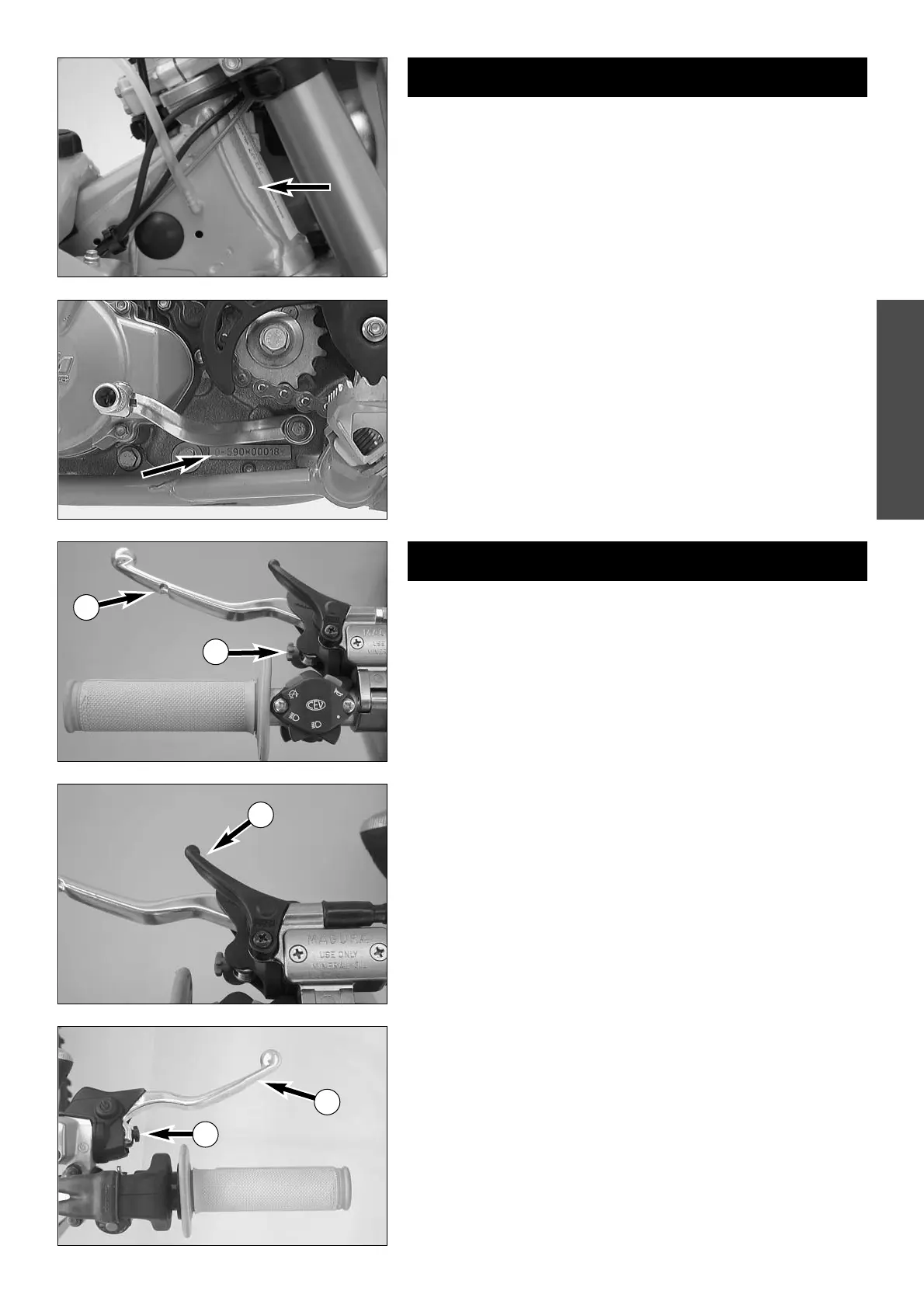

Chassis number
The chassis number is stamped on the right side of the steering head tube.
Enter this number in the field on page no 1.
Engine number, engine type
The engine number and the engine type are stamped into the left side of
the engine below the engine sprocket. Enter this number on page 1.
SERIAL NUMBER LOCATIONS
OPERATION INSTRUMENTS
Clutch lever
The clutch lever 1 is located on the left side of the handlebar. The adjust-
ing screw
A is used to change the original position of the clutch lever (see
maintenance work on chassis and engine).
Hand decompression lever
The hand decompression lever 2 is needed only if the carburetor overflows
after a fall. To "pump the engine free", pull the hand decompression lever
during the starting procedure.
The outer end of the lever must provide for a backlash of approx. 10mm
(0.4 in) at all times. Only thereafter may it cause valve motion (to be
recognized by the stronger resistance which the hand decompression lever
encounters).
Hand brake lever
The hand brake lever 3 is mounted on the handlebars on the right and
actuates the front wheel brake. The adjusting screw
B can be used to
change the basic position of the hand brake lever (see "Maintenance").
1
A
2
B
3
