KTM 50 SX 2015 User Manual

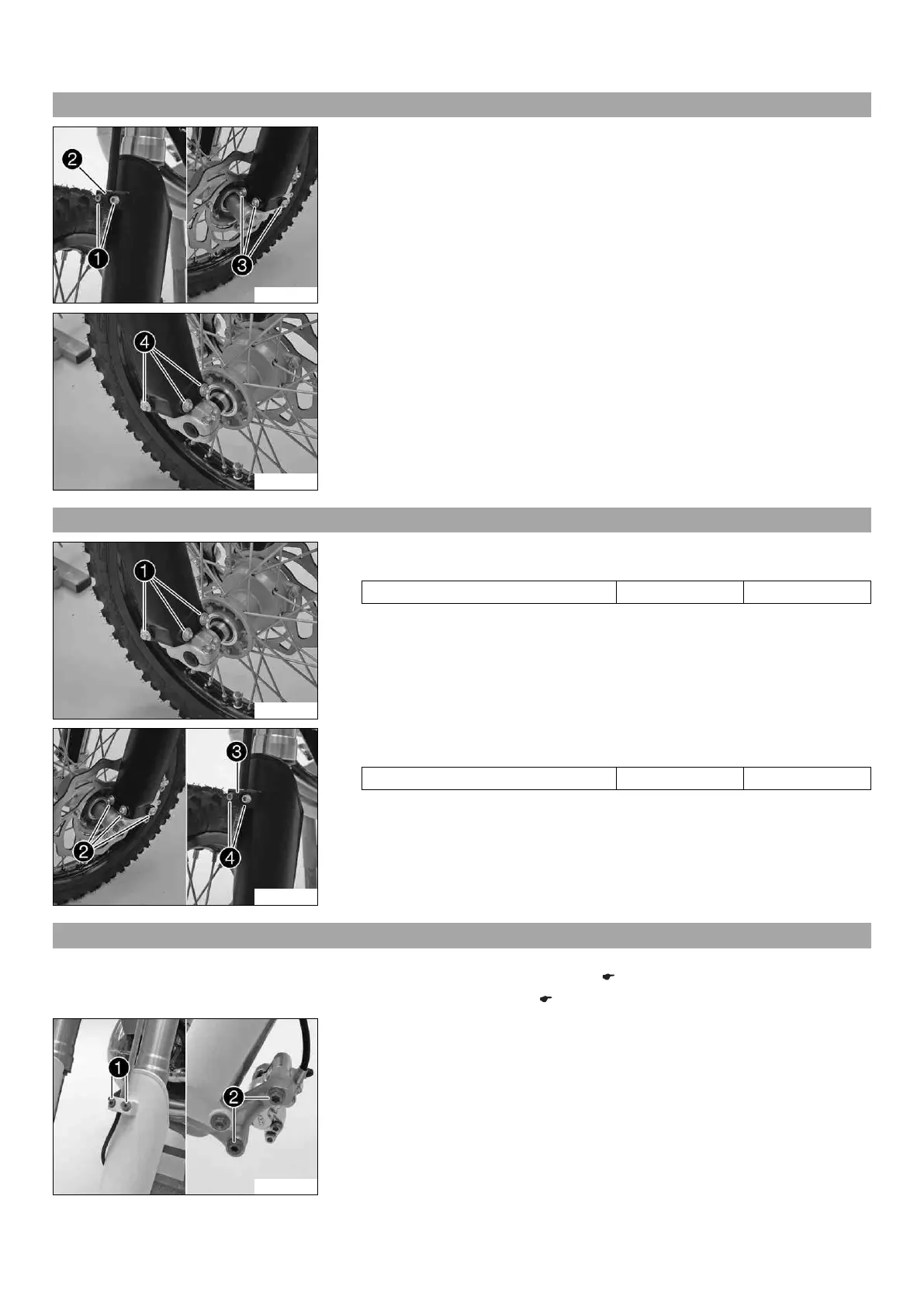

11 MAINTENANCE WORK ON THE CHASSIS 28
11.4 Removing the fork protector x
700431-01
– Remove screws 1. Take off clamp 2.
– Remove screws 3 on the left fork leg. Take off the fork protector.
700432-01
– Remove screws 4 on the right fork leg. Take off the fork protector.
11.5 Installing the fork protector x
700432-10
– Position the fork protection on the right fork leg. Mount and tighten screws 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
700433-01
– Position the fork protection on the left fork leg. Mount and tighten screws 2.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the brake line. Mount clamp 3.
– Mount the screws 4.
11.6 Removing the fork legs x
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 27)
–
Remove the front wheel. x ( p. 55)
601593-10
Main work
– Remove screws 1 and take off the clamp.
– Remove screws 2 and take off the brake caliper.
– Hang the brake caliper and the brake line loosely to the side.

KTM 50 SX 2015 Specifications

General

Engine Type	Single-cylinder, 2-stroke
Displacement	49 cc
Cooling System	Liquid cooled
Transmission	Automatic
Rear Suspension	WP monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	684 mm
Starter	Kickstarter
Front Suspension	WP upside-down Ø 35 mm
Weight	40 kg
Bore x Stroke	39.5 mm x 40 mm
Front Tire	2.50-12
Rear Tire	2.75-10
