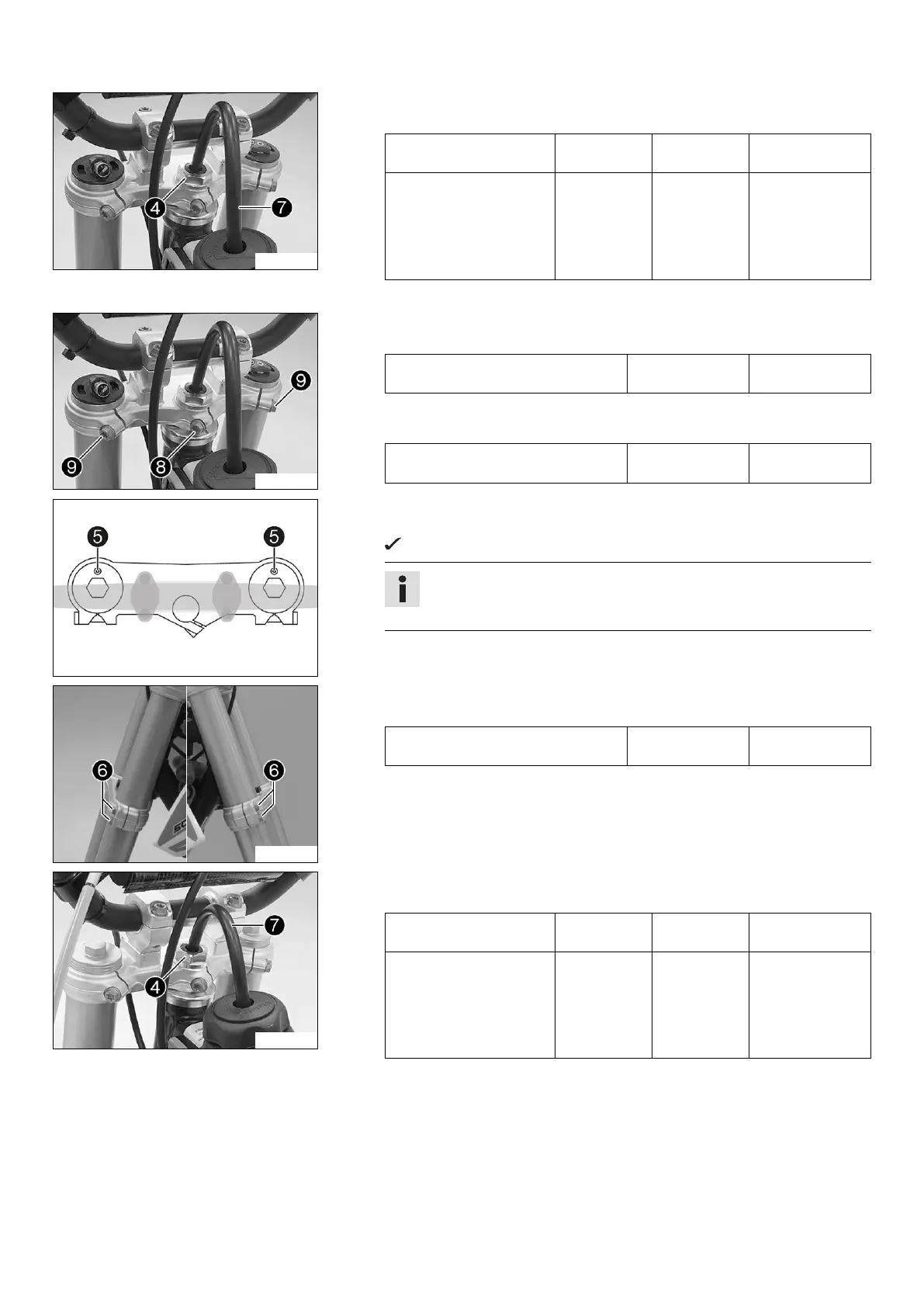

KTM 50 SX 2017 User Manual

11 SERVICE WORK ON THE CHASSIS 39
V00275-10
–
Tighten nut

.
Guideline
Nut, steering head M20x1.5 10 Nm
(7.4 lbf ft)
–
Nut, steering head M20x1.5 9 Nm
(6.6 lbf ft)
Only applies
when using:
Holding wrench
for steering
head bearing
(45229050000)
–
Position the fuel tank breather

in the steering stem.
V00275-11
–
Tighten screw

.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
H01183-10
(50 SX Mini)
– Position the fork legs.
Bleeder screws

are positioned toward the front.
Info
The second milled groove in the fork leg must be flush with the upper
edge of the upper triple clamp.
V00274-10
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
V00283-11
–
Tighten nut

.
Guideline
Nut, steering head M20x1.5 10 Nm
(7.4 lbf ft)
–
Nut, steering head M20x1.5 9 Nm
(6.6 lbf ft)
Only applies
when using:
Holding wrench
for steering
head bearing
(45229050000)
–
Position the fuel tank breather

in the steering stem.
