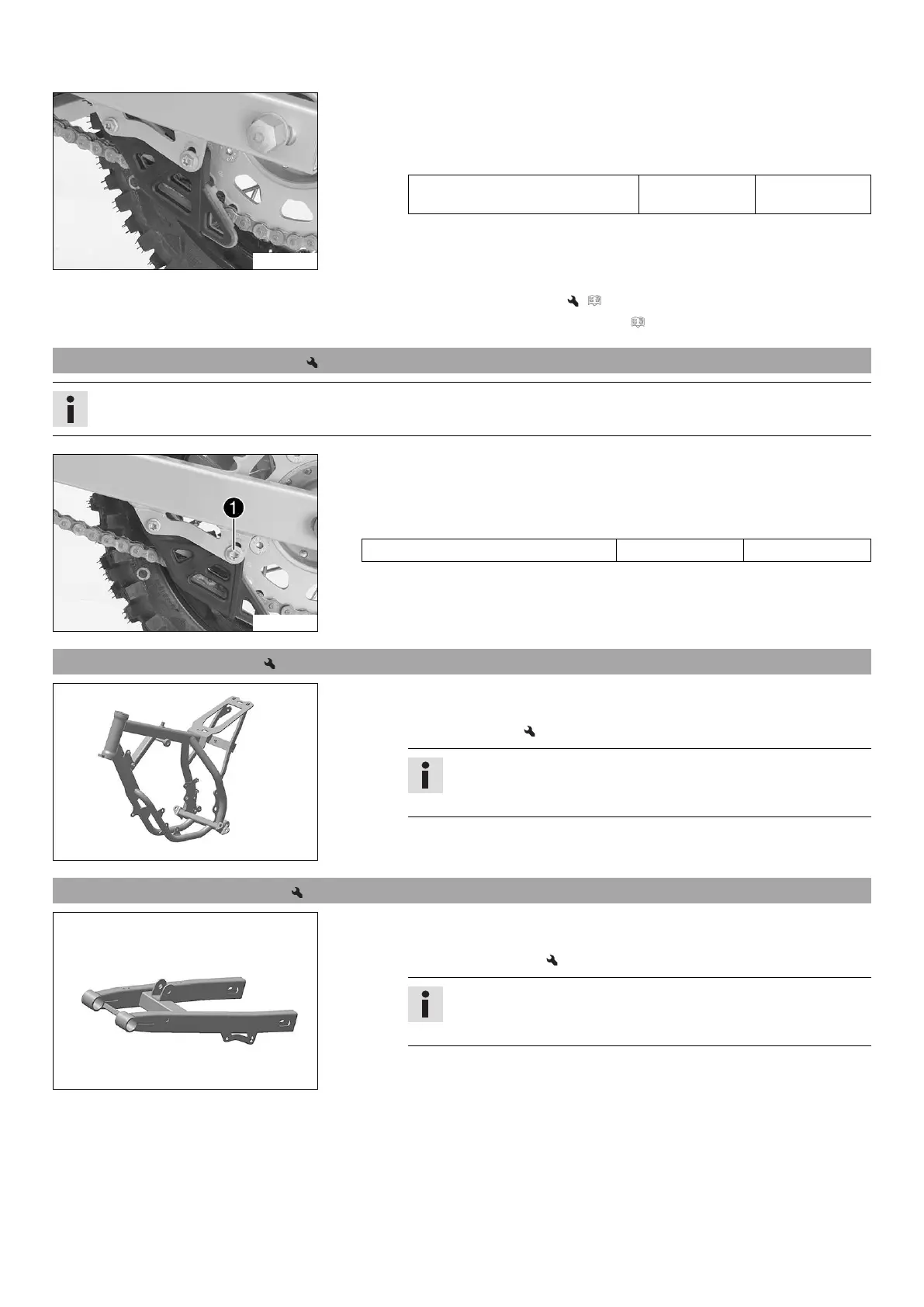

11 SERVICE WORK ON THE CHASSIS 54
H00095-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Finishing work
– Install the engine sprocket cover. ( p. 50)
– Remove the motorcycle from the lift stand. ( p. 34)
11.37 Adjusting the chain guide
Info
The size of the chain wheel varies with the number of teeth. The chain guide can be adjusted on small sprockets.
H00096-10
–
Loosen screw
.
– Position the chain guide.
– Tighten the screw.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
11.38 Checking the frame
S00876-01
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a mechanical impact:
– Change the frame.
Info
Always replace a frame that has been damaged due to a mechanical
impact. Repair of the frame is not authorized by KTM.
11.39 Checking the swingarm
S00877-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or deformation:
– Change the swingarm.
Info
Always change a damaged swingarm. Repair of the swingarm is not
authorized by KTM.
