ENGLISH
20
Exhaust system

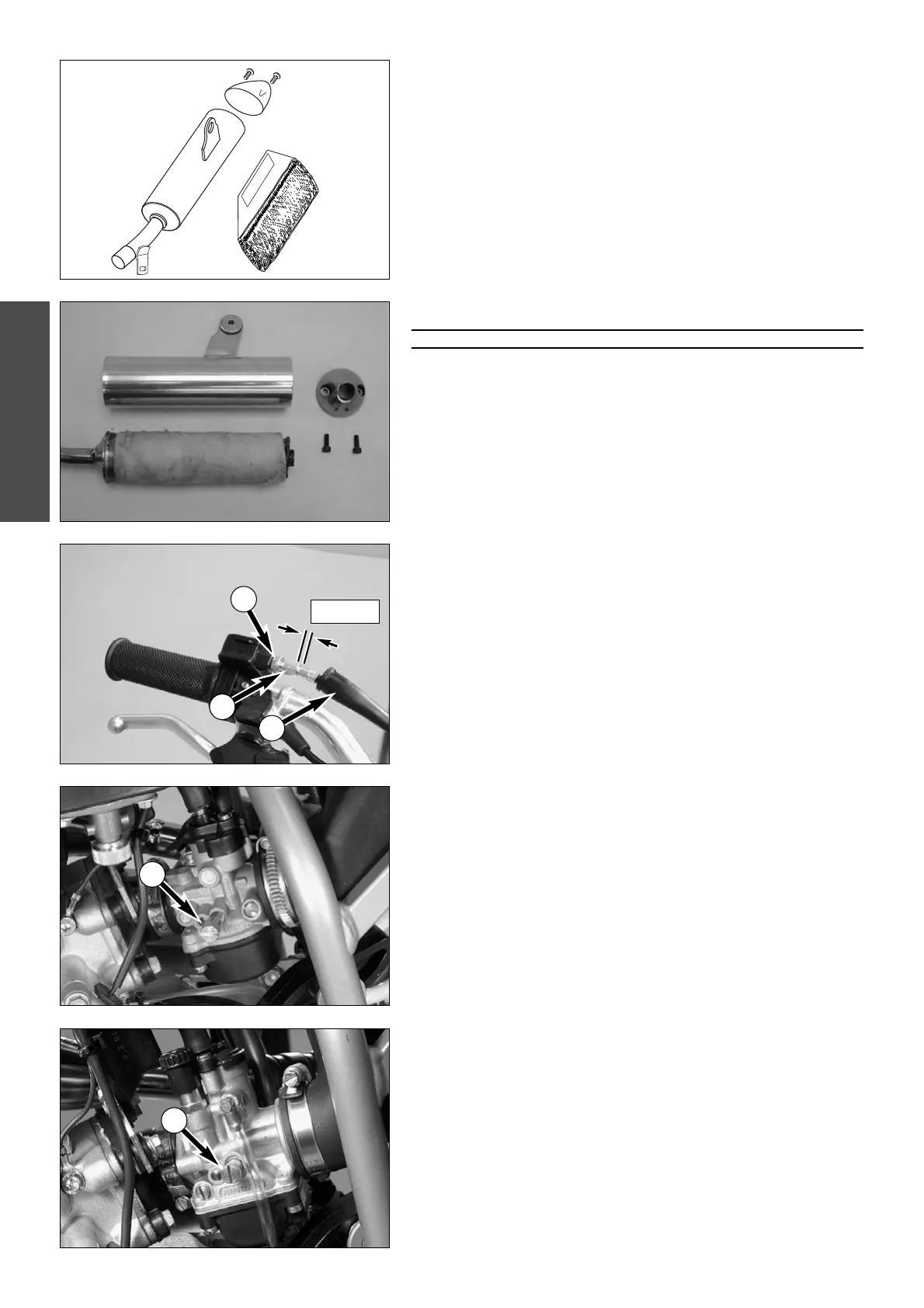

The silencer is filled with glass-fiber yarn for damping. When in use, the
glass-fiber yarn becomes loose or coked with oil carbon. This can lead to a
power loss and a reduction of the silencer damping. The glass-fiber yarn
packing can be replaced in a few easy steps.
To replace, remove the silencer from the vehicle and mark the position of
the outer tube
1 to the inner tube 2. Remove screws 3 and the end cap
4. Pull of the outer tube and remove the old glass-fiber yarn packing 5
from the inner tube. Thoroughly clean all parts.
To assemble, mount a new glass-fiber yarn packing onto the inner tube (see
illustration) and slide into the outer tube. Mount end cap and fix with
scews
3. Before tightening the screws, turn the outer tube until they match
the positions you marked. Mount the silencer and check the exhaust system
for tightness.
NOTE: Glass fiber yarn packages are offered by your licensed KTM dealer.
WARNING
T
HE EXHAUST SYSTEM BECOMES VERY HOT WHILE THE MOTORCYCLE IS RUNNING
. TO
AVOID BURNS
DO NOT START WORK ON THE EXHAUST SYSTEM UNTIL IT HAS PROPERLY
COOLED DOWN
.
Adjusting the throttle cable *
There must always be a 3 to 5 mm (0.1 to 0.2 in) play in the throttle cable.
To check this, move back the protective cover
6 on the throttle grip. You
must be able to lift the outer covering of the cable 3-5 mm from the adju-
sting screw
7, until resistance is felt.
To adjust, loosen the counter nut
8 and turn the adjusting screw accor-
dingly. Finally tighten counter nut and slide the protective cover back on.
Adjusting the idle speed (Dell’Orto PHVA 14 DS) *
The idle speed can be adjusted with screw 9.
The idle speed is increased by turning clockwise.
The idle speed is reduced by turning counter-clockwise.
Adjusting the idle speed (Dell’Orto PHBG 19 BS) *
The idle speed can be adjusted with screw bk.
The idle speed is increased by turning clockwise.
The idle speed is reduced by turning counter-clockwise.
3-5 mm
6
8
7
9
10
3
5
4
2
1
