KTM 690 Enduro R 2018 User Manual

12 BRAKE SYSTEM
138

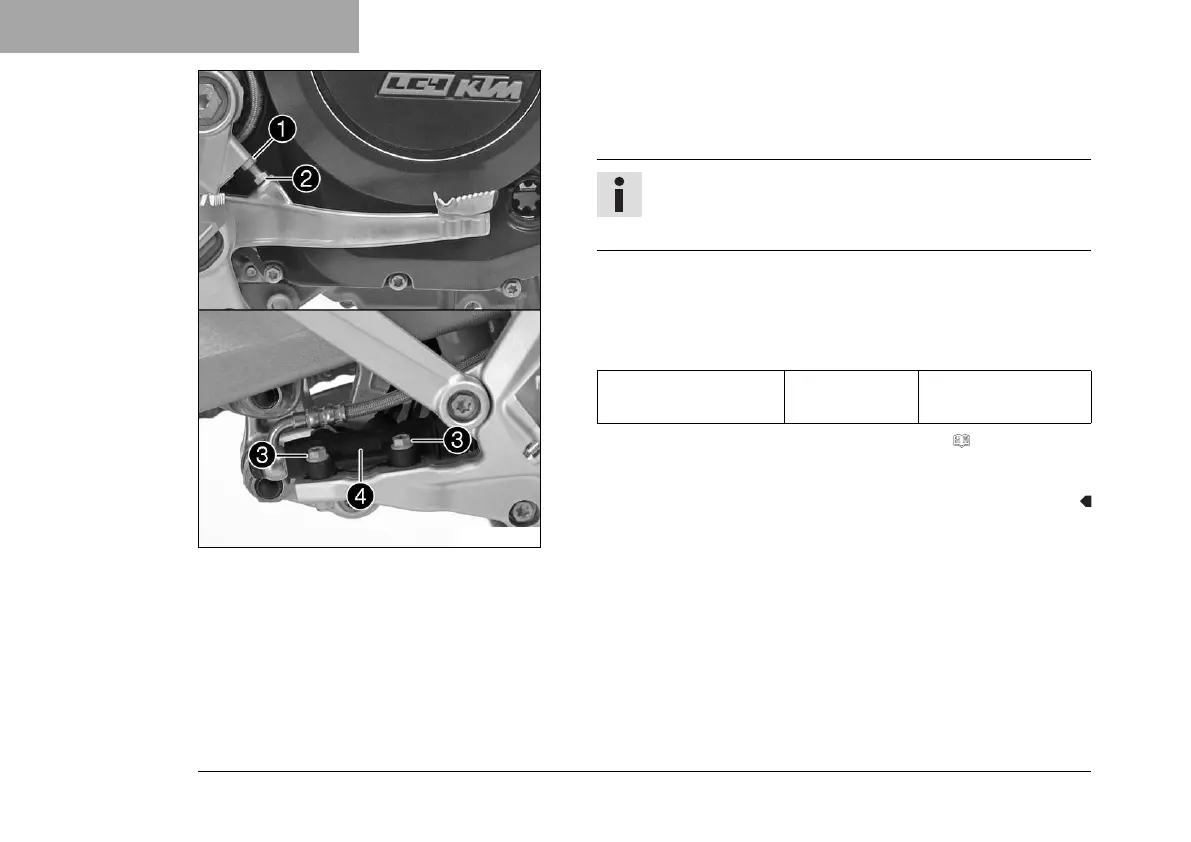

B01291-10
–
Loosen fittings
3
on foot brake cylinder
4
.
– To adjust the basic position of the foot brake lever individually,
loosen nut
1
and turn screw
2
accordingly.
Info
The range of adjustment is limited. The screw must be
screwed into the footrest bracket by at least four turns.
–
Position foot brake cylinder
4
so that the foot brake lever has
the necessary free travel.
–
Mount and tighten fittings
3
.
Guideline
Screw connection,
foot brake cylinder
M6 10 Nm (7.4 lbf ft)
– Check the free travel of the foot brake lever. ( p. 136)
–
Tighten nut
1
.

KTM 690 Enduro R 2018 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP shock absorber with Pro-Lever linkage
Rear Brake	Brembo single-piston floating caliper, 240 mm disc
Front Tire	90/90-21
Rear Tire	140/80-18
Seat Height	910 mm
Ground Clearance	270 mm
Fuel Tank Capacity	13.5 liters
Dry Weight	146 kg
Fuel System	Electronic fuel injection (EFI)
Frame	Chromoly steel trellis frame
Front Brake	300 mm disc
ABS	Bosch
Front Wheel	21-inch
Rear Wheel	18-inch
Power	67 hp (49.5 kW) @ 7500 rpm
Wheelbase	1504 mm
