SERIAL NUMBERS 5

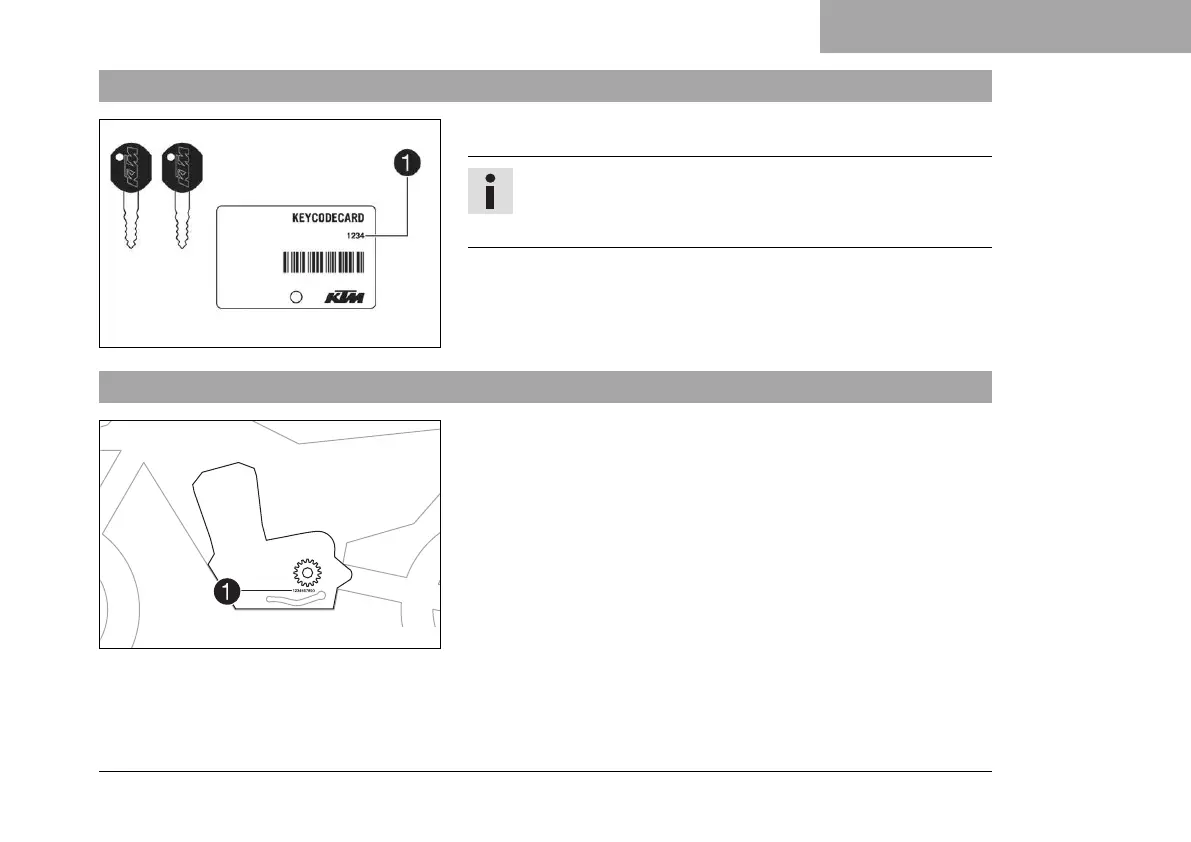

5.3 Key number

402241-10

The key number

can be found on the KEYCODECARD.

Info

You need the key number to order a spare key. Keep

the KEYCODECARD in a safe place.

5.4 Engine number

401949-10

The engine number

is stamped on the left side of the engine

under the engine sprocket.

Default Chapter5
- Table of Contents5
1 Means of Representation 111
- Symbols Used11
- Formats Used12
2 Safety Advice 213
- Use Definition - Intended Use13
- Misuse13
- Degrees of Risk and Symbols14
- Tampering Warning15
- Safe Operation15
- Protective Clothing16
- Work Rules17
- Environment17
- Owner's Manual18
3 Important Notes 319
- Manufacturer and Implied Warranty19
- Operating and Auxiliary Substances19
- Spare Parts, Accessories19
- Service20
- Figures20
- Customer Service20
4 View of Vehicle22
- View of Vehicle, Front Left (Example)22
- View of Vehicle, Rear Right (Example)24
5 Serial Numbers26
- Chassis Number26
- Type Label26
- Key Number27
- Engine Number27
- Fork Part Number28
- Shock Absorber Article Number28
6 Controls 629
- Clutch Lever29
- Hand Brake Lever29
- Throttle Grip30
- Horn Button30
- Light Switch31
- Turn Signal Switch31
- Emergency off Switch32
- Electric Starter Button33
- Ignition/Steering Lock33
- Combination Instrument34
  - Combination Instrument Overview34
- Function Buttons35
- Tachometer35
- Indicator Lamps36
- Display37
- Speed Display38
- Setting the Kilometers or Miles39
- Time40
- Setting the Clock40
- 6.10.10 ODO Display41
- Setting/Resetting Display TRIP 141
- Setting/Resetting Display TRIP 242
- 6.10.13 TRIP F Display43
- 6.10.14 Gear Display44
- 6.10.15 Coolant Temperature Indicator44
- Opening the Filler Cap45
- Closing Filler Cap47
- Seat Unlocking47
- Handrails48
- Passenger Footrest48
- Shift Lever49
- Foot Brake Lever50
- Side Stand50
7 Preparing Foruse52
- Preparing for Use52
- Advice on Preparing for First Use52
- Running in the Engine54
- Loading the Vehicle55
8 Riding Instructions58
- Checks and Maintenance Measures When Preparing for Use58
- Starting the Vehicle59
- Starting off62
- Shifting, Riding62
- Applying the Brakes68
- Stopping, Parking70
- Transport72
- Refueling73
9 Service Schedule76
- Additional Information76
- Required Work76
- Recommended Work79
10 Tuning the Chassis80
- Fork/Shock Absorber80
- Adjusting the Compression Damping of the Fork80
- Adjusting the Rebound Damping of the Fork82
- Compression Damping of the Shock Absorber83
- Adjusting the Low-Speed Compression Damping of the Shock Absorber83
- Adjusting the High-Speed Compression Damping of the Shock Absorber85
- Adjusting the Rebound Damping of the Shock Absorber86
- Measuring the Unloaded Rear Wheel Sag87
- Checking the Static Sag of the Shock Absorber89
- Checking the Riding Sag of the Shock Absorber90
- Adjusting the Spring Preload of the Shock Absorber91
- Adjusting the Riding Sag93
- Handlebar Position94
- Adjusting Handlebar Position95
- Service Work on the Chassis 1197
- Raising the Motorcycle with a Lift Stand97
- Removing the Motorcycle from the Lift Stand97
- Cleaning the Dust Boots of the Fork Legs98
- Loosening the Fork Protection100
- Positioning the Fork Protector100
- Checking the Play of the Steering Head Bearing101
- Adjusting the Play of the Steering Head Bearing103
- Removing the Seat104
- Mounting the Seat104
- Removing the Air Filter105
- Installing the Air Filter106
- Checking the Chain for Dirt107
- Cleaning the Chain108
- Checking the Chain Tension109
- Adjusting the Chain Tension111
- Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide113
- Adjusting Chain Guide118
  - Adjusting the Basic Position of the Clutch Lever119
  - Checking/Correcting the Fluid Level of the Hydraulic Clutch120
  - Removing the Engine Guard122
  - Installing the Engine Guard123
12 Brake System124
- Antilock Brake System (ABS)124
- Adjusting the Basic Position of the Hand Brake Lever126
- Checking the Brake Discs127
- Checking Brake Fluid Level of Front Brake128
- Topping up Brake Fluid of Front Brake129
- Checking the Front Brake Linings132
- Changing the Front Brake Linings133
- Checking the Free Travel of Foot Brake Lever138
- Adjusting the Basic Position of the Foot Brake Lever139
- Checking Rear Brake Fluid Level141
- Adding Rear Brake Fluid142
- Checking the Rear Brake Linings144
- Changing the Rear Brake Linings145
13 Wheels, Tires150
- Removing the Front Wheel150
- Installing the Front Wheel152
- Removing the Rear Wheel154
- Installing the Rear Wheel156
- Checking the Rear Hub Rubber Dampers158
- Checking the Tire Condition160
- Checking the Tire Air Pressure162
- Checking the Spoke Tension164
14 Electrical System166
- Removing the Battery166
- Installing the Battery169
- Recharging the Battery171
- Changing the Main Fuse174
- Changing the ABS Fuses176
- Changing the Fuses of Individual Power Consumers178
- Removing the Headlight Mask with the Headlight181
- Installing the Headlight Mask with the Headlight182
- Changing the Headlight Bulb183
- Changing the Parking Light Bulb185
- Changing the Turn Signal Bulb186
- Checking the Headlight Setting188
- Adjusting the Headlight Range189
- Diagnostics Connector190
15 Cooling System 15191
- Checking the Antifreeze and Coolant Level192
- Checking the Coolant Level195
- Draining the Coolant197
- Filling/Bleeding the Cooling System199
- Changing the Coolant201
16 Tuning the Engine 16205
- Adjusting the Engine Characteristic205
- Checking the Basic Position of the Shift Lever206
- Adjusting the Basic Position of the Shift Lever207
17 Service Work on the Engine 17209
- Checking the Engine Oil Level209
- Changing the Engine Oil and Filter, Cleaning the Oil Screens210
- Draining the Engine Oil210
- Removing the Oil Filter212
- Cleaning the Oil Screens213
- Installing the Oil Filter216
- Filling up with Engine Oil216
- Adding Engine Oil218
18 Cleaning, Care220
- Cleaning the Motorcycle220
- Checks and Maintenance Steps for Winter Operation223
19 Storage 19225
- Preparing for Use after Storage227
20 Troubleshooting228
21 Blink Code232
22 Technical Data 22239
- Engine239
- Engine Tightening Torques241
- Capacities246
- Engine Oil246
- Coolant246
- Fuel246
- Chassis246
- Electrical System248
- Tires249
- Fork250
- Shock Absorber251
- Chassis Tightening Torques252
23 Substances 23259
24 Auxiliary Substances 24263
25 Standards 25265
26 Index of Special Terms266
27 List of Abbreviations 27267
28 List of Symbols268
- Red Symbols268
- Yellow and Orange Symbols268
- Green and Blue Symbols269
- Index270
