KTM 690 Enduro R 2018 User Manual

WHEELS, TIRES 13
155
M01381-10
–

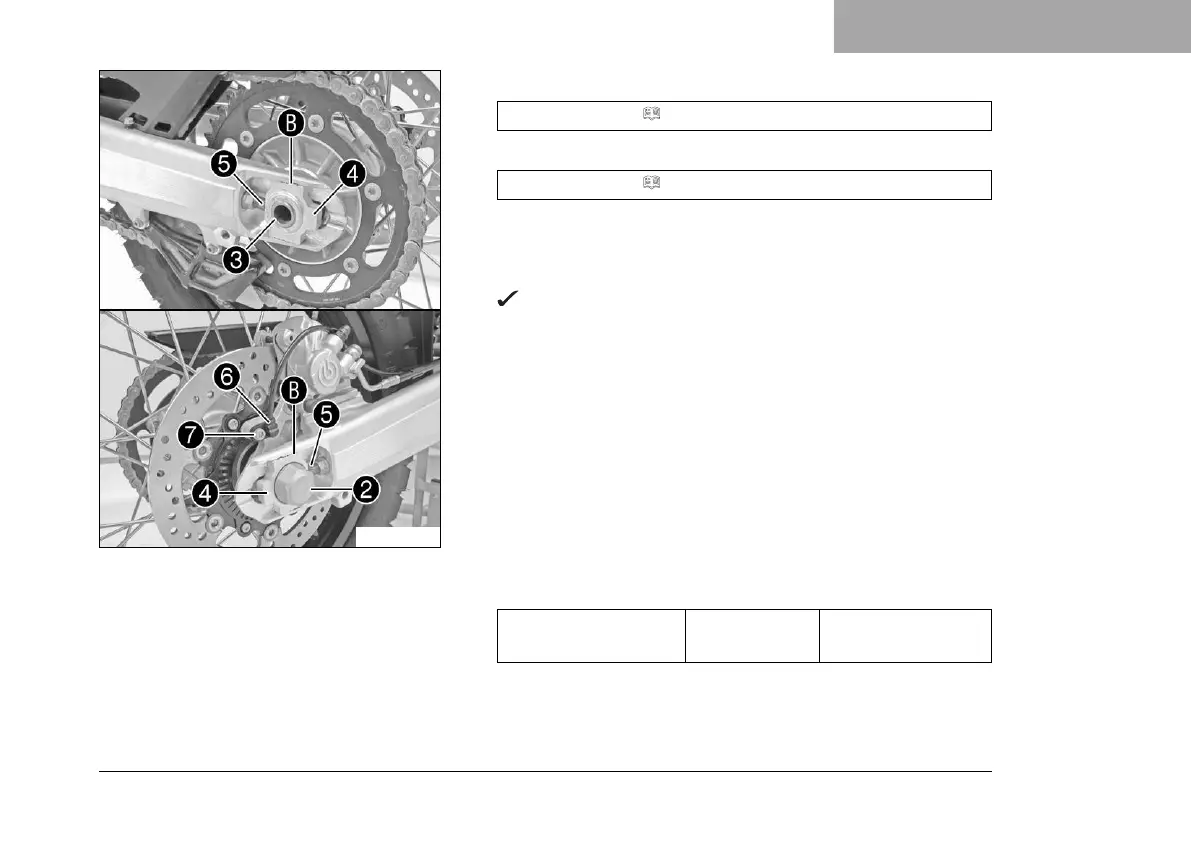

Clean and grease the thread of the wheel spindle and nut
2
.
Long-life grease ( p. 261)
– Clean and grease the wheel spindle.
Long-life grease ( p. 261)
– Mount the rubber damper and rear sprocket carrier in the rear
wheel.
– Position the rear wheel.
The brake linings are correctly positioned.
– Push the rear wheel forward as far as possible and lay the
chain on the rear sprocket.
–
Mount wheel spindle
3
and chain adjuster
4
. Mount
nut
2
, but do not tighten it yet.
–
Make sure that chain adjusters
4
are fitted correctly on
adjusting screws
5
.
– Make sure that the markings on the left and right chain
adjusters are in the same position relative to reference
marks
B
. The rear wheel is then correctly aligned.
–
Tighten nut
2
.
Guideline
Nut, rear wheel spin-
dle
M25x1.5 90 Nm (66.4 lbf ft)

KTM 690 Enduro R 2018 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP shock absorber with Pro-Lever linkage
Rear Brake	Brembo single-piston floating caliper, 240 mm disc
Front Tire	90/90-21
Rear Tire	140/80-18
Seat Height	910 mm
Ground Clearance	270 mm
Fuel Tank Capacity	13.5 liters
Dry Weight	146 kg
Fuel System	Electronic fuel injection (EFI)
Frame	Chromoly steel trellis frame
Front Brake	300 mm disc
ABS	Bosch
Front Wheel	21-inch
Rear Wheel	18-inch
Power	67 hp (49.5 kW) @ 7500 rpm
Wheelbase	1504 mm
