KTM 690 Enduro R 2018 User Manual

WHEELS, TIRES 13
157

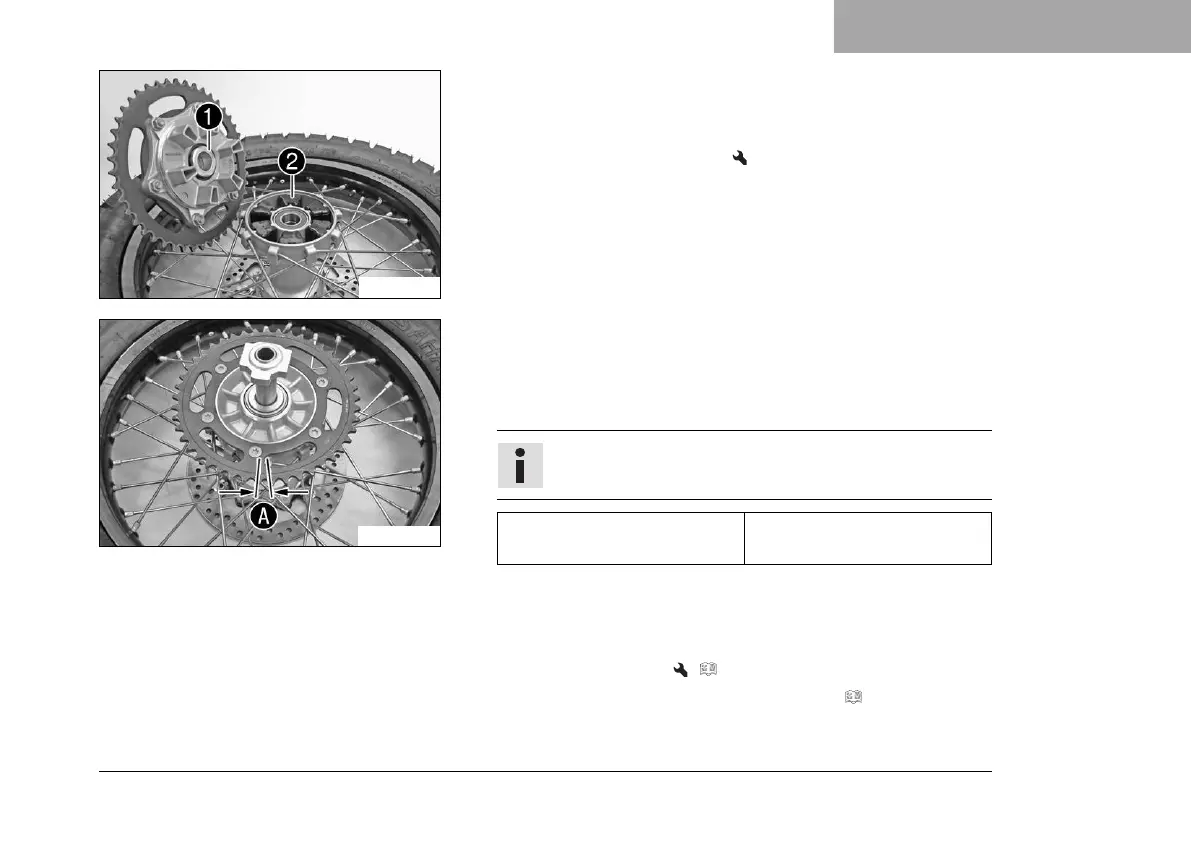

S02205-10
Main work
–
Check bearing
1
.
» If the bearing is damaged or worn:
– Replace the bearings.
–
Check rubber dampers
2
of the rear hub for damage and
wear.
» If the rubber dampers of the rear hub are damaged or
worn:
– Change all rubber dampers in the rear hub.
B01973-10
– Lay the rear wheel on a workbench with the rear sprocket fac-
ing upwards and insert the wheel spindle in the hub.
–
To check play
A
, hold the rear wheel tight and try to turn the
rear sprocket with your hand.
Info
Measure the play on the outside of the rear sprocket.
Play in rubber dampers, rear
wheel
≤ 5 mm (≤ 0.2 in)
»
If clearance
A
larger than the specified value:
– Change all rubber dampers in the rear hub.
Finishing work
– Install the rear wheel. ( p. 154)
– Remove the motorcycle from the lift stand. ( p. 95)

KTM 690 Enduro R 2018 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP shock absorber with Pro-Lever linkage
Rear Brake	Brembo single-piston floating caliper, 240 mm disc
Front Tire	90/90-21
Rear Tire	140/80-18
Seat Height	910 mm
Ground Clearance	270 mm
Fuel Tank Capacity	13.5 liters
Dry Weight	146 kg
Fuel System	Electronic fuel injection (EFI)
Frame	Chromoly steel trellis frame
Front Brake	300 mm disc
ABS	Bosch
Front Wheel	21-inch
Rear Wheel	18-inch
Power	67 hp (49.5 kW) @ 7500 rpm
Wheelbase	1504 mm
