KTM 690 Enduro R 2018 User Manual

16 TUNING THE ENGINE
206
401951-10
–

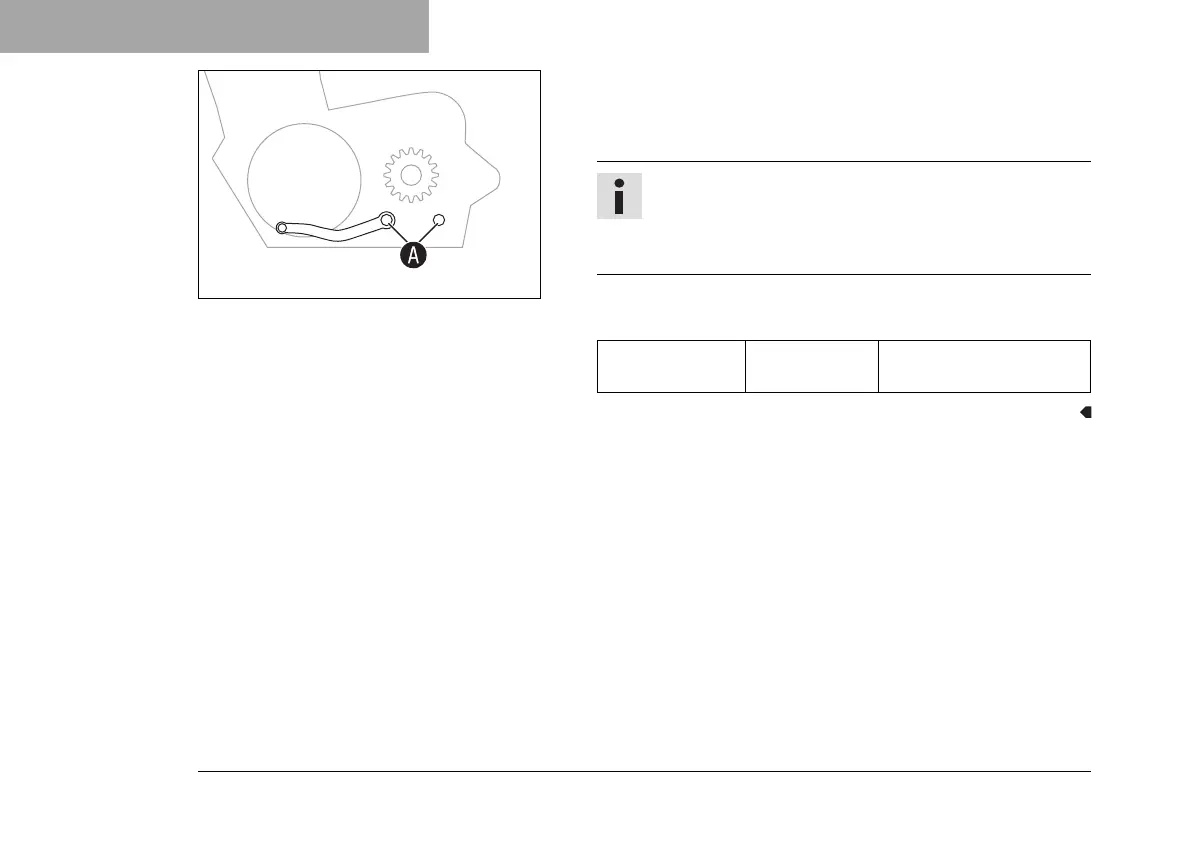

Clean gear teeth
A
of the shift lever and shift shaft.
–
Mount shift lever
2
on the shift shaft in the required position
and engage the gearing.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any
other vehicle components during the shift procedure.
–
Mount and tighten screw
1
with washers.
Guideline
Screw, shift
lever
M6 14 Nm (10.3 lbf ft)
Loctite
®
243™

KTM 690 Enduro R 2018 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP shock absorber with Pro-Lever linkage
Rear Brake	Brembo single-piston floating caliper, 240 mm disc
Front Tire	90/90-21
Rear Tire	140/80-18
Seat Height	910 mm
Ground Clearance	270 mm
Fuel Tank Capacity	13.5 liters
Dry Weight	146 kg
Fuel System	Electronic fuel injection (EFI)
Frame	Chromoly steel trellis frame
Front Brake	300 mm disc
ABS	Bosch
Front Wheel	21-inch
Rear Wheel	18-inch
Power	67 hp (49.5 kW) @ 7500 rpm
Wheelbase	1504 mm

Summary

Safety and Operation

Intended Use and Misuse

Defines proper use and consequences of misuse for motorcycle operation.

Risk Levels and Warning Symbols

Explains hazard symbols and their associated risk levels for safety.

Safe Operation and Protective Clothing

Outlines essential safety measures for operating the motorcycle.

Vehicle Controls and Instrumentation

Handlebar Controls Overview

Identifies and explains various controls located on the handlebars.

Combination Instrument Functions

Details the display, indicators, and functions of the instrument cluster.

Pre-Ride and Riding Procedures

Preparing for First Use

Steps and advice for preparing the motorcycle before its initial rides.

Riding Instructions and Techniques

Guidance on starting, shifting, braking, and general riding practices.

Maintenance and Service

Service Schedule Overview

Outlines required and recommended maintenance tasks at various intervals.

Engine Oil and Filter Service

Procedures for changing engine oil and replacing the oil filter for optimal performance.

Brake System Maintenance

Guidance on checking and maintaining front and rear brake systems.

Chassis, Electrical, and Cooling Systems

Chassis Tuning and Adjustments

Instructions for adjusting suspension and handlebar positions for optimal handling.

Battery and Fuse Servicing

Procedures for battery removal, installation, recharging, and fuse replacement.

Cooling System Checks and Service

Steps for checking coolant levels and performing system maintenance.

Troubleshooting and Technical Data

Common Faults and Solutions

Identifies common problems and provides actionable solutions for troubleshooting.

Technical Specifications Overview

Provides detailed technical data including engine, chassis, and electrical system specifications.
