KTM 690 Enduro R 2018 User Manual

SERVICE WORK ON THE ENGINE 17
213
S02215-10
–

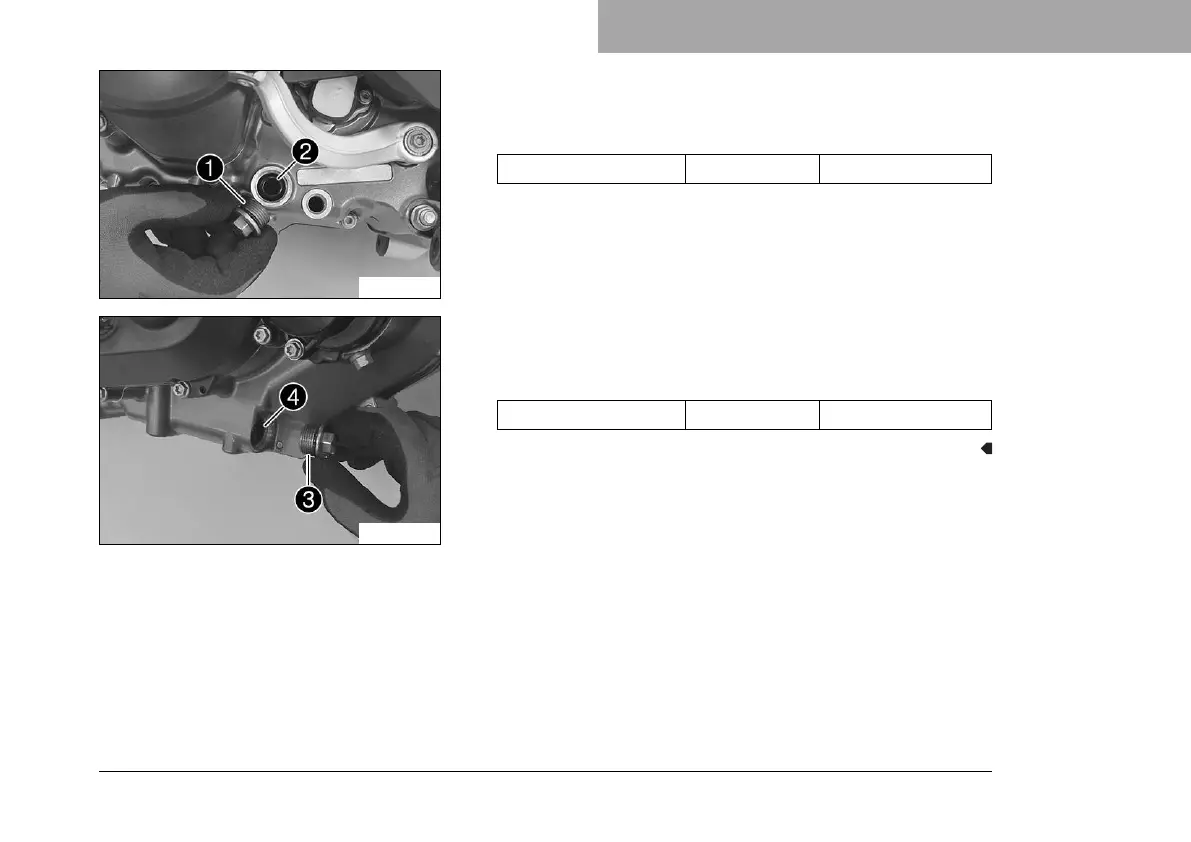

Position oil screen
2
with the O-rings.
–
Mount and tighten screw plug
1
with the O-ring.
Guideline
Plug, oil screen M20x1.5 15 Nm (11.1 lbf ft)
S02216-10
–
Position oil screen
4
with the O-rings.
–
Mount and tighten screw plug
3
with the O-ring.
Guideline
Plug, oil screen M20x1.5 15 Nm (11.1 lbf ft)

KTM 690 Enduro R 2018 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	105 mm x 80 mm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP USD Ø 48 mm
Rear Suspension	WP shock absorber with Pro-Lever linkage
Rear Brake	Brembo single-piston floating caliper, 240 mm disc
Front Tire	90/90-21
Rear Tire	140/80-18
Seat Height	910 mm
Ground Clearance	270 mm
Fuel Tank Capacity	13.5 liters
Dry Weight	146 kg
Fuel System	Electronic fuel injection (EFI)
Frame	Chromoly steel trellis frame
Front Brake	300 mm disc
ABS	Bosch
Front Wheel	21-inch
Rear Wheel	18-inch
Power	67 hp (49.5 kW) @ 7500 rpm
Wheelbase	1504 mm
