KTM 790 DUKE 2018 User Manual

15 WHEELS, TIRES
176

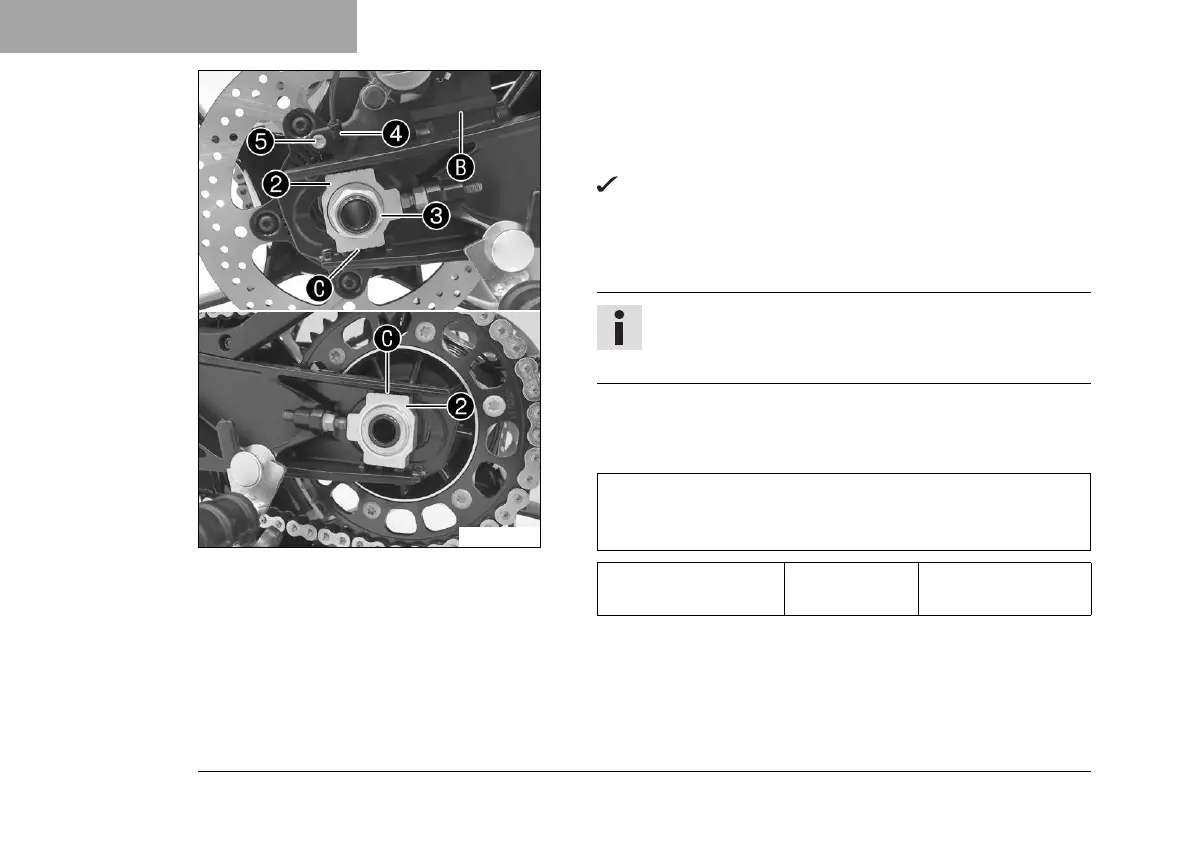

V01242-12
–
Engage the thurst bearing of brake caliper support
B
and the
swingarm.
– Lift the rear wheel into the swingarm, position it, and insert
the wheel spindle.
The brake linings are correctly positioned.
– Place the chain on the sprocket.
–
Position chain adjuster
2
. Mount nut
3
, but do not tighten
it yet.
Info
Mount the left and right chain adjusters in the same
position.
–
Make sure that chain adjusters
2
are fitted correctly on the
adjusting screws. Tighten nut
3
.
Guideline
In order for the rear wheel to be correctly aligned, the mark-
ings on the left and right chain adjusters must be in the
same position relative to reference markings
C
.
Nut, rear wheel spin-
dle
M25x1.5 90 Nm (66.4 lbf ft)
–
Position wheel speed sensor
4
in the drill hole.
–
Mount and tighten screw
5
.

KTM 790 DUKE 2018 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, parallel twin
Displacement	799 cc
Bore x Stroke	88 mm x 65.7 mm
Compression Ratio	12.7:1
Starter	Electric
Transmission	6-speed
Front Tire	120/70 ZR 17
Rear Tire	180/55 ZR 17
Seat Height	825 mm
Dry Weight	169 kg
Power	105 hp (77 kW) @ 9, 000 rpm
Torque	87 Nm @ 8, 000 rpm
Fuel System	Electronic fuel injection
Frame	Steel trellis frame
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Brake	2 x 300 mm discs, 4-piston calipers
Rear Brake	240 mm disc, single-piston caliper
ABS	Bosch 9.1MP Two Channel ABS (incl. Cornering ABS and Supermoto mode)
Fuel Tank Capacity	14 liters
