KTM 790 Duke 2019 User Manual

8 ERGONOMICS
96
Info
The range of adjustment is limited.
The screw must be screwed in by at least five full turns.
Screwing the push rod into the ball joint adjusts the
foot brake lever downwards.
Screwing the push rod out of the ball joint adjusts the
brake lever upwards.

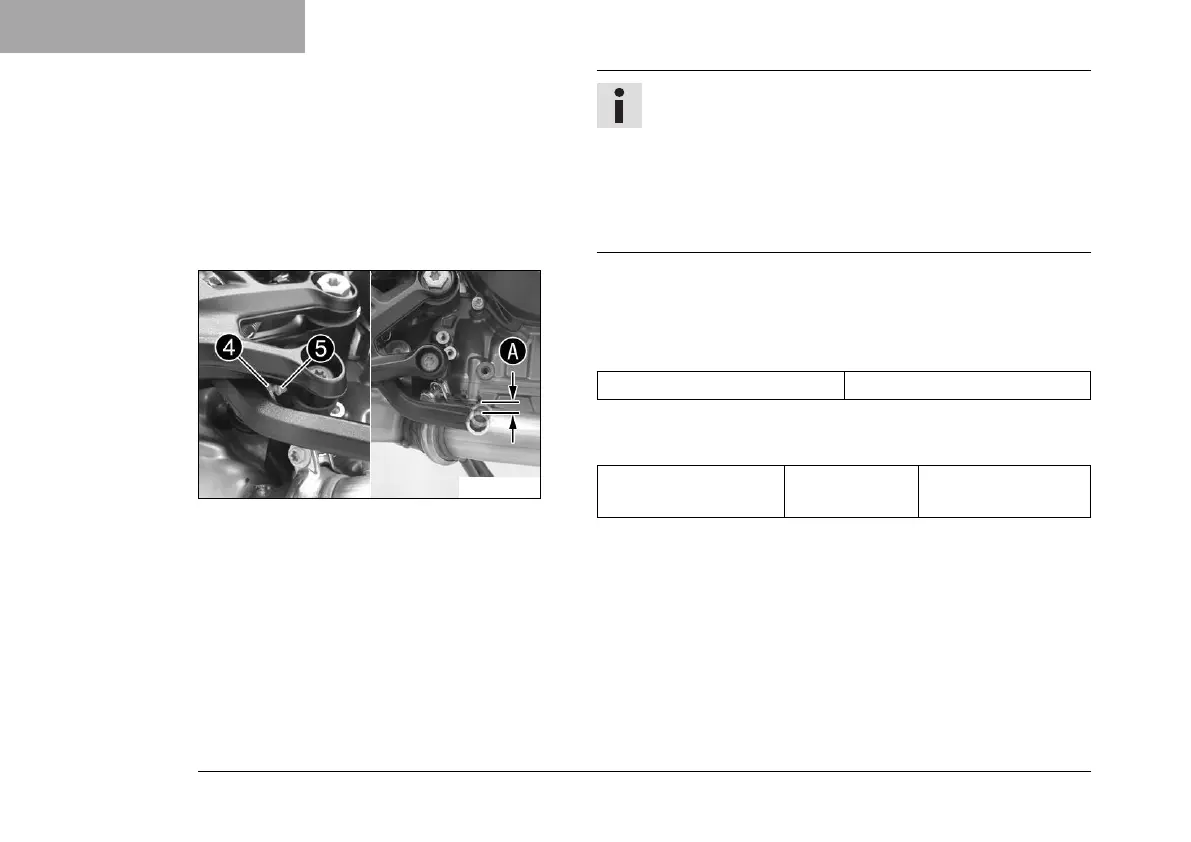

V01230-10
–
Loosen nut
4
and turn screw
5
correspondingly until the
free travel
A
is present. If necessary, adjust the basic posi-
tion of the foot brake lever.
Guideline
Free travel at foot brake lever 3 … 5 mm (0.12 … 0.2 in)
–
Hold screw
5
and tighten nut
4
.
Guideline
Remaining nuts,
chassis
M6 10 Nm (7.4 lbf ft)

KTM 790 Duke 2019 Specifications

General

Displacement	799 cc
Bore x Stroke	88 mm x 65.7 mm
Compression Ratio	12.7:1
Power	105 hp (77 kW) @ 9, 000 rpm
Torque	87 Nm @ 8, 000 rpm
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Rear Suspension	WP monoshock
Front Tire	120/70 ZR 17
Rear Tire	180/55 ZR 17
Seat Height	825 mm
Dry Weight	169 kg
Engine Type	2-cylinder, 4-stroke, parallel twin
Frame	Chromoly-steel trellis frame, powder coated
Front Suspension	WP upside-down fork, 43 mm
Front Brake	2 x 300 mm disc, 4-piston radial fixed caliper
Rear Brake	240 mm disc with single-piston caliper
Fuel Tank Capacity	14 liters
ABS	Bosch 9.1 MP (incl. Cornering-ABS and Supermoto mode)
