10 TUNING THE CHASSIS
42
– Install the main silencer. ( p. 67)

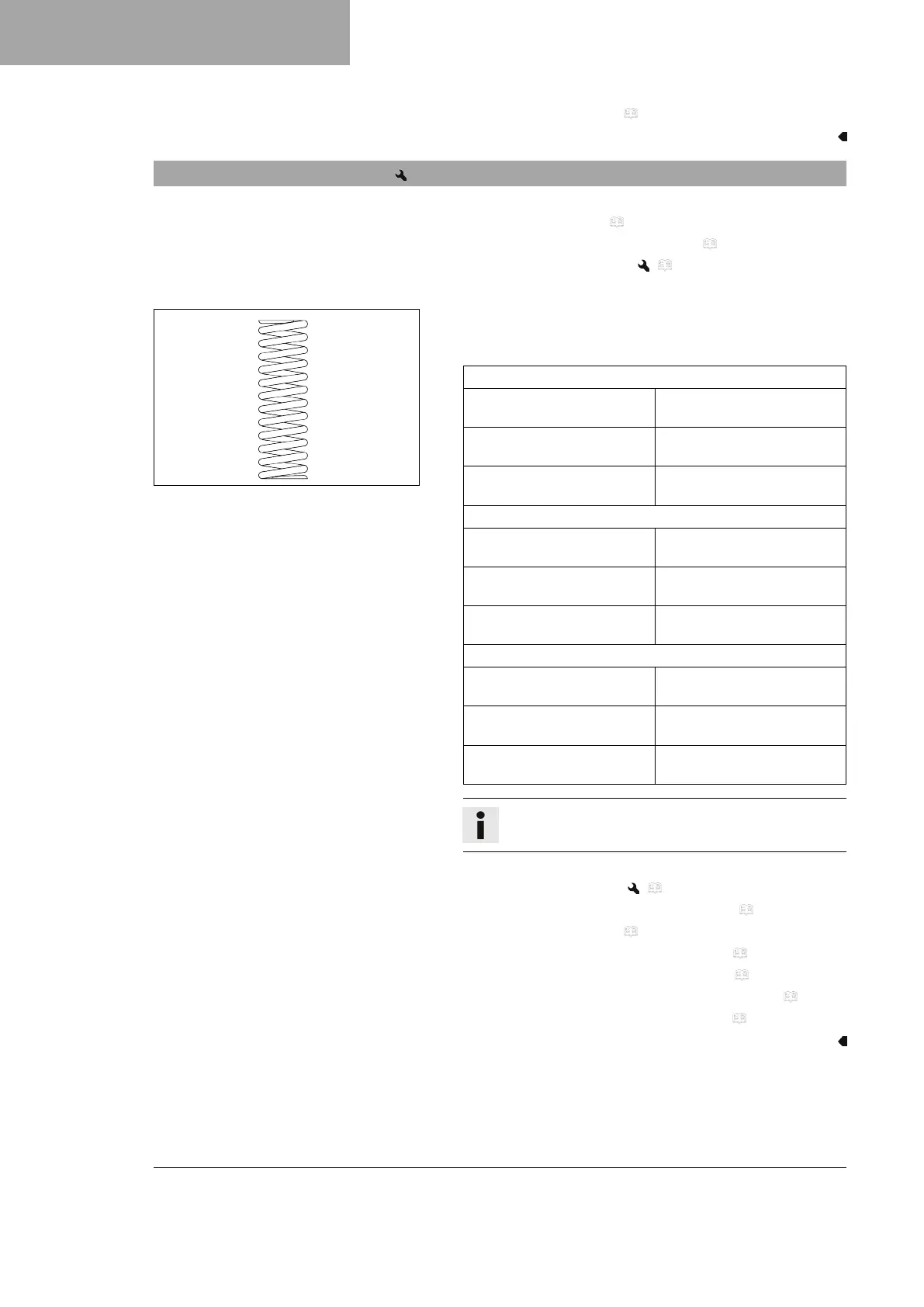

10.11 Adjusting the riding sag
Preparatory work
– Remove main silencer. ( p. 67)
– Raise the motorcycle with a lift stand. ( p. 49)
– Remove the shock absorber. ( p. 59)
– After removing the shock absorber, clean it thoroughly.
B00292-10
Main work
– Choose and mount a suitable spring.
Guideline
Spring rate (SX‑F EU/AR)
Weight of rider: 65 …
75 kg (143 … 165 lb.)
42 N/mm (240 lb/in)
Weight of rider: 75 …
85 kg (165 … 187 lb.)
45 N/mm (257 lb/in)
Weight of rider: 85 …
95 kg (187 … 209 lb.)
48 N/mm (274 lb/in)
Spring rate (SX‑F US)
Weight of rider: 65 …
75 kg (143 … 165 lb.)
42 N/mm (240 lb/in)
Weight of rider: 75 …
85 kg (165 … 187 lb.)
45 N/mm (257 lb/in)
Weight of rider: 85 …
95 kg (187 … 209 lb.)
48 N/mm (274 lb/in)
Spring rate (XC‑F US)
Weight of rider: 65 …
75 kg (143 … 165 lb.)
42 N/mm (240 lb/in)
Weight of rider: 75 …
85 kg (165 … 187 lb.)
45 N/mm (257 lb/in)
Weight of rider: 85 …
95 kg (187 … 209 lb.)
48 N/mm (274 lb/in)
Info
The spring rate is shown on the outside of the spring.
Finishing work
– Install the shock absorber. ( p. 60)
– Check the free travel of the foot brake lever. ( p. 87)
– Install the main silencer. ( p. 67)
– Check the static sag of the shock absorber. ( p. 40)
– Check the riding sag of the shock absorber. ( p. 40)
– Adjust the rebound damping of the shock absorber. ( p. 38)
– Remove the motorcycle from the lift stand. ( p. 49)
