11 SERVICE WORK ON THE CHASSIS
66
Finishing work
– Install the air filter. ( p. 66)
– Install the air filter box cover. ( p. 64)

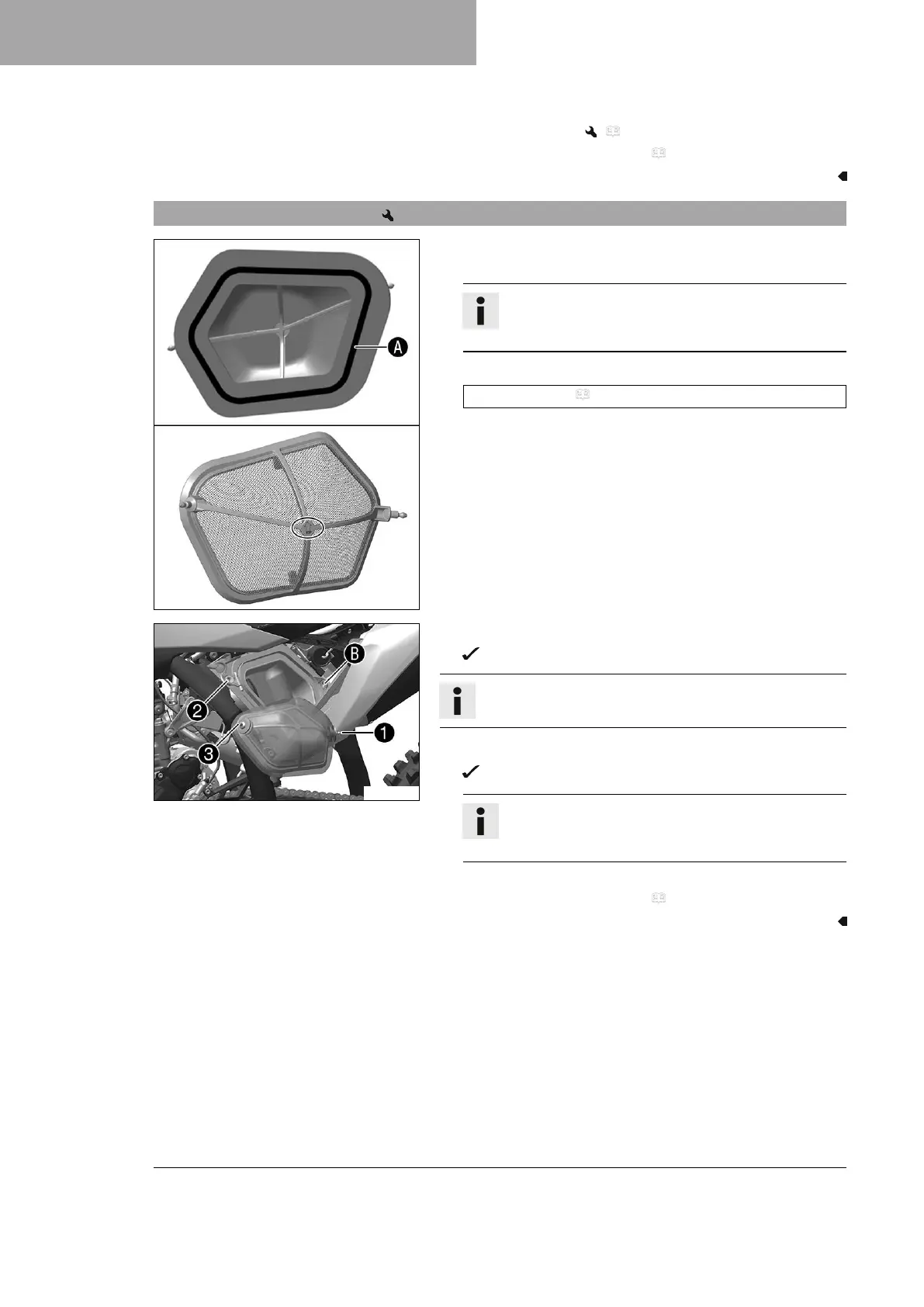

11.26 Installing the air filter
F03779-10
Main work
– Mount the clean air filter on the air filter support.
Info
The marking on the air filter support must face
upwards.
–
Grease the air filter in area
A
.
Long-life grease ( p. 141)
S05358-10
–
Insert air filter and position retaining pin
1
in bushing
B
.
The air filter is correctly positioned.
Info
The marking on the air filter must face upwards.
–
Insert retaining tab
2
.
Retaining pin
3
is secured by retaining tab
2
.
Info
If the air filter is not mounted correctly, dust and dirt
may enter the engine and result in damage.
Finishing work
– Install the air filter box cover. ( p. 64)
