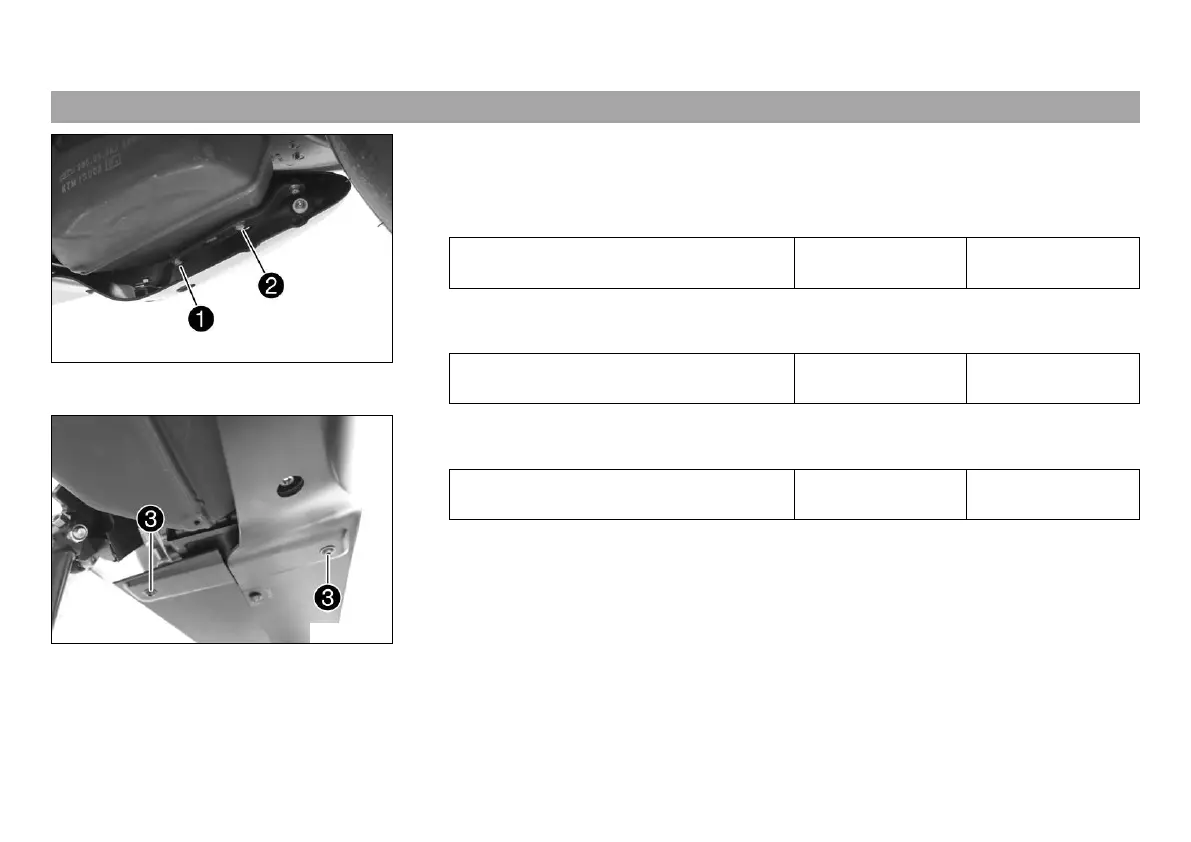

12 SERVICE WORK ON THE CHASSIS 98

12.18 Fitting front spoiler

G01721-14

Main work

– Position the front spoiler.

–

Mount and tighten screw



Guideline

Screw, front spoiler retaining bracket,

rear, on engine

M6 9 Nm (6.6 lbf ft)

–

Mount and tighten screw



Guideline

Screw, front spoiler retaining bracket,

rear, on engine

M6 9 Nm (6.6 lbf ft)

G00977-13

–

Mount and tighten screws



Guideline

Screw, front spoiler retaining bracket,

rear

M6 6 Nm (4.4 lbf ft)
