12
SERVICE
WORK
ON
THE
CHASSIS
98
12.18

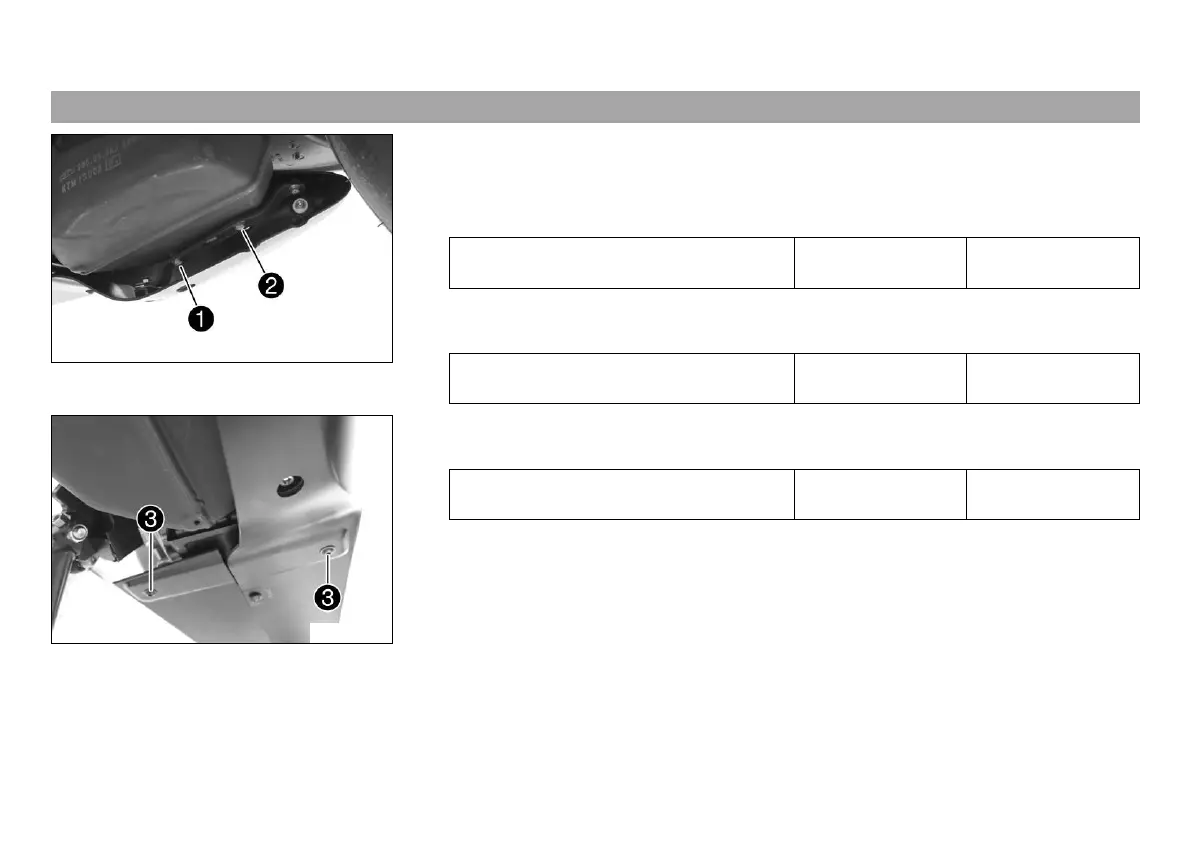

Fitting
front
spoiler
G01721-14
Main
work
–
Position
the
front
spoiler.
–
Mount
and
tighten
screw
.
Guideline
Screw,
front
spoiler
retaining
bracket,
rear,
on
engine
M6
9
Nm
(6.6
lbf
ft)
–
Mount
and
tighten
screw
.
Guideline
Screw,
front
spoiler
retaining
bracket,
rear,
on
engine
M6
9
Nm
(6.6
lbf
ft)
G00977-13
–
Mount
and
tighten
screws
.
Guideline
Screw,
front
spoiler
retaining
bracket,
rear
M6
6
Nm
(4.4
lbf
ft)
99
101
