12
SERVICE
WORK
ON
THE
CHASSIS
104
12.22

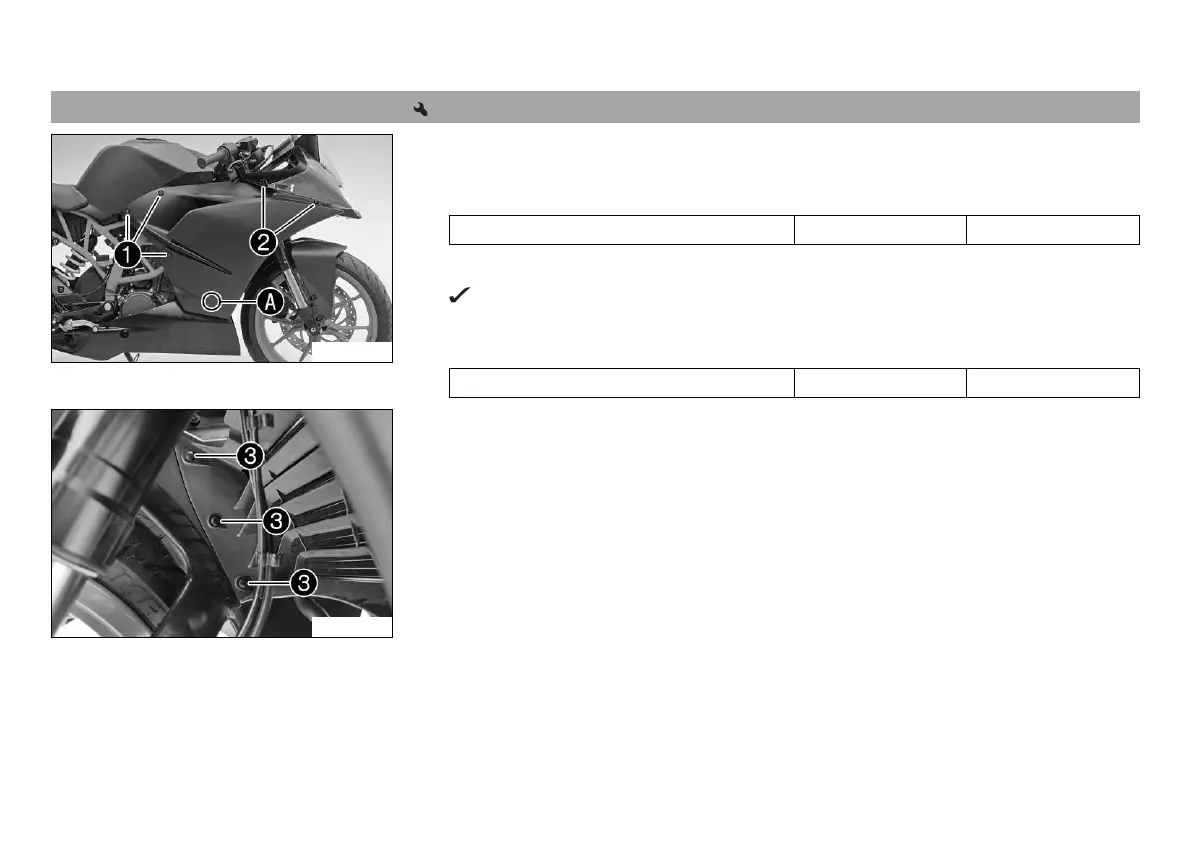

Installing
the
right
side
cover
L02178-10
–
Position
the
side
cover.
–
Mount
and
tighten
screws
.
Guideline
Screw,
side
cover
M6
7
Nm
(5.2
lbf
ft)
–
Push
on
the
side
cover
in
area
.
The
holding
lug
engages
in
the
drilled
hole
on
the
front
spoiler.
–
Mount
and
tighten
screws
.
Guideline
Screw,
side
cover
on
front
mask
M6
6
Nm
(4.4
lbf
ft)
L02185-10
–
Mount
expanding
rivet
.
105
107
