12 SERVICE WORK ON THE CHASSIS 103

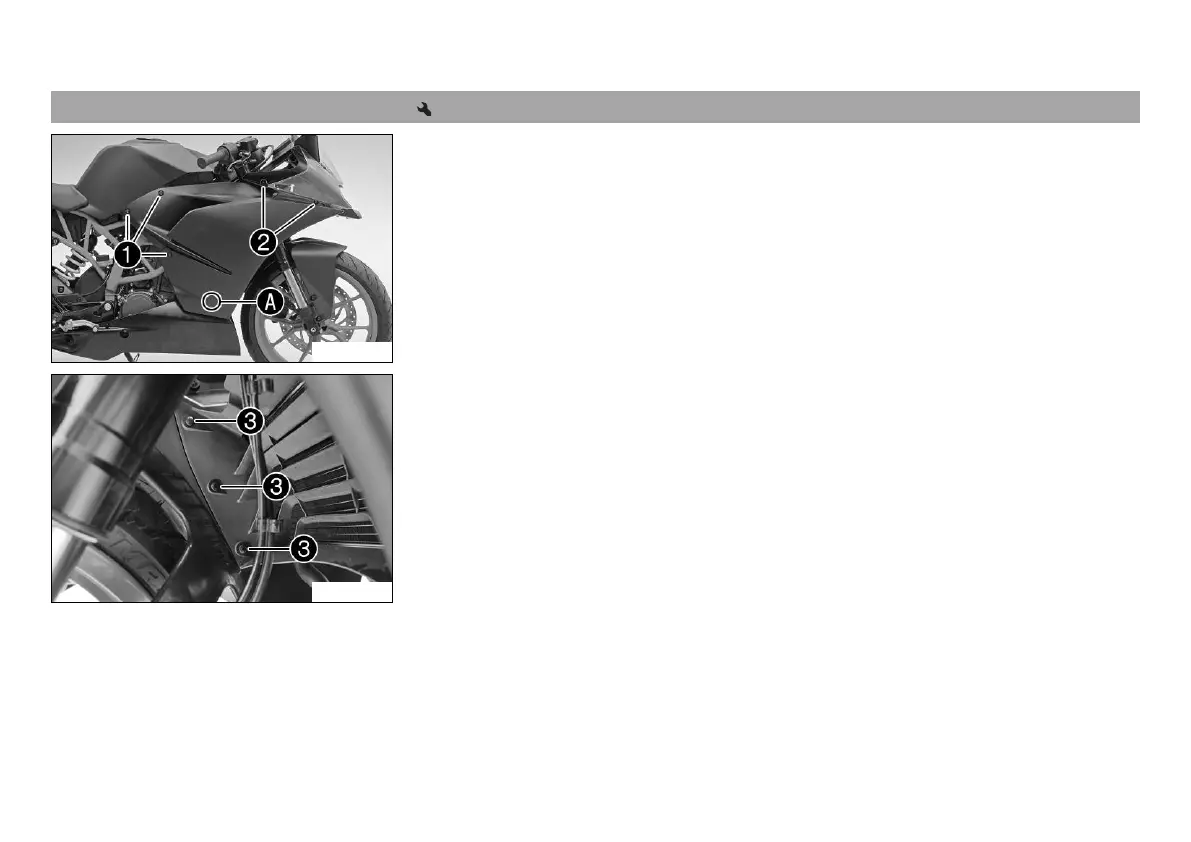

12.21 Removing the right side cover

L02178-10

–

Remove screws



.

–

Remove screws



.

–

Pull off holding lug in area



.

L02185-10

–

Remove expanding rivet



.

– Take off the side cover.
